Product Details:
|
| Standard: | ECG, SPO2, NIBP, Temp, PR/HR | Options: | EtCO2, 2-ch IBP, C.O., Suntech NIBP, Masimo SPO2 |
|---|---|---|---|
| Warranty: | 24 Months | Function: | Monitor, Diagnostic, Operation |
| Application: | Adult, Child, Neonate | Original: | P.R.China |
| Highlight: | Adult Portable Patient Monitor,ECG Portable Patient Monitor,MultiPara Medical Patient Monitor |
||
Portable Patient Monitor Used With Neonate Patient Monitor ICU Cardiac Monitor Multi Para Monitor ECG Patient Monitor

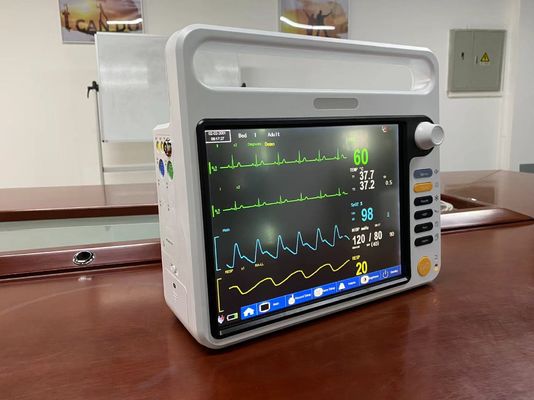

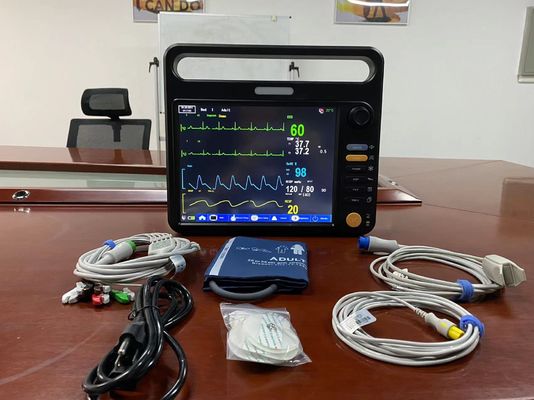

12.1" Portable Multi parameter Patient Monitor general ward and clinic monitoring bedside cardiac monitor Beta 12S
Portable Patient Monitor Quick Details:
1. 12.1 inch TFT LCD screen
2. Standard parameters ECG, SPO2, NIBP, Temp, PR/HR; Maximum 168 hours graphic and tabular trends of all parameters
3. ST Segment/Arrhythmia Analysis, Tabular Trending/Graphical Trending, Drug Calculations, OXY CRG
4. Optional parameters as Touch screen, Masimo SPO2, EtCO2, 2IBP, C.O., Suntech BP, Center monitoring system
5. Programmable NIBP cycles, Programmable alarms, Simultaneous display of all parameters, Real time waveform history, Trend information, Adult to neonatal usage, AC/DC operation
Hung-Kee Patient monitor Brochure 2022.01.pdf
Portable Patient Monitor Technical details:
Table Power Specifications
| AC Power Parameter | Specification |
| Mains power input | 100V-240V～, 50 Hz/60 Hz, |
| Power input | 50VA |
| Fuse | F2AL 250V |
| Battery Power Parameter | Specification |
| Capacity |
Lithium ion 7.4 V/2200 mAh |
| Charging time | 4 hours (to 90% battery capacity) |
| Typical operating time |
3.5 hours (with ECG, SpO2 measurementand NIBP measured every 15 minutes) |
| Charge mode | Automatic (with charge protectionfeature) when the monitor is connectedto an AC power source. |
| Discharge protection | When the monitor is powered by battery,the monitor powers off if the battery poweris almost depleted. |
( for more detailed technical data please refer to above PDF brochure)
Portable Patient Monitor Description:
This portable patient monitor designed with basic parameters like ECG, RESP, TEMP, NIBP, SpO2 and PR , and for meeting specific clinic demand extra parameters EtCO2, 2-Ch IBP, C.O., Masimo SPO2, Suntech NBIP, printer and touch are developed, offering a robust parameter platform to meet the needs of the ambulatory surgical care environment.
FAQ for Portable Patient Monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
3. Q: Could you accept OEM order?
A: Yes, OEM and ODM are our main business.
4.Q: Do you work on SKD project?
A: Yes, we have more than 14 years experience on SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
5. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
