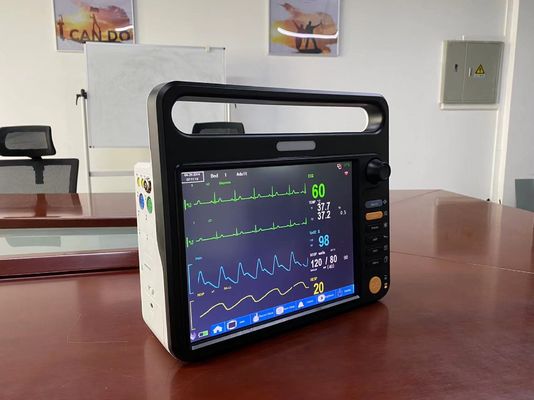

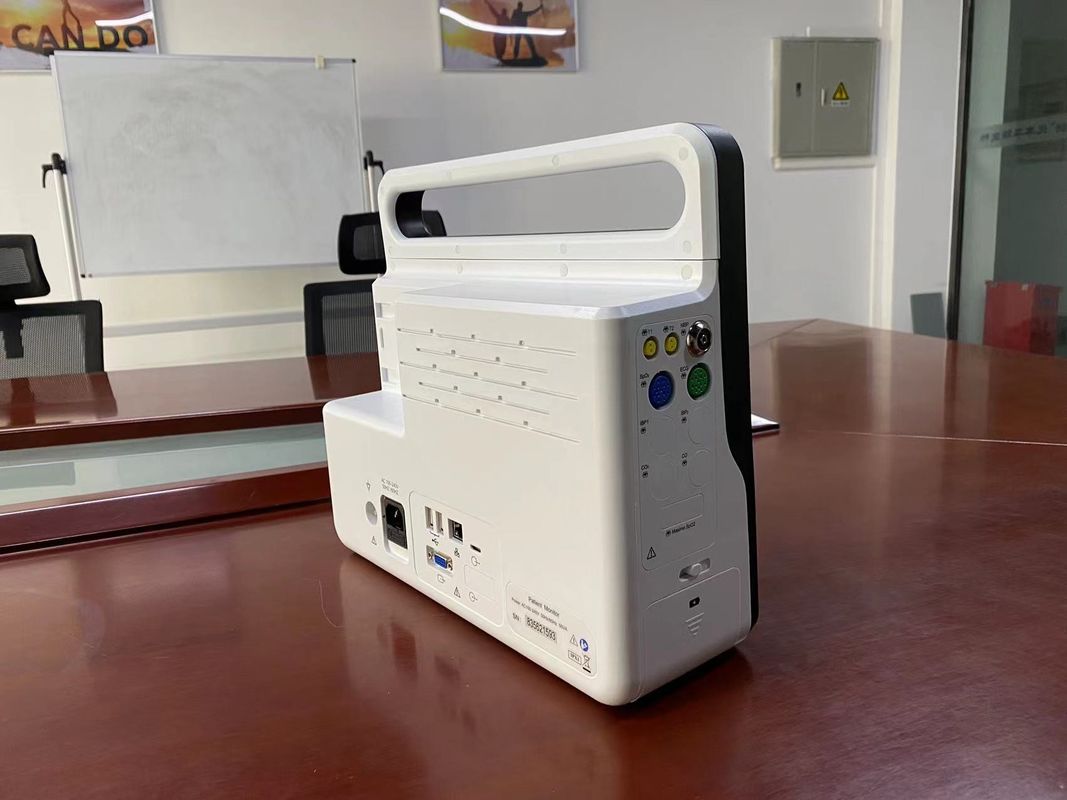

Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU

Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU
Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU
Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU

Large Image :  Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU

Product Details:
Place of Origin: P.R.China
Brand Name: Hung-Kee
Certification: IEC
Model Number: Beta 12S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Carton Size: 405.0 x 375.00 x 310.0mm (1 pcs/CTN), 0.05CBM G.W.: 5.50Kgs, N.W.: 4.00Kgs
Delivery Time: 5 to 30 days
Payment Terms: T/T
Supply Ability: 2000 units per month

Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU

Description
Standard: ECG, SPO2, NIBP, Temp, PR/HR Screen Size: 12.1 Inch TFT LCD
Packing: Export Carton Function: Monitor, Diagnostic, Operation
Net Weight: 4.0 KGs Dimension: 300.0 X 170.00 X 305.00mm
Highlight:

MultiParameter Hospital Vital Signs Monitor

,

Ambulance Hospital Vital Signs Monitor

,

ICU ambulance vital signs monitor

Multi Parameter Patient monitor with Vital Signs ECG SPO2 NIBP Temp ambulance patient monitor ICU vital signs monitor



12.1" Portable Multi parameter Patient Monitor general ward and clinic monitoring bedside cardiac monitor Beta 12S



Portable Patient Monitor Quick Details:



  1. Central Station
  2. Touch Screen
  3. IoC/BIS (12.1 inch only)
  4. Suntech NIBP/Massimo SPO2
  5. Large 12.1 “ TFT LCD display
  6. 7 Channel selectable waveforms
  7. Programmable NIBP cycles
  8. Programmable alarms
  9. Simultaneous display of all parameters

Hung-Kee Patient monitor Brochure 2022.01.pdf



Portable Patient Monitor Technical details:



Table ECG Specifications



Parameter Specifications
CMRR (common mode rejection ratio) >90 dB
HR measurement and alarm range

Adult/Pedi: 15bpm - 300bpm

Neonate: 15bpm - 350bpm

HR accuracy 1bpm or 1%, whichever is greater
ECG channel Up to 7channels
ST range -2.0 mV - +2.0 mV
ST accuracy 0.02 mV or 10%, whichever is greater
Pacemaker pulse rejection capability Meets AAMI EC 13
ECG leads 5-lead
Alarm indication Visual and audible indicators
QRS indicator Audible tone and heart symbol flashes
ECG speed 12.5 mm/s, 25.0mm/s, 50.0 mm/s
ECG gain ×0.25,×0.5,×1,×2,×4, Auto
Bandwidth

Monitor mode: 0.5 Hz - 40 Hz Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU 0

Operation mode: 1.0 Hz - 25 Hz Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU 0

Diagnostic mode: 0.05 Hz - 100 Hz Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU 0

Tall T-wave rejection capability

Exceeds ANSI/AAMI EC 13 minimum recommended

1.2 mV T-wave amplitude

Heart rate alarm response time <12s
Defibrillator protected Tested with5kV
Recovery time following defibrillation < 5s
Signal delay 0.5s
Auxiliary current (leads off detection)

Active electrode:< 100nA

Reference electrode: < 900 nA

Heart ratemeter accuracy and response to irregular rhythm

Ventricular bigeminy: 80 bpm±2bpm

Slow alternating ventricular bigeminy: 60 bpm ±2bpm

Rapid alternating ventricular bigeminy: 120 bpm ±2bpm

Bidirectional systoles: 90 bpm±2bpm

Response time of heart rate meter to change in heart rate

HR change from 80 bpm to 120 bpm: ≤ 8 s maximum

HR change from 80 bpm to 40 bpm: ≤ 10 s maximum

Time to alarm for tachycardia

Vent tachycardia (1 mVpp, 206 bpm):

Gain 0.5, range 6.5 to 8.4s, average 7.2s

Gain 1.0, range 6.1 to 6.9s, average 6.5s

Gain 2.0, range 5.9 to 6.7s, average 6.3s

Vent tachycardia (2 mVpp, 195 bpm):

Gain 0.5, range 5.4 to 6.2s, average 5.8s

Gain 1.0, range 5.7 to 6.5s, average 6.1s

Gain 2.0, range 5.3 to 6.1s, average 5.7s

ECG analog output 0.67 Hz - 40 Hz
Time to alarm for high heart rate ≤10s
Time to alarm for low heart rate ≤10s




( for more detailed technical data please refer to above PDF brochure)



Portable Patient Monitor Description:



The Beta 12S portable patient monitor is part of Hung-Kee’s premier patient monitoring solution designed to enhance patient care and support timely and accurate clinical assessment across general ward, daily checking and clinic environments. This portable patient monitor, power supplied by 100-240V~,50/60Hz, adopts 12.1'' color TFT LCD displaying real-time date and waveform. It can synchronously display seven-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. Maximum 64 units portable patient monitor could be connected to the central monitoring system via wire network to form a network monitoring system.





Portable Patient Monitor Standard Accessories:



5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord



Portable Patient Monitor Optional Accessories:



Aluminum trolley, wall mount stand



Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU 3  Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU 4  Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU 5



Company Profile:



Hung-kee (China) Electronic Technology Co.,Ltd mainly focus on R&D, manufacturing and marketing of human and veterinary caring products.

Since year 2003, Thanks for its strong R&D team with more than 20-year working experience in medical industry, we have successfully developed the world’s most cost-effective and good quality medical products. As targeting becoming the most competitive medical supplier in the world, Hung-Kee's portfolio of coveted medical goods – human caring medical products and veterinary caring products -- propelled it past most competitors of its kind in China to become the world's most valuable technology company. Hung-Kee has built up two separated R&D teams focus on software ( 8 members, led by Mr.Kwok with 30 years software development experience) and hardware ( 5 members, led by Mr.Sheng with 19 years hardware development experience) development. By 2021, the company has 10 practical technology patents and 5 appearance patents, and at least 2 new patents will be obtained every year.



At the moment, we have developed 8 products lines including:

1) Multi-parameter patient monitor: portable patient monitor, modular patient monitor, cardiac patient monitor, neonate patient monitor, ICU cardiac monitor, 8 inch / 12.1 inch / 15 inch monitor

2) Veterinary multi-parameter Monitor: 8 inch/ 12.1 inch/ 15 inch, standard and semi-modular veterinary monitor; handheld SPO2 & EtCO2 monitor

3) Vital sign monitors: Desktop vital signs monitor, OLED Fingertip pulse oximeter, Handheld pulse oximeter, Handheld EtCO2 & SPO2 monitor, Cardio-Output Monitor, Depth of Anesthesia Monitor or Cerebral State Index, Intracranial pressure monitor, rSO2 or Cerebral Oximetry or NIRS

4) Gas detector: Mainstream EtCO2 sensor, sidestream CO2 module, Anesthesia main/side stream Multi-Gas modules

5) OB&GYN devices: Ultrasound Fetal Doppler

6) Respiratory Support devices: Portable Oxygen Concentrator; medical 5L Oxygen Concentrator

7) Emergency Devices: Automatic tourniquet system (A.T.S.)

8) Telemedicine: Remote Medical Caring Cloud Platform with bedside monitoring terminal

More new items will come…….



Hung-Kee's target is to be a professional medical devices supplier in fields of OEM, ODM and SKD services, and to be your loyal and reliable partner in a long run basis.



More new items will come in near future with fully Hung-Kee owned IP, and more added value will be produced to our esteemed partners around the world.



Hung-Kee's staffs are proud of its 19 years development, every steps presents Hung-Kee's determination to be the world’s No.1 cost-effective high quality medical products supplier.



Factory tour:

Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU 6



R&D:

Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU 7



Quality Certificate:

Multi Parameter Hospital Vital Signs Monitor For Ambulance ICU 8





Customer Service:

  1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  2. Your inquiry related to our products or price will be replied in 24hrs.
  3. Keep informing our customer production process.
  4. Two-year warranty to main unit and one-year warranty to accessories.
  5. We will provide online technical support for the whole life.





FAQ for Portable Patient Monitor:



1.Q: How long is the warranty time?
A: 24 Months


2. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.


3. Q: Could you accept OEM order?
A: Yes, OEM and ODM are our main business.



4.Q: Do you work on SKD project?

A: Yes, we have more than 14 years experience on SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.


5. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
