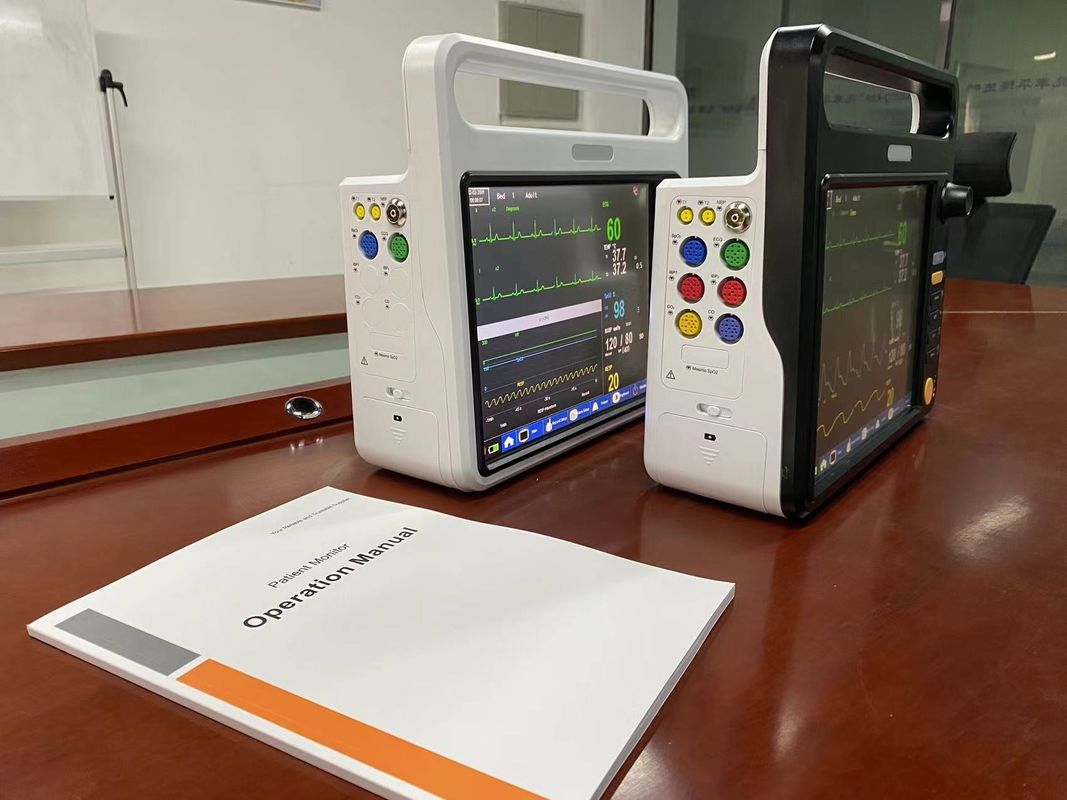

Neonate Patient Vitals Monitor , Portable Multiparameter Monitor For Diagnostic

Neonate Patient Vitals Monitor , Portable Multiparameter Monitor For Diagnostic
Neonate Patient Vitals Monitor , Portable Multiparameter Monitor For Diagnostic

Large Image :  Neonate Patient Vitals Monitor , Portable Multiparameter Monitor For Diagnostic

Product Details:
Place of Origin: P.R.China
Brand Name: Hung-Kee
Certification: IEC
Model Number: Beta 12S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Carton Size: 405.0 x 375.00 x 310.0mm (1 pcs/CTN), 0.05CBM G.W.: 5.50Kgs, N.W.: 4.00Kgs
Delivery Time: 5 to 30 days
Payment Terms: T/T
Supply Ability: 2000 units per month

Neonate Patient Vitals Monitor , Portable Multiparameter Monitor For Diagnostic

Description
Standard: ECG, SPO2, NIBP, Temp, PR/HR Options: EtCO2, 2-ch IBP, C.O., Suntech NIBP, Masimo SPO2
Warranty: 24 Months Screen Size: 12.1 Inch TFT LCD
Packing: Export Carton Function: Monitor, Diagnostic, Operation
Application: Adult, Child, Neonate Original: P.R.China
Highlight:

Neonate Patient Vitals Monitor

,

Multiparameter Patient Vitals Monitor

,

Diagnostic Portable Multiparameter Monitor

Multi parameter Patient monitor used with neonate patient monitor cardiac patient monitor portable patient monitor



12.1" Portable Multi parameter Patient Monitor general ward and clinic monitoring bedside cardiac monitor Beta 12S





Portable Patient Monitor Quick Details:



1. 12.1 inch TFT LCD screen, 6 standard parameters

2. Standard parameters ECG, SPO2, NIBP, Temp, PR/HR

3. Maximum 168 hours graphic and tabular trends of all parameters;

4. ST Segment/Arrhythmia Analysis, Tabular Trending/Graphical Trending, Drug Calculations, OXY CRG

5. Optional parameters as Touch screen, Masimo SPO2, EtCO2, 2IBP, C.O., Suntech BP, Center monitoring system

6. 7 Channel selectable waveforms, Programmable NIBP cycles, Programmable alarms, Simultaneous display of all parameters, Real time waveform history, Trend information, Adult to neonatal usage, AC/DC operation



Hung-Kee Patient monitor Brochure 2022.01.pdf



Portable Patient Monitor Technical details:

Table IBP Specifications



Parameter Specification
IBP range

ART 0 - 300 mmHg

PA -6 - 120 mmHg

CVP -10 - 40 mmHg

RAP -10 - 40 mmHg

LAP -10 - 40 mmHg

ICP -10 - 40 mmHg

IBP accuracy 1 mmHg or 2%, whichever is greater
Unit mmHg or kPa
Sampling rate 62.5 times per second
Waveform speed 6.25 mm/s, 12.5 mm/s, 25.0 mm/s
Transducer sensitivity (Intellivue:Input sensitivity) 5 uV/V/mmHg
Resolution 1 mmHg (0.13 kPa)
Transducer type Disposable
Updating time Approximately 1 second
Alarm delay <10s




( for more detailed technical data please refer to above PDF brochure)



Portable Patient Monitor Description:



This portable patient monitor designed with standard parameters as ECG, RESP, TEMP, NIBP, SpO2 and PR , and extra parameters as CO2, 2-Ch IBP, C.O., Masimo SPO2, Suntech NBIP, printer and touch are available for meeting specific demand, offering a robust parameter platform to meet the needs of the ambulatory surgical care environment.





Portable Patient Monitor Standard Accessories:



5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord



Portable Patient Monitor Optional Accessories:



Aluminum trolley, wall mount stand



Neonate Patient Vitals Monitor , Portable Multiparameter Monitor For Diagnostic 0       Neonate Patient Vitals Monitor , Portable Multiparameter Monitor For Diagnostic 1



Company Profile:



Hung-kee (China) Electronic Technology Co.,Ltd mainly focus on R&D, manufacturing and marketing of human and veterinary caring products.

Since year 2003, Thanks for its strong R&D team with more than 20-year working experience in medical industry, we have successfully developed the world’s most cost-effective and good quality medical products. As targeting becoming the most competitive medical supplier in the world, Hung-Kee's portfolio of coveted medical goods – human caring medical products and veterinary caring products -- propelled it past most competitors of its kind in China to become the world's most valuable technology company. Hung-Kee has built up two separated R&D teams focus on software ( 8 members, led by Mr.Kwok with 30 years software development experience) and hardware ( 5 members, led by Mr.Sheng with 19 years hardware development experience) development. By 2021, the company has 10 practical technology patents and 5 appearance patents, and at least 2 new patents will be obtained every year.



At the moment, we have developed 8 products lines including:

1) Multi-parameter patient monitor: portable patient monitor, modular patient monitor, cardiac patient monitor, neonate patient monitor, ICU cardiac monitor, 8 inch / 12.1 inch / 15 inch monitor

2) Veterinary multi-parameter Monitor: 8 inch/ 12.1 inch/ 15 inch, standard and semi-modular veterinary monitor; handheld SPO2 & EtCO2 monitor

3) Vital sign monitors: Desktop vital signs monitor, OLED Fingertip pulse oximeter, Handheld pulse oximeter, Handheld EtCO2 & SPO2 monitor, Cardio-Output Monitor, Depth of Anesthesia Monitor or Cerebral State Index, Intracranial pressure monitor, rSO2 or Cerebral Oximetry or NIRS

4) Gas detector: Mainstream EtCO2 sensor, sidestream CO2 module, Anesthesia main/side stream Multi-Gas modules

5) OB&GYN devices: Ultrasound Fetal Doppler

6) Respiratory Support devices: Portable Oxygen Concentrator; medical 5L Oxygen Concentrator

7) Emergency Devices: Automatic tourniquet system (A.T.S.)

8) Telemedicine: Remote Medical Caring Cloud Platform with bedside monitoring terminal

More new items will come…….



Hung-Kee's target is to be a professional medical devices supplier in fields of OEM, ODM and SKD services, and to be your loyal and reliable partner in a long run basis.



More new items will come in near future with fully Hung-Kee owned IP, and more added value will be produced to our esteemed partners around the world.



Hung-Kee's staffs are proud of its 19 years development, every steps presents Hung-Kee's determination to be the world’s No.1 cost-effective high quality medical products supplier.



Factory tour:

Neonate Patient Vitals Monitor , Portable Multiparameter Monitor For Diagnostic 2



R&D:

Neonate Patient Vitals Monitor , Portable Multiparameter Monitor For Diagnostic 3



Quality Certificate:



Neonate Patient Vitals Monitor , Portable Multiparameter Monitor For Diagnostic 4



Customer Service:

  1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  2. Your inquiry related to our products or price will be replied in 24hrs.
  3. Keep informing our customer production process.
  4. Two-year warranty to main unit and one-year warranty to accessories.
  5. We will provide online technical support for the whole life.





FAQ for Portable Patient Monitor:



1.Q: How long is the warranty time?
A: 24 Months


2. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.


3. Q: Could you accept OEM order?
A: Yes, OEM and ODM are our main business.



4.Q: Do you work on SKD project?

A: Yes, we have more than 14 years experience on SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.


5. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.



6. Q: How to proceed an order for portable patient monitor or other medical equipment?

A: 1st let us know your requirements or application.

2nd We quote according to your requirements or our suggestions.

3rd customer arrange payment for formal order.

4th We arrange the production.
