Product Details:
|
| Standard: | ECG, SPO2, NIBP, Temp, PR/HR | Options: | EtCO2, 2-ch IBP, C.O., Suntech NIBP, Masimo SPO2 |
|---|---|---|---|
| Warranty: | 24 Months | Screen Size: | 12.1 Inch TFT LCD |
| Packing: | Export Carton | Original: | P.R.China |
| Function: | Monitor, Diagnostic, Operation | SKD: | Accepted |
| Highlight: | Vital Signs ICU Cardiac Monitor,Patient ICU Cardiac Monitor,12.1Inch Patient Monitoring Equipment |
||
Portable patient monitor neonate patient monitor multi parameter patient monitor ICU cardiac monitor ICU vital signs

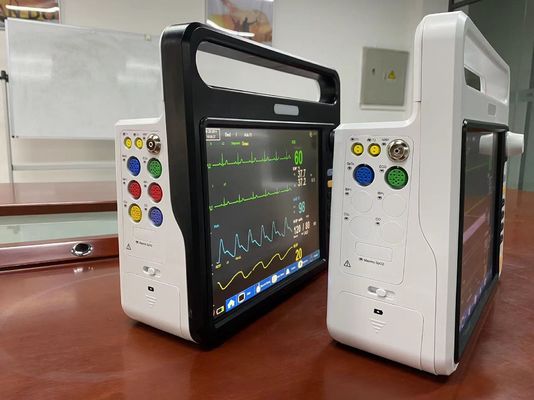

12.1" Portable Multi parameter Patient Monitor general ward and clinic monitoring bedside cardiac monitor Beta 12S
Portable Patient Monitor Quick Details:
1. 12.1 inch TFT LCD screen, 6 standard parameters
2. Standard parameters ECG, SPO2, NIBP, Temp, PR/HR
3. Maximum 168 hours graphic and tabular trends of all parameters;
4.ST Segment/Arrhythmia Analysis, Tabular Trending/Graphical Trending, Drug Calculations, OXY CRG
5. Maximum 20 hours continual working time (optional)
6. Touch screen (optional)
7. Masimo SPO2 module (optional)
8. EtCO2 module (optional)
9. 2IPB module (optional)
10. CO module (optional)
11. Suntech BP module (optional)
12. Printer (optional)
Hung-Kee Patient monitor Brochure 2022.01.pdf
Portable Patient Monitor Technical details:
Table NIBP Specifications
| Parameter | Specification |
| Measuring method | Oscillometric method |
| Measuring parameter | SYS, DIA, MAP, |
| Unit | mmHg or kPa |
| Work mode | Manual, Auto, Stat |
| Cycle time | 1-5,10, 15, 30, 60, 90, 120, 180, 240, 480 minutes |
| SYS range |
Adult: 40 mmHg -270mmHg (5.3 kPa - 36.0kPa) Pediatric: 40 mmHg - 200mmHg (5.3kPa - 26.7kPa) Neonate: 40 mmHg - 135mmHg (5.3kPa - 18.0kPa) |
| DIA range |
Adult: 10mmHg - 210mmHg (1.3kPa - 28.0kPa) Pediatric: 10 mmHg - 150mmHg (1.3 kPa - 20.0kPa) Neonate: 10mmHg -100mmHg (1.3kPa -13.3kPa) |
| MAP range |
Adult: 20 mmHg -230mmHg (2.7 kPa -30.7kPa) Pediatric: 20 mmHg -165mmHg (2.7 kPa -22.0kPa) Neonate: 20mmHg -110mmHg (2.7kPa -14.7kPa) |
| NIBP accuracy | ±0.80kPa(±8mmHg) |
| Cuff pressure range |
Adult/pediatric: 0 mmHg - 300 mmHg (0 kPa - 40.0 kPa) Neonate: 0 mmHg - 150 mmHg (0 kPa - 20.0 kPa) |
| Initial inflation pressure | Adult: 160 mmHg (21.3kPa) Pediatric: 140 mmHg (18.6 kPa) Neonate: 100 mmHg (13.3 kPa) |
| Deflation pressure | 30 mmHg above the last measured systolic value |
| Alarm delay | <10s |
( for more detailed technical data please refer to above PDF brochure)
Portable Patient Monitor Description:
This portable patient monitor designed with standard parameters as ECG, RESP, TEMP, NIBP, SpO2 and PR , and extra parameters as CO2, 2-Ch IBP, C.O., Masimo SPO2, Suntech NBIP, printer and touch are available for meeting specific demand. You can view measurement trend graphs and alarming events to help you identify changes in the patient's physiological condition. Maximum 64 units portable patient monitor could be connected to the central monitoring system via wire network to form a network monitoring system.
Company Profile:
Hung-kee (China) Electronic Technology Co.,Ltd mainly focus on R&D, manufacturing and marketing of human and veterinary caring products.
Since year 2003, Thanks for its strong R&D team with more than 20-year working experience in medical industry, we have successfully developed the world’s most cost-effective and good quality medical products. As targeting becoming the most competitive medical supplier in the world, Hung-Kee's portfolio of coveted medical goods – human caring medical products and veterinary caring products -- propelled it past most competitors of its kind in China to become the world's most valuable technology company. Hung-Kee has built up two separated R&D teams focus on software ( 8 members, led by Mr.Kwok with 30 years software development experience) and hardware ( 5 members, led by Mr.Sheng with 19 years hardware development experience) development. By 2021, the company has 10 practical technology patents and 5 appearance patents, and at least 2 new patents will be obtained every year.
At the moment, we have developed 8 products lines including:
1) Multi-parameter patient monitor: portable patient monitor, modular patient monitor, cardiac patient monitor, neonate patient monitor, ICU cardiac monitor, 8 inch / 12.1 inch / 15 inch monitor
2) Veterinary multi-parameter Monitor: 8 inch/ 12.1 inch/ 15 inch, standard and semi-modular veterinary monitor; handheld SPO2 & EtCO2 monitor
3) Vital sign monitors: Desktop vital signs monitor, OLED Fingertip pulse oximeter, Handheld pulse oximeter, Handheld EtCO2 & SPO2 monitor, Cardio-Output Monitor, Depth of Anesthesia Monitor or Cerebral State Index, Intracranial pressure monitor, rSO2 or Cerebral Oximetry or NIRS
4) Gas detector: Mainstream EtCO2 sensor, sidestream CO2 module, Anesthesia main/side stream Multi-Gas modules
5) OB&GYN devices: Ultrasound Fetal Doppler
6) Respiratory Support devices: Portable Oxygen Concentrator; medical 5L Oxygen Concentrator
7) Emergency Devices: Automatic tourniquet system (A.T.S.)
8) Telemedicine: Remote Medical Caring Cloud Platform with bedside monitoring terminal
More new items will come…….
Hung-Kee's target is to be a professional medical devices supplier in fields of OEM, ODM and SKD services, and to be your loyal and reliable partner in a long run basis.
More new items will come in near future with fully Hung-Kee owned IP, and more added value will be produced to our esteemed partners around the world.
Hung-Kee's staffs are proud of its 19 years development, every steps presents Hung-Kee's determination to be the world’s No.1 cost-effective high quality medical products supplier.
