Modular Portable Multi Parameter Patient Monitor With ECG SPO2 NIBP

Modular Portable Multi Parameter Patient Monitor With ECG SPO2 NIBP
Modular Portable Multi Parameter Patient Monitor With ECG SPO2 NIBP

Large Image :  Modular Portable Multi Parameter Patient Monitor With ECG SPO2 NIBP

Product Details:
Place of Origin: P.R.China
Brand Name: Hung-Kee
Certification: IEC
Model Number: Beta 15S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Carton Size: 490.0 x 395.00 x 335.00mm (1 pcs/CTN), 0.065CBM G.W.: 6.80Kgs, N.W.: 5.00Kgs
Delivery Time: 5 to 30 days
Payment Terms: T/T
Supply Ability: 2000 units per month

Modular Portable Multi Parameter Patient Monitor With ECG SPO2 NIBP

Description
Standard: ECG, SPO2, NIBP, Temp, PR/HR Packing: Export Carton
Function: Monitor, Diagnostic, Operation Application: Adult, Pediatric, Neonate
OEM/ODM: Accepted SKD: Accepted
R&D: Customized Service Delivery Time: 5 To 30 Days
Highlight:

SPO2 Multi Parameter Patient Monitor

,

ECG Multi Parameter Patient Monitor

,

Portable nibp spo2 monitor

Multi Parameter Patient Monitor Neonate Patient Monitor ICU Cardiac Monitor Modular Patient Monitor Portable Monitor



15" Portable Multi-parameter Patient Monitor general ward and clinic monitoring cardiac monitor Beta 15S​





Multi Parameter Patient Monitor Quick Details:



Standard Functions:

  1. 3-5 Lead ECG, NIBP, SPO2, 2-Temp
  2. Priority Alarms
  3. Tabular Trending/Graphical Trending
  4. Drug Calculations
  5. OXY CRG
  6. Ethernet/RS232



Optional Functions:

  1. Central Station
  2. Touch Screen
  3. Printer
  4. Anesthetic Gas ( AG)
  5. 12 leads ECG
  6. Suntech NIBP/Massimo SPO2



Extra Functions:

  1. Simultaneous display of all parameters
  2. Real time waveform history
  3. Trend information
  4. Adult to neonatal usage

5. AC/DC operation





Hung-Kee Patient monitor Brochure 2022.01.pdf



Multi Parameter Patient Monitor Technical details:



Display size 15''color TFT LCD
Testing standards IEC
ECG Lead Mode 3/5-lead
Lead Selection I , II , III , AVR, AVL, AVF, V
ECG sensitivity > 200 µV (peak-peak date )
HR Range 15 ~ 300 bpm
Common-mode Rejection Ration

Diagnostic mode > 90 dB

Monitoring mode > 100 dB

Operation mode > 100 dB

Electrode polarization voltage range ±300mV
Range for Respiration Adult 0~120rpm
Pediatric and Neonatal 0~150rpm
Apnea Alarm 10 ~ 40 S
SpO2 Measuring Range 0 ~ 100 %
Pulse Rate Range 20~300bpm
NIBP measurement method Pulse wave oscillation
NIBP Measuring and Alarm Range 0~300mmHg
NIBP working mode Manual / auto
TEMP Measuring and Alarm Range 0 ~ 50° C
Temp Channel qty 2 channels




( for more detailed technical data please refer to above PDF brochure)

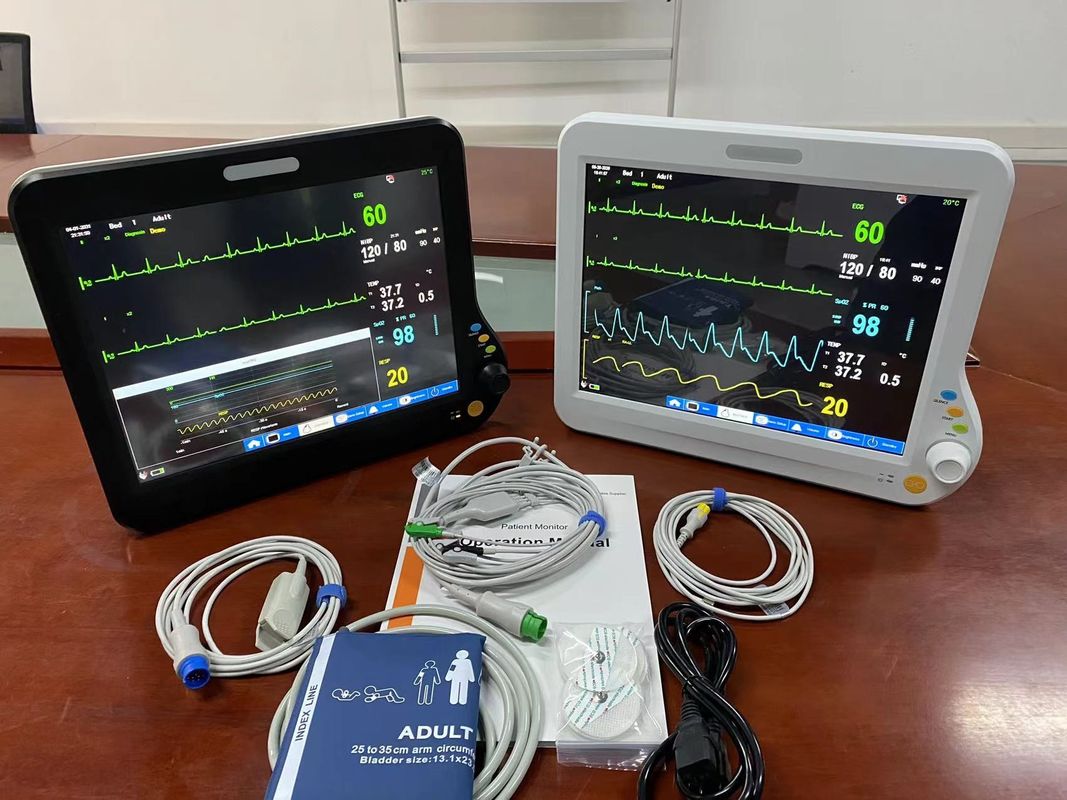

Multi Parameter Patient Monitor Description:



This portable patient monitor, power supplied by 100-240V~,50/60Hz, adopts 15'' color TFT LCD displaying real-time date and waveform. The Beta 15S multi parameter patient monitor paired with the multi-gas module, manually identifies and measures the inspired and expired values of CO2, N2O and 5 anesthetic agents providing a compact, yet powerful OR monitoring solution.





Multi Parameter Patient Monitor Standard Accessories:



5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord



Multi Parameter Patient Monitor Optional Accessories:



Aluminum trolley, wall mount stand



Modular Portable Multi Parameter Patient Monitor With ECG SPO2 NIBP 0   Modular Portable Multi Parameter Patient Monitor With ECG SPO2 NIBP 1



Company Profile:



Hung-kee (China) Electronic Technology Co.,Ltd mainly focus on R&D, manufacturing and marketing of human and veterinary caring products.

Since year 2003, Thanks for its strong R&D team with more than 20-year working experience in medical industry, we have successfully developed the world’s most cost-effective and good quality medical products. As targeting becoming the most competitive medical supplier in the world, Hung-Kee's portfolio of coveted medical goods – human caring medical products and veterinary caring products -- propelled it past most competitors of its kind in China to become the world's most valuable technology company. Hung-Kee has built up two separated R&D teams focus on software ( 8 members, led by Mr.Kwok with 30 years software development experience) and hardware ( 5 members, led by Mr.Sheng with 19 years hardware development experience) development. By 2021, the company has 10 practical technology patents and 5 appearance patents, and at least 2 new patents will be obtained every year.



At the moment, we have developed 8 products lines including:

1) Multi-parameter patient monitor: portable patient monitor, modular patient monitor, cardiac patient monitor, neonate patient monitor, ICU cardiac monitor, 8 inch / 12.1 inch / 15 inch monitor

2) Veterinary multi-parameter Monitor: 8 inch/ 12.1 inch/ 15 inch, standard and semi-modular veterinary monitor; handheld SPO2 & EtCO2 monitor

3) Vital sign monitors: Desktop vital signs monitor, OLED Fingertip pulse oximeter, Handheld pulse oximeter, Handheld EtCO2 & SPO2 monitor, Cardio-Output Monitor, Depth of Anesthesia Monitor or Cerebral State Index, Intracranial pressure monitor, rSO2 or Cerebral Oximetry or NIRS

4) Gas detector: Mainstream EtCO2 sensor, sidestream CO2 module, Anesthesia main/side stream Multi-Gas modules

5) OB&GYN devices: Ultrasound Fetal Doppler

6) Respiratory Support devices: Portable Oxygen Concentrator; medical 5L Oxygen Concentrator

7) Emergency Devices: Automatic tourniquet system (A.T.S.)

8) Telemedicine: Remote Medical Caring Cloud Platform with bedside monitoring terminal

More new items will come…….



Hung-Kee's target is to be a professional medical devices supplier in fields of OEM, ODM and SKD services, and to be your loyal and reliable partner in a long run basis.



More new items will come in near future with fully Hung-Kee owned IP, and more added value will be produced to our esteemed partners around the world.



Hung-Kee's staffs are proud of its 19 years development, every steps presents Hung-Kee's determination to be the world’s No.1 cost-effective high quality medical products supplier.



Factory tour:

Modular Portable Multi Parameter Patient Monitor With ECG SPO2 NIBP 2



R&D:

Modular Portable Multi Parameter Patient Monitor With ECG SPO2 NIBP 3



Quality Certificate:

Modular Portable Multi Parameter Patient Monitor With ECG SPO2 NIBP 4





Customer Service:

  1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  2. Your inquiry related to our products or price will be replied in 24hrs.
  3. Keep informing our customer production process.
  4. Two-year warranty to main unit and one-year warranty to accessories.
  5. We will provide online technical support for the whole life.





FAQ for Portable Patient Monitor:



1.Q: How long is the warranty time?
A: 24 Months


2. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.


3.Q: Do you work on OEM and SKD project?

A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.


4. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.



5. Q: How to proceed an order for portable patient monitor or other medical equipment?

A: 1st let us know your requirements or application.

2nd We quote according to your requirements or our suggestions.

3rd customer arrange payment for formal order.

4th We arrange the production.
