Product Details:
|
| Screen Size: | 12.1 Inch TFT LCD | OEM/SKD: | Accepted |
|---|---|---|---|
| Standard: | ECG, NIBP, SPO2, 2Temp, PR/HR | Option1: | AG, IoC, 12 Leads ECG Module, Suntech NIBP |
| Power: | 100 ~240V, 50/60Hz | Language: | English, Russia, Spanish, French, Polish, Portuguese, Turkey |
| Origin: | P.R. China | Option 2: | 2IBP, EtCO2, C.O., Masimo SPO2 |
| Dimension: | 300.0 X 170.00 X 305.00mm | Net Weight: | 4.3 KGs |
| Highlight: | ICU Electronic Vital Sign Monitors,12.1Inch Electronic Vital Sign Monitors,Cardiac vital signs monitor hospital |
||
Modular patient monitor multi parameter patient monitor ICU cardiac monitor portable patient monitor

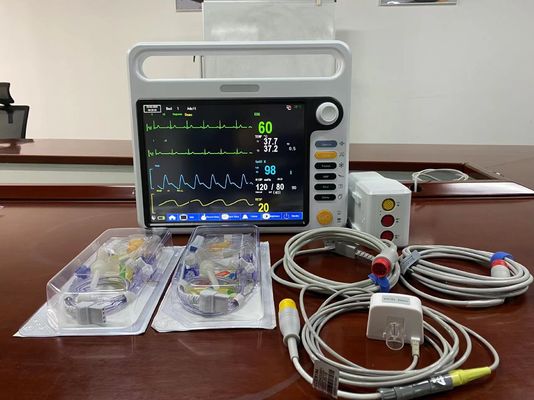

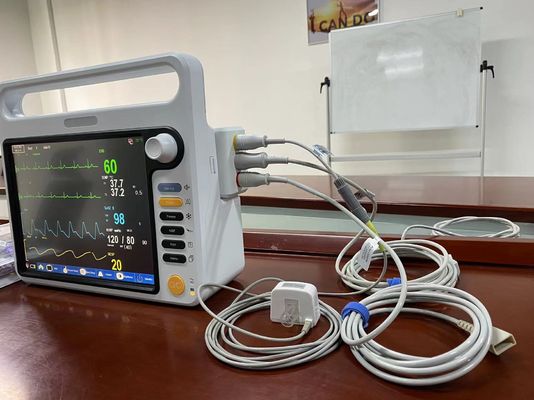

12.1" Portable Modular Patient Monitor general ward and clinic monitoring cardiac patient monitor Beta 12Plus
Modular Patient Monitor Quick Details:
1. 12.1 inch TFT LCD screen, modular monitor, 6 standard parameters
2. 32-levels sound volume adjustment
3. 10-levels brightness adjustment
4. Maximum 168 hours graphic and tabular trends of all parameters;
5. ST Segment/Arrhythmia Analysis, Tabular Trending/Graphical Trending, Drug Calculations, OXY CRG
6. Maximum 20 hours continual working time (optional)
7. Touch screen (optional)
8. Masimo SPO2 module (optional)
9. EtCO2 module (optional)
10. 2IPB module (optional)
11. C.O. module (optional)
Hung-Kee Patient monitor Brochure 2022.01.pdf
Modular Patient Monitor Technical details:
| Display size | 12.1''color TFT LCD |
| ECG sensitivity | > 200 µV (peak-peak date ) |
| Lead selection |
Standard 3 lead or 5 lead cable 3 lead RA,LA,LL,lead method:I,II,III 5-lead RA,LA,LL,RL,V,lead method:I,II,III,aVR,aVL,aVF,V |
| Gain | ´0.25,´0.5,´1,´2,auto |
| ECG impedance | > 5 (Megohm) |
| ECG bandwidth |
Diagnostic mode 0.05～130Hz Monitoring mode 0.5～40Hz Operation mode 1～20Hz |
| Pacemaker pulse detection |
It can test the following pace-maker pulse : Extent : ±2 mV ～ ±700mV width: 0.1ms ～ 2ms Rise time : 10µs～100µs |
| ST measurement |
Range: -2.5mV ～ +2.5mV Measurement accuracy: within -0.8 mV～+0.8mV, the tolerance is ±0.02mVor ±10% Without this range, there is no definition |
| Range for Respiration | Adult 0~120rpm Pediatric and Neonatal 0~150rpm Apnea Alarm 10 ~ 40 S |
| Recovery time of base line | After Defibrillation< 3 second |
| SpO2 Measuring Range | 0 ~ 100 % |
| NIBP measurement method | Pulse wave oscillation |
| NIBP working mode | Pulse wave oscillation |
| TEMP Measuring and Alarm Range | 0 ~ 50° C |
| Temp channel qty | 2 channels |
| EtCO2 measurement | Side stream or main stream |
| EtCO2 measuring range |
CO2: 0-99 INS: 0-99 AWRR:0-99 |
| IBP channel’s qty | 2 channels |
| IBP pressure name | ART, PA, CVP, RAP, LAP, ICP, P1, P2. |
| IBP pressure measuring range |
ART 0 ～ 300 mmHg PA -6 ～ 120 mmHg CVP -50 ～ 40 mmHg RAP -50 ～ 40 mmHg LAP -50 ～ 40 mmHg ICP -50 ～ 40 mmHg P1, P2 -50 ～ 300 mmHg |
( for more detailed technical data please refer to above PDF brochure)
Modular Patient Monitor Description:

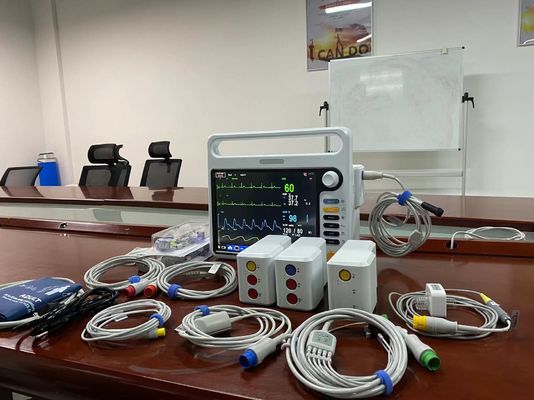

The Beta 12Plus portable patient monitor is part of Hung-Kee’s premier patient monitoring solution designed to enhance patient care and support timely and accurate clinical assessment across general ward, daily checking and clinic environments. The Beta 12Plus offers an optional plug-and-play module structure for more advanced monitoring functions such as 2-ch IBP, EtCO2, aiding clinicians to identify signs of patient deterioration due to respiratory distress, and other options like 2-ch IBP, C.O., Suntech BP and Masimo SPO2 modules.
Modular Patient Monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
Modular Patient Monitor Optional Accessories:
Aluminum trolley, wall mount stand
Company Profile:
Hung-kee (China) Electronic Technology Co.,Ltd mainly focus on R&D, manufacturing and marketing of human and veterinary caring products.
Since year 2003, Thanks for its strong R&D team with more than 20-year working experience in medical industry, we have successfully developed the world’s most cost-effective and good quality medical products. As targeting becoming the most competitive medical supplier in the world, Hung-Kee's portfolio of coveted medical goods – human caring medical products and veterinary caring products -- propelled it past most competitors of its kind in China to become the world's most valuable technology company. Hung-Kee has built up two separated R&D teams focus on software ( 8 members, led by Mr.Kwok with 30 years software development experience) and hardware ( 5 members, led by Mr.Sheng with 19 years hardware development experience) development. By 2021, the company has 10 practical technology patents and 5 appearance patents, and at least 2 new patents will be obtained every year.
At the moment, we have developed 8 products lines including:
1) Multi-parameter patient monitor: portable patient monitor, modular patient monitor, cardiac patient monitor, neonate patient monitor, ICU cardiac monitor, 8 inch / 12.1 inch / 15 inch monitor
2) Veterinary multi-parameter Monitor: 8 inch/ 12.1 inch/ 15 inch, standard and semi-modular veterinary monitor; handheld SPO2 & EtCO2 monitor
3) Vital sign monitors: Desktop vital signs monitor, OLED Fingertip pulse oximeter, Handheld pulse oximeter, Handheld EtCO2 & SPO2 monitor, Cardio-Output Monitor, Depth of Anesthesia Monitor or Cerebral State Index, Intracranial pressure monitor, rSO2 or Cerebral Oximetry or NIRS
4) Gas detector: Mainstream EtCO2 sensor, sidestream CO2 module, Anesthesia main/side stream Multi-Gas modules
5) OB&GYN devices: Ultrasound Fetal Doppler
6) Respiratory Support devices: Portable Oxygen Concentrator; medical 5L Oxygen Concentrator
7) Emergency Devices: Automatic tourniquet system (A.T.S.)
8) Telemedicine: Remote Medical Caring Cloud Platform with bedside monitoring terminal
More new items will come…….
Hung-Kee's target is to be a professional medical devices supplier in fields of OEM, ODM and SKD services, and to be your loyal and reliable partner in a long run basis.
More new items will come in near future with fully Hung-Kee owned IP, and more added value will be produced to our esteemed partners around the world.
Hung-Kee's staffs are proud of its 19 years development, every steps presents Hung-Kee's determination to be the world’s No.1 cost-effective high quality medical products supplier.
Factory tour:
R&D:
Quality Certificate:
Customer Service:
FAQ for Portable Patient Monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
3.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
4. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
5. Q: How to proceed an order for portable patient monitor or other medical equipment?
A: 1st let us know your requirements or application.
2nd We quote according to your requirements or our suggestions.
3rd customer arrange payment for formal order.
4th We arrange the production.
6.Q:Are You A Manufacturer Or Trading Company?
A: We Are The Top 10 Manufacturer of ICU Equipment in China Since 2008.
7.Q:Do You Need Foreign Agent?
A: Surely Yes, We Warmly Welcome Foreign Clients To Be our Agent.
8.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
9.Q:Why Should We Buy From You Rather than from other suppliers?
A: Producing Stable Quality And Affordable Products Is Our Purpose! Hung-Kee has been producing medical devices for more than 14 years, we have rich experience in production and maintenance.
