Product Details:
|
| Standard: | ECG, NIBP, SPO2, 2Temp, PR/HR | SKD/OEM/ODM: | Acceptable |
|---|---|---|---|
| Functions: | Monitor, Diagnostic, Operation | Application: | Adult, Child, Neonate |
| Highlight: | multipara Modular Patient Monitor,ODM Modular Patient Monitor |
||
Modular Patient monitor with cardiac patient monitor portable patient monitor multi parameter patient monitor
12.1" Portable Modular Patient Monitor general ward and clinic monitoring cardiac patient monitor Beta 12Plus
Modular Patient Monitor Quick Details:
| Product Name | Modular patient monitor Beta 12Plus |
| Display Size | 12.1" high resolution(800x6000) color display |
| Net Weight | 5.3Kg |
| Language | Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, Portuguese, Italian); |
| Battery | Built-in 2 hours rechargeable lithium battery, and battery volume display. |
| Feature 1 | Support 3/5-lead ECG monitoring |
| Feature 2 | Real time S-T segment analysis, and 20 types of arrhythmic analysis; SpO2 Pitch Tone Variation, Drug Dose Calculation and Hemodynamic Calculations; |
| Item | 400 groups NIBP list and 60 groups arrhythmia event |
| Function | 168-hour ECG waveform and trend data recall |
| Multi-display interface | Standard, Large font, Trend Coexist, OxyCRG dynamic, 7 full ECG waveforms; |
| Adjustment | Pitch tone selection and brightness adjustment |
| Protection | Protection against defibrillator interference |
| Pulse | Pacemaker pulse detection |
| Network | TCP/IP networking platform, connect with central monitoring system, maxmum 64 bedside patient monitors connected. |
| Resistance to interference | Efficient resistance to interference of defibrillator and HF knife; |
| Design | Portable design |
| Standard Parameters | SpO2, PR, NIBP, ECG, RESP, TEMP |
| Option | SunTech NIBP, Masimo SPO2, 2ch-IBP, EtCO2, C.O., CMS, touch, printer, Trolley, Wall mount stand |
Hung-Kee Patient monitor Brochure 2022.01.pdf
Modular Patient Monitor Technical details:
| Display size | 12.1''color TFT LCD |
| Pacemaker pulse detection |
It can test the following pace-maker pulse : Extent : ±2 mV ～ ±700mV width: 0.1ms ～ 2ms Rise time : 10µs～100µs |
| SpO2 Measuring Range | 0 ~ 100 % |
| NIBP measurement method | Pulse wave oscillation |
| TEMP Measuring and Alarm Range | 0 ~ 50° C |
| EtCO2 measurement | Side stream or main stream |
| Respiration Rate Range | 3 to 150 Breaths Per Minute (BPM) |
| Respiratory Rate Accuracy | 1% of reading ±1 breath |
( for more detailed technical data please refer to above PDF brochure)

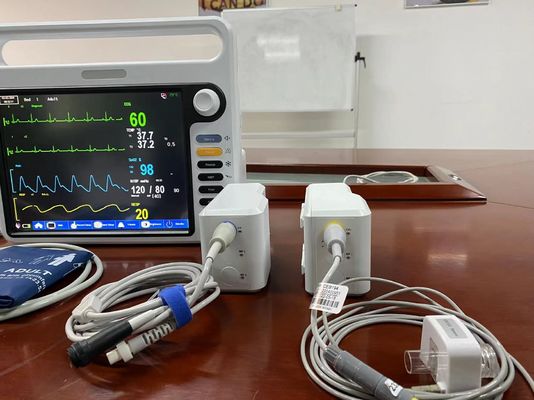

Modular Patient Monitor Description:
The Beta 12Plus modular portable patient monitor users may select different parameter configuration according to different requirements. It has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100-240V~,50/60Hz, adopts 12.1'' color TFT LCD displaying real-time date and waveform. It can synchronously display seven-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. Maximum 64 units portable patient monitor could be connected to the central monitoring system via wire network to form a network monitoring system.

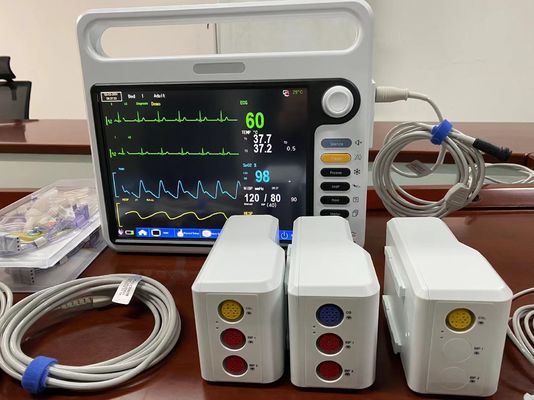

The Beta 12Plus modular portable patient monitor offers an optional plug-and-play module structure for more advanced monitoring functions such as 2-ch IBP, EtCO2, aiding clinicians to identify signs of patient deterioration due to respiratory distress, and other options like 2-ch IBP, C.O., Suntech BP and Masimo SPO2 modules.

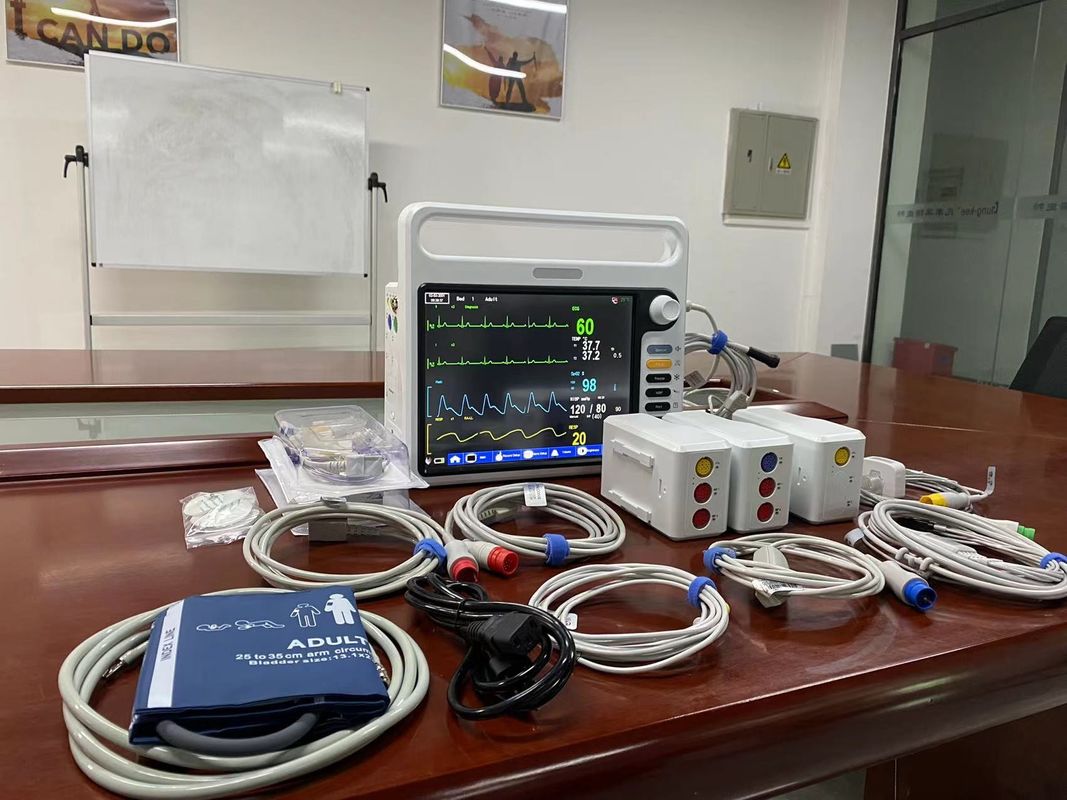

Modular Patient Monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
Modular Patient Monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for Modular Patient Monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
3. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
4.Q:Are You A Manufacturer Or Trading Company?
A: We Are The Top 10 Manufacturer of ICU Equipment in China Since 2008.
5.Q:Do You Need Foreign Agent?
A: Surely Yes, We Warmly Welcome Foreign Clients To Be our Agent.
6.Q:Why Should We Buy From You Rather than from other suppliers?
A: Producing Stable Quality And Affordable Products Is Our Purpose! Hung-Kee has been producing medical devices for more than 14 years, we have rich experience in production and maintenance.
