Product Details:
|
| Standard: | ECG, NIBP, SPO2, 2Temp, PR/HR | SKD/OEM: | Accepted |
|---|---|---|---|
| Power Supply: | 100~240V, 50/60Hz | Display: | 12.1 Inch |
| Size: | 12.1'' Screen | ||
| Highlight: | 12.1Inch Cardiac Multipara Patient Monitor,Cardiac Multipara Patient Monitor Modular,240V multipara cardiac monitor |
||
Cardiac patient monitor Neonate Patient Monitor multi parameter patient monitor modular patient monitor ICU monitor

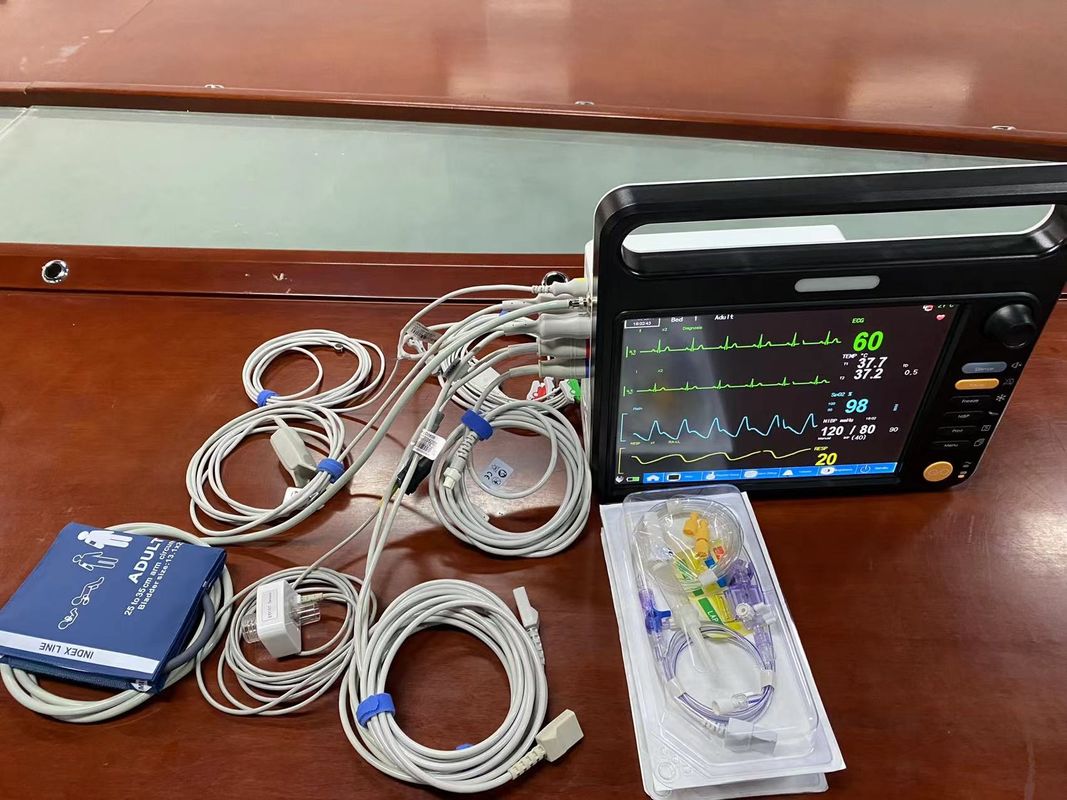

12.1” Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring cardiac monitor HighAcuity T12
Cardiac Patient Monitor Quick Details:
1. 12.1 inch TFT LCD screen, 6 standard parameters
2. 32-levels sound volume adjustment
3. 10-levels brightness adjustment
4. Maximum 168 hours graphic and tabular trends of all parameters;
5. ST Segment/Arrhythmia Analysis, Tabular Trending/Graphical Trending, Drug Calculations, OXY CRG
6. Maximum 20 hours continual working time (optional)
Hung-Kee Patient monitor Brochure 2022.01.pdf
Cardiac Patient Monitor Technical details:
Table IBP Specifications
| Parameter | Specification |
| IBP range |
ART 0 - 300 mmHg PA -6 - 120 mmHg CVP -10 - 40 mmHg RAP -10 - 40 mmHg LAP -10 - 40 mmHg ICP -10 - 40 mmHg |
| IBP accuracy | 1 mmHg or 2%, whichever is greater |
| Unit | mmHg or kPa |
| Sampling rate | 62.5 times per second |
| Waveform speed | 6.25 mm/s, 12.5 mm/s, 25.0 mm/s |
| Transducer sensitivity (Intellivue:Input sensitivity) | 5 uV/V/mmHg |
| Transducer type | Disposable |
( for more detailed technical data please refer to above PDF brochure)
Cardiac Patient Monitor Description:
1. New high-precision cardiac patient monitor
2. 12.1" color TFT display, up to 7 waveforms
3. Various interfaces: A single guide, standard, large font, all leads
4. Anti-ESU, anti- defibrillator
5. Thinner and lighter in design, convenient and portable for users
6. Real-time S-T segment analysis, pacemaker detection
7. Various interfaces: standard screen, trend screen, oxy CRG screen, big front screen.
8. 3-level audio/visual alarms. Efficient resistance to interference of defibrillator and HF knife.
9. Up to 400 groups NIBP list, 168 hours, ECG waveform recall, 60 alarm event records recall,
10. 168 hours trend chart in storage. Built-in rechargeable lithium battery,
11. 2-hour working capability. Wire central monitoring system applicable to ICU/CCU/OR
Cardiac Patient Monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
Cardiac Patient Monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for Cardiac Patient Monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
4.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
5.Q:Can the monitors display wave-forms and numerical data?
A: Yes, can display wave-forms and numerical data.
6. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
