Product Details:
|
| Application: | Hospital And Clinics | Screen Display: | 15 Inch TFT LCD 1024X768 |
|---|---|---|---|
| Origins: | P.R.China | Warranty Time: | 24 Moths |
| Product Name: | ICU Cardiac Monitor | Feature: | Cardiac Monitoring Machine |
| Highlight: | Bedside Vital Machine Monitor,Vital Machine Monitor 15Inch,Clinics Portable Vital Machine |
||
ICU cardiac monitor Multi parameter Patient monitor used with neonate patient monitor Vital Signs NIBP
15" Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring bedside cardiac monitor HighAcuity T15
ICU cardiac monitor Quick Details:
This ICU cardiac Monitor is used for monitoring, recording, and alarming of multiple physiological parameters of adults, pediatrics and neonates. You can view measurement trend graphs and alarming events to help you identify changes in the patient's physiological condition. The monitor can monitor ECG, RESP, TEMP, NIBP, SpO2 and PR.
1. 15 inch TFT LCD screen, 6 standard parameters
2. 32-levels sound volume adjustment
3. Maximum 168 hours graphic and tabular trends of all parameters
Hung-Kee Patient monitor Brochure 2022.01.pdf
Cardiac Patient Monitor Technical details:
Table EtCO2 Specification
| Transducer Type | Mainstream EtCO2 Sensor |
| Principle of Operation |
Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts. |
| CO2 Measurement Range | 0% to 20% (0 to 150mmHg) |
| CO2 Resolution |
0.1 mm Hg 0 to 49 mm Hg 0.2 mm Hg 50 to 150 mm Hg |
( for more detailed technical data please refer to above PDF brochure)
ICU cardiac monitor Description:
The HighAcuity T15 ICU cardiac monitor portable patient monitor is part of Hung-Kee’s premier patient monitoring solution designed to enhance patient care and support timely and accurate clinical assessment across Emergency, Critical Care, and Operating Room environments. The HighAcuity T15offers an option a plug-and-play module structure for more advanced monitoring functions such as EtCO2, aiding clinicians to identify signs of patient deterioration due to respiratory distress.
This portable patient monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. It can synchronously display seven-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. Maximum 64 units portable patient monitor could be connected to the central monitoring system via wire network to form a network monitoring system.
1. Thinner and lighter in design, convenient and portable for users
2. Real-time S-T segment analysis, pacemaker detection

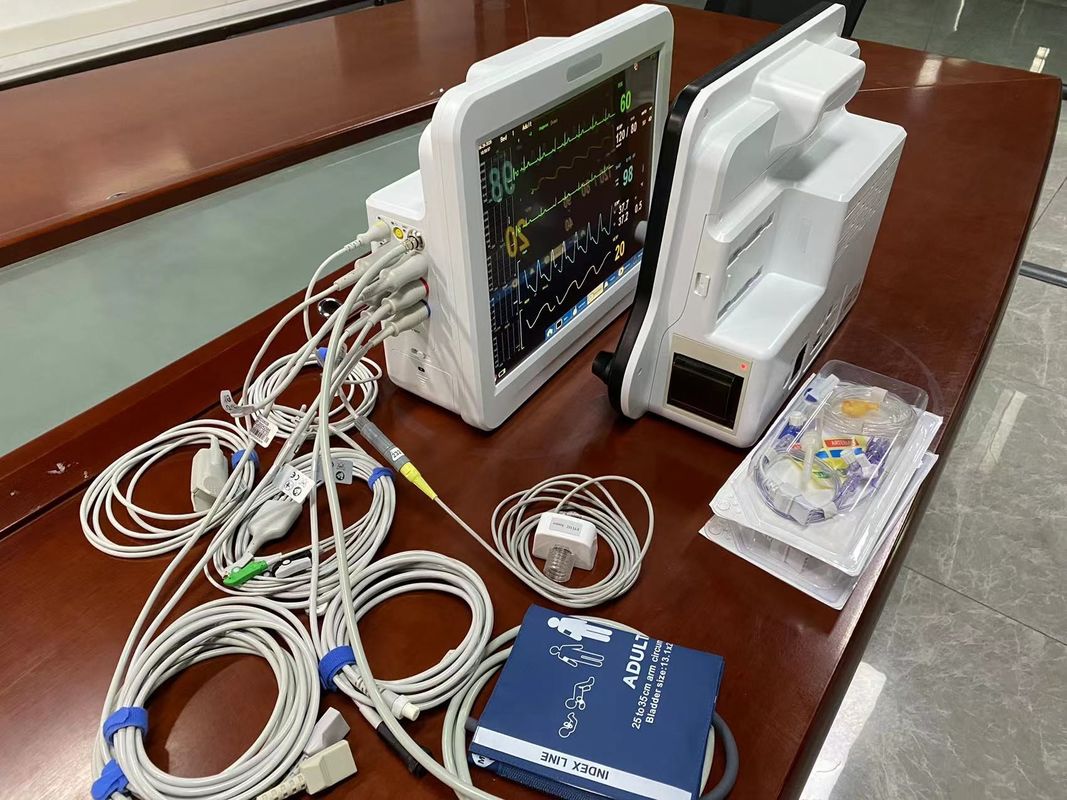

ICU cardiac monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
ICU cardiac monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for ICU cardiac monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
4.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
5.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
6. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
