Product Details:
|
| Standard Parameters: | ECG, NIBP, SPO2, 2Temp, PR/HR | Optional Parameters: | EtCO2, Masimo SPo2, C.O., 2IBP, Suntech BP |
|---|---|---|---|
| Application: | Adult, Pediatric, Neonate | Screen Size: | 15 Inch TFT LCD 1024X768 |
| Origins: | China | Warranty Period: | 24 Months |
| Product Name: | Cardiac Monitoring Machine | ||
| Highlight: | Neonate ICU Cardiac Monitor,ICU Cardiac Monitor Pediatric,Ambulance Hospital ICU Monitor |
||
ICU cardiac monitor used with neonate patient monitor multi parameter patient monitor modular patient monitor

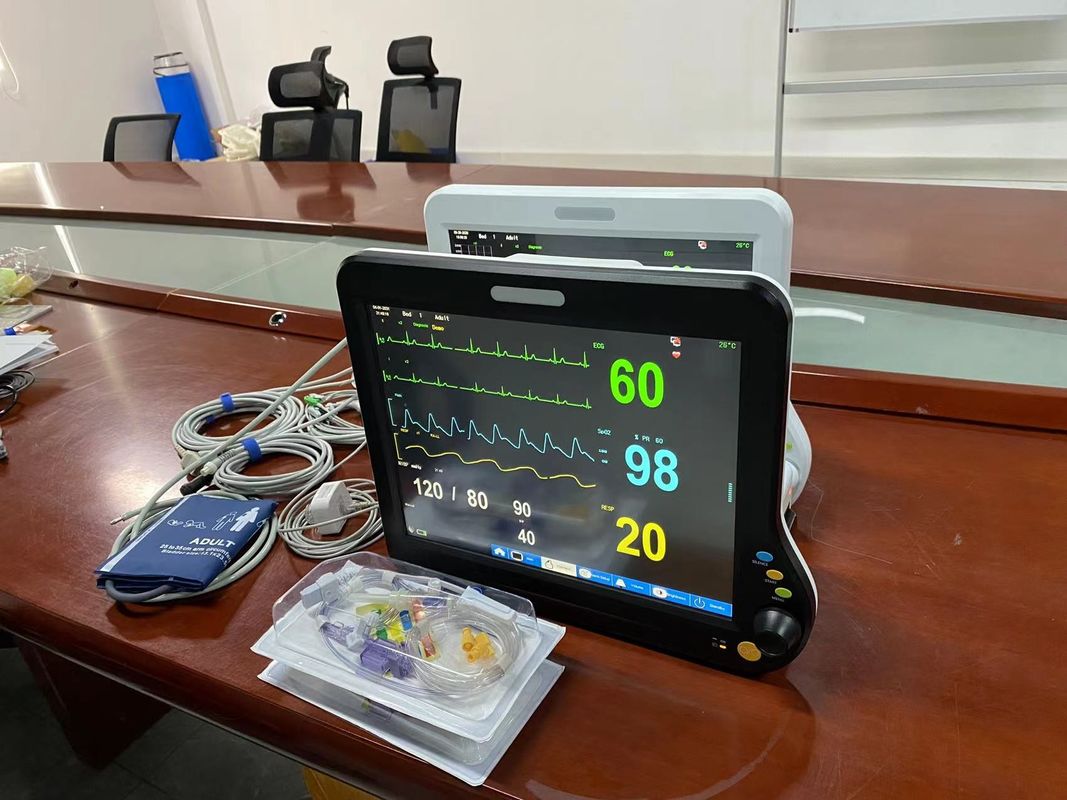

15" Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring bedside cardiac monitor HighAcuity T15
ICU cardiac monitor Quick Details:
This ICU cardiac Monitor is used for monitoring, recording, and alarming of multiple physiological parameters of adults, pediatrics and neonates. You can view measurement trend graphs and alarming events to help you identify changes in the patient's physiological condition. The monitor can monitor ECG, RESP, TEMP, NIBP, SpO2 and PR.
1. 15 inch TFT LCD screen, 6 standard parameters
2. 32-levels sound volume adjustment
Hung-Kee Patient monitor Brochure 2022.01.pdf
Cardiac Patient Monitor Technical details:
Table EtCO2 Specifications
| Transducer Type | Sidestream CO2 Sensor |
| Sampling Rate | 50 mL/minute ± 10 mL/minute |
| Principle of Operation | Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts in optics |
| Initialization Time | Capnogram displayed in less than 5 seconds at ambient temperature (e.g., 25°C); full specifications within 1 minute |
|
CO2 Measurement Range |
Selectable at 0 ~ 150 mm Hg 0 ~ 19.7% 0 ~ 20 kPa (at 760 mm Hg) Barometric Pressure supplied automatically by onboard chip |
| CO2 Resolution |
0.1mmHg, at 0 to 49 mm Hg 0.2 mmHg, at 50 to 150 mm Hg |
|
CO2 Accuracy
|
±2 mm Hg at 0 ~ 40 mm Hg ±5% of reading at 41 ~ 150 mm Hg ± 8% of reading at above 80 BPM |
| CO2 Stability | Drift over 4 hours shall not exceed 1 mm Hg max. |
| CO2 Noise |
RMS noise of the sensor shall be less than or equal to 0.25 mm Hg at 5% CO2 |
| Respiratory Rate Range | 2 to 150 Breaths Per Minute (BPM) |
|
Respiratory Rate Accuracy |
1% of reading ± 1 breath |
| Compensations |
Barometric Pressure 400 mmHg to 800 mmHg can be compensated by module automatically* Operator selectable O2 / N2O compensation |
| Calibration |
No routine user calibration required, but module can be calibrated by user |
| Sample line |
Single patient use sample line and inline drier line which eliminates water vapor of gas |
|
Nasal Sampling Kits for Non-intubated Patients |
Adult and pediatric nasal CO2 sampling lines |
| On-Airway Adapter KITS for Intubated Patients | Adult and pediatric sampling lines with T-fitting |
| Sample Kit Hours of Use |
Nasal Cannula and connecting sampling line up to 12 hours, for single patient use T-fitting (on-Airway Adapter) can be disinfected repeatedly Gas dryer line up to 1 year, do not need to be disinfected |
| Flow Control | Via Delta P measurement across a capillary tube |
| Scavenging Port | Yes |
| Voltage Requirements | 5.0 VDC ± 5% |
| Power Rating |
Rated input: In steady state: less than 0.5 Watts typical Maximum power: less than 1.1 Watts on Offset Calibration or sampling line occluded |
| Interconnection | Standard Lemo Redel 8-pin plastic |
|
Temperature and Humidity |
Operating: 5º to 55ºC, 10 to 90% RH, non-condensing Storage: -40º to 60ºC, <90% RH, non-condensing |
| Data Interface | RS232, bi-directional, 19200 baud. Standard N-8-1 |
| Data Output |
CO2 gas concentration (mm Hg), End-tidal CO2, Inspired CO2, Respiratory Rate, Gas and barometric pressure |
( for more detailed technical data please refer to above PDF brochure)
ICU cardiac monitor Description:
The HighAcuity T15 ICU cardiac monitor portable patient monitor is part of Hung-Kee’s premier patient monitoring solution designed to enhance patient care and support timely and accurate clinical assessment across Emergency, Critical Care, and Operating Room environments. The HighAcuity T15offers an option a plug-and-play module structure for more advanced monitoring functions such as EtCO2, aiding clinicians to identify signs of patient deterioration due to respiratory distress.
ICU cardiac monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
ICU cardiac monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for ICU cardiac monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
4.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
5.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
