Product Details:
|
| Standard Parameters: | ECG, NIBP, SPO2, 2Temp, PR/HR | Optional 1: | EtCO2, Masimo SPo2, C.O., 2IBP, Suntech BP |
|---|---|---|---|
| Optional 2: | AG, Printer, Center Monitoring System, IoC, Touch | Language: | English, Russia, French, Spanish, Portuguese |
| Application: | Adult, Pediatric, Neonate, OR, ICU | Screen Size: | 15 Inch TFT LCD 1024X768 |
| Origin: | Shenzhen, P.R.China | Warranty: | 24 Months |
| Trade Terms: | CIF, Exworks | Product Name: | Cardiac Monitoring Machine |
| Highlight: | Multipara ICU Cardiac Monitor,Medical ICU Cardiac Monitor,Multi Language Multipara Cardiac Monitor |
||
ICU cardiac monitor Portable Patient monitor with neonate patient monitor modular patient monitor

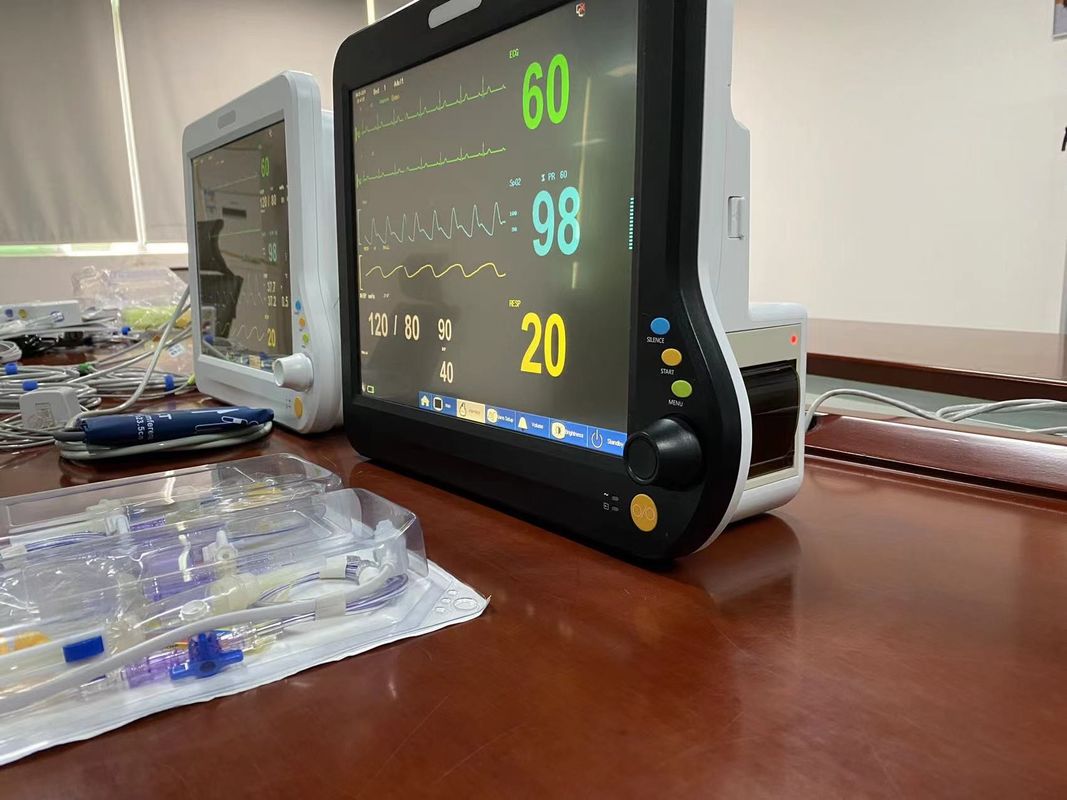

15" Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring bedside cardiac monitor HighAcuity T15
ICU cardiac monitor Quick Details:
This ICU cardiac Monitor is used for monitoring, recording, and alarming of multiple physiological parameters of adults, pediatrics and neonates. You can view measurement trend graphs and alarming events to help you identify changes in the patient's physiological condition. The monitor can monitor ECG, RESP, TEMP, NIBP, SpO2 and PR.
1. 15 inch TFT LCD screen, 6 standard parameters
2. 32-levels sound volume adjustment
3. real time display the waveform of ECG, or SPO2, Meanwhile, display the digital data of HR/PR, TEMP, RESP, SP02, NIBP
4. Three monitoring mode: Monitor, Operation, Diagnosis
5. Blood pressure measurement has three modes: Manual, Cycle, and Fast measurement
6. Freezing and Storage
7. Display the latest 400 NIBP data
8. Store 168 hours trend chart
9. Sound & light alarm system
10. AC-DC power
Hung-Kee Patient monitor Brochure 2022.01.pdf
Cardiac Patient Monitor Technical details:
Table EtCO2 Specification
| Transducer Type | Sidestream CO2 Sensor |
| Sampling Rate | 50 mL/minute ± 10 mL/minute |
| Principle of Operation | Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts in optics |
| Initialization Time | Capnogram displayed in less than 5 seconds at ambient temperature (e.g., 25°C); full specifications within 1 minute |
CO2 Measurement | Selectable at |
| CO2 Resolution | 0.1mmHg, at 0 to 49 mm Hg |
CO2 Accuracy | ±2 mm Hg at 0 ~ 40 mm Hg |
| CO2 Stability | Drift over 4 hours shall not exceed 1 mm Hg max. |
| CO2 Noise | RMS noise of the sensor shall be less than or equal to 0.25 |
| Respiratory Rate Range | 2 to 150 Breaths Per Minute (BPM) |
Respiratory Rate | 1% of reading ± 1 breath |
| Calibration | No routine user calibration required, but module can be |
| Sample line | Single patient use sample line and inline drier line which |
Nasal Sampling Kits for | Adult and pediatric nasal CO2 sampling lines |
| On-Airway Adapter KITS for Intubated Patients | Adult and pediatric sampling lines with T-fitting |
| Sample Kit Hours of Use | Nasal Cannula and connecting sampling line up to 12 hours, for |
| Flow Control | Via Delta P measurement across a capillary tube |
| Scavenging Port | Yes |
| Voltage Requirements | 5.0 VDC ± 5% |
| Interconnection | Standard Lemo Redel 8-pin plastic |
Temperature and | Operating: 5º to 55ºC, 10 to 90% RH, non-condensing |
| Data Interface | RS232, bi-directional, 19200 baud. Standard N-8-1 |
| Data Output | CO2 gas concentration (mm Hg), End-tidal CO2, Inspired CO2, |
( for more detailed technical data please refer to above PDF brochure)
ICU cardiac monitor Description:
The HighAcuity T15 ICU cardiac monitor portable patient monitor is part of Hung-Kee’s premier patient monitoring solution designed to enhance patient care and support timely and accurate clinical assessment across Emergency, Critical Care, and Operating Room environments.
1. Durable
Monitor is made of ABS+PC Fireproof Materials.

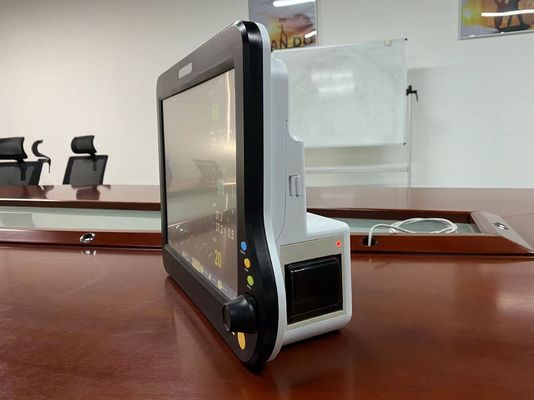

2. Ultra-thin design
8.9cm thick, smaller footprint.
3. Low consumption
Adopted by the design of fanless, heat fast.
4. Silicone button
Adopted by pure flat silicone button for easy cleaning.
ICU cardiac monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
ICU cardiac monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for ICU cardiac monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
4.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
5.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
6.Q:Why Should We Buy From You Rather than from other suppliers?
A: Producing Stable Quality And Affordable Products Is Our Purpose! Hung-Kee has been producing medical devices for more than 14 years, we have rich experience in production and maintenance.
7.Q: Are you trading company or manufacturer?
A: We are factory which has over 14 years' manufacturing experience.
8.Q: What's the MOQ?
A: 1 unit.
9.Q: How long is your delivery time?
A: 5 - 30 days after order confirmed. Based on the item and quantity.
