Product Details:
|
| Standard Features: | ECG, NIBP, SPO2, 2Temp, PR/HR | Optional 1: | EtCO2, Masimo SPo2, C.O., 2IBP, Suntech BP |
|---|---|---|---|
| Optional 2: | AG, Printer, Center Monitoring System, IoC, Touch | Application: | Adult, Pediatric, Neonate |
| Original: | P.R.China | Warranty Time: | 24 Months |
| MOQ: | 1 Pc | Trade Terms: | CIF Or Exworks |
| Product Name: | Cardiac Monitoring Machine | ||
| Highlight: | ECG Vital Signs Monitor Machine,SPO2 Vital Signs Monitor Machine,NIBP Portable Vital Signs Monitor |
||

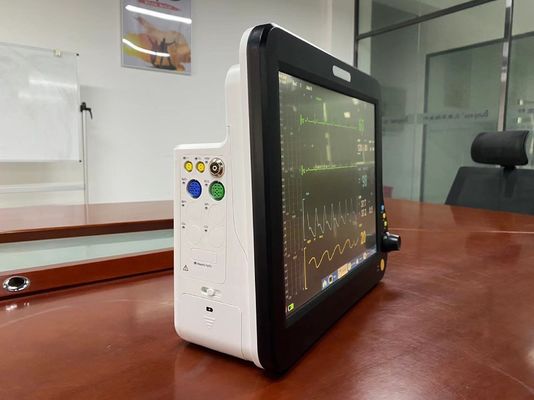

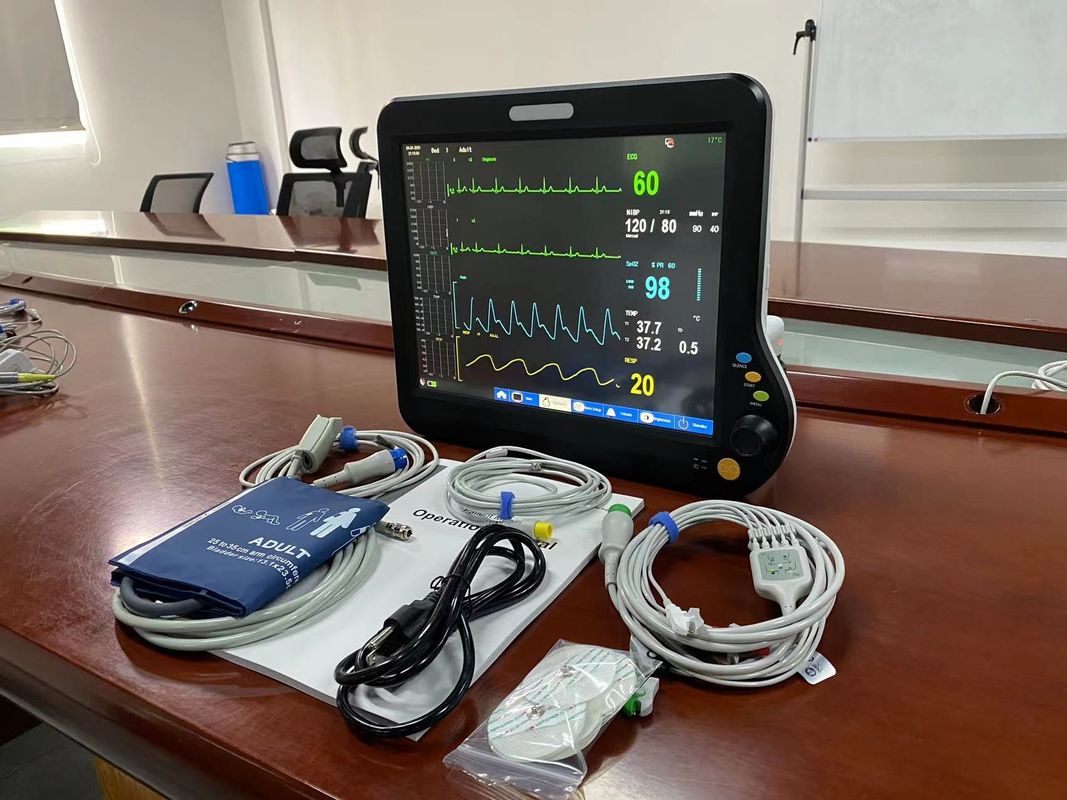

ICU cardiac Monitor Multi Parameter Patient monitor neonate patient monitor with Vital Signs ECG SPO2 NIBP Temp
F15" Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring bedside cardiac monitor HighAcuity T15
ICU cardiac monitor Quick Details:
15 inch TFT LCD screen, 6 standard parameters;32-levels sound volume adjustment; real time display the waveform of ECG, or SPO2, Meanwhile, display the digital data of HR/PR, TEMP, RESP, SP02, NIBP; Three monitoring mode: Monitor, Operation, Diagnosis; Blood pressure measurement has three modes: Manual, Cycle, and Fast measurement
Hung-Kee Patient monitor Brochure 2022.01.pdf
Cardiac Patient Monitor Technical details:
Table EtCO2 Specification
| Transducer Type | Sidestream CO2 Sensor |
| Sampling Rate | 50 mL/minute ± 10 mL/minute |
| Principle of Operation | Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts in optics |
| Initialization Time | Capnogram displayed in less than 5 seconds at ambient temperature (e.g., 25°C); full specifications within 1 minute |
|
CO2 Measurement Range |
Selectable at 0 ~ 150 mm Hg 0 ~ 19.7% 0 ~ 20 kPa (at 760 mm Hg) Barometric Pressure supplied automatically by onboard chip |
| CO2 Resolution |
0.1mmHg, at 0 to 49 mm Hg 0.2 mmHg, at 50 to 150 mm Hg |
|
CO2 Accuracy
|
±2 mm Hg at 0 ~ 40 mm Hg ±5% of reading at 41 ~ 150 mm Hg ± 8% of reading at above 80 BPM |
| CO2 Stability | Drift over 4 hours shall not exceed 1 mm Hg max. |
| CO2 Noise |
RMS noise of the sensor shall be less than or equal to 0.25 mm Hg at 5% CO2 |
| Respiratory Rate Range | 2 to 150 Breaths Per Minute (BPM) |
|
Respiratory Rate Accuracy |
1% of reading ± 1 breath |
| Calibration |
No routine user calibration required, but module can be calibrated by user |
| Sample line |
Single patient use sample line and inline drier line which eliminates water vapor of gas |
| On-Airway Adapter KITS for Intubated Patients | Adult and pediatric sampling lines with T-fitting |
| Sample Kit Hours of Use |
Nasal Cannula and connecting sampling line up to 12 hours, for single patient use T-fitting (on-Airway Adapter) can be disinfected repeatedly Gas dryer line up to 1 year, do not need to be disinfected |
| Flow Control | Via Delta P measurement across a capillary tube |
| Scavenging Port | Yes |
| Voltage Requirements | 5.0 VDC ± 5% |
| Interconnection | Standard Lemo Redel 8-pin plastic |
|
Temperature and Humidity |
Operating: 5º to 55ºC, 10 to 90% RH, non-condensing Storage: -40º to 60ºC, <90% RH, non-condensing |
| Data Interface | RS232, bi-directional, 19200 baud. Standard N-8-1 |
| Data Output |
CO2 gas concentration (mm Hg), End-tidal CO2, Inspired CO2, Respiratory Rate, Gas and barometric pressure |
( for more detailed technical data please refer to above PDF brochure)
ICU cardiac monitor Description:
This portable patient monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100-240V~,50/60Hz, adopts 12.1'' color TFT LCD displaying real-time date and waveform. It can synchronously display seven-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. Maximum 64 units portable patient monitor could be connected to the central monitoring system via wire network to form a network monitoring system.
Features:
1. Durable
Monitor is made of ABS+PC Fireproof Materials.
2. Low consumption
Adopted by the design of fanless, heat fast.
FAQ for ICU cardiac monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
4.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
5.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
6.Q:Why Should We Buy From You Rather than from other suppliers?
A: Producing Stable Quality And Affordable Products Is Our Purpose! Hung-Kee has been producing medical devices for more than 14 years, we have rich experience in production and maintenance.
7.Q: Are you trading company or manufacturer?
A: We are factory which has over 14 years' manufacturing experience.
8.Q: What's the MOQ?
A: 1 unit.
