Product Details:
|
| Standard Function: | ECG, NIBP, SPO2, 2Temp, PR/HR | Screen Display: | 15 Inch TFT LCD |
|---|---|---|---|
| Original: | China | Trade Terms: | CIF |
| Product Name: | Cardiac Monitoring Machine | ||
| Highlight: | 6Parameters ICU Cardiac Monitor,ECG ICU Cardiac Monitor,Portable ECG Cardiac Monitor |
||
ICU cardiac monitor Multi Parameter Patient monitor portable patient monitor nenate patient monitor modular monitor

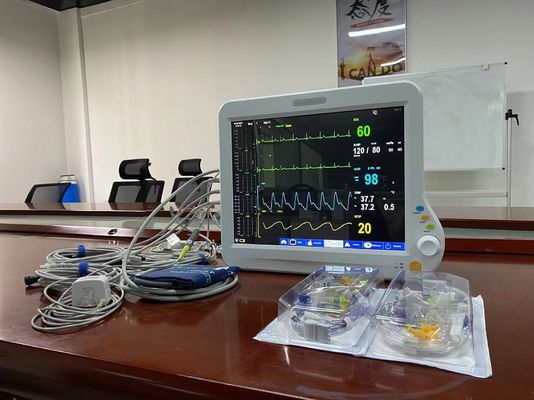

15" Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring bedside cardiac monitor HighAcuity T15
ICU cardiac monitor Quick Details:
1. 15 inch TFT LCD screen, 6 standard parameters
2. 32-levels sound volume adjustment
3. real time display the waveform of ECG, or SPO2, Meanwhile, display the digital data of HR/PR, TEMP, RESP, SP02, NIBP
4. Three monitoring mode: Monitor, Operation, Diagnosis
Hung-Kee Patient monitor Brochure 2022.01.pdf
Cardiac Patient Monitor Technical details:
Table EtCO2 Specification
| Transducer Type | Sidestream CO2 Sensor |
| Sampling Rate | 50 mL/minute ± 10 mL/minute |
| Principle of Operation | Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts in optics |
| Initialization Time | Capnogram displayed in less than 5 seconds at ambient temperature (e.g., 25°C); full specifications within 1 minute |
|
CO2 Measurement Range |
Selectable at 0 ~ 150 mm Hg 0 ~ 19.7% 0 ~ 20 kPa (at 760 mm Hg) Barometric Pressure supplied automatically by onboard chip |
| CO2 Resolution |
0.1mmHg, at 0 to 49 mm Hg 0.2 mmHg, at 50 to 150 mm Hg |
|
CO2 Accuracy
|
±2 mm Hg at 0 ~ 40 mm Hg ±5% of reading at 41 ~ 150 mm Hg ± 8% of reading at above 80 BPM |
| CO2 Stability | Drift over 4 hours shall not exceed 1 mm Hg max. |
| CO2 Noise |
RMS noise of the sensor shall be less than or equal to 0.25 mm Hg at 5% CO2 |
|
Respiratory Rate Accuracy |
1% of reading ± 1 breath |
| Calibration |
No routine user calibration required, but module can be calibrated by user |
| Sample line |
Single patient use sample line and inline drier line which eliminates water vapor of gas |
| On-Airway Adapter KITS for Intubated Patients | Adult and pediatric sampling lines with T-fitting |
| Sample Kit Hours of Use |
Nasal Cannula and connecting sampling line up to 12 hours, for single patient use T-fitting (on-Airway Adapter) can be disinfected repeatedly Gas dryer line up to 1 year, do not need to be disinfected |
| Flow Control | Via Delta P measurement across a capillary tube |
| Scavenging Port | Yes |
| Voltage Requirements | 5.0 VDC ± 5% |
| Interconnection | Standard Lemo Redel 8-pin plastic |
|
Temperature and Humidity |
Operating: 5º to 55ºC, 10 to 90% RH, non-condensing Storage: -40º to 60ºC, <90% RH, non-condensing |
| Data Interface | RS232, bi-directional, 19200 baud. Standard N-8-1 |
| Data Output |
CO2 gas concentration (mm Hg), End-tidal CO2, Inspired CO2, Respiratory Rate, Gas and barometric pressure |
( for more detailed technical data please refer to above PDF brochure)
ICU cardiac monitor Description:
1. Durable
Monitor is made of ABS+PC Fireproof Materials.
2. Ultra-thin design
8.9cm thick, smaller footprint.
ICU cardiac monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
ICU cardiac monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for ICU cardiac monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
4.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
5.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
6.Q:Why Should We Buy From You Rather than from other suppliers?
A: Producing Stable Quality And Affordable Products Is Our Purpose! Hung-Kee has been producing medical devices for more than 14 years, we have rich experience in production and maintenance.
7.Q: Are you trading company or manufacturer?
A: We are factory which has over 14 years' manufacturing experience.
