Product Details:
|
| Standard: | ECG, NIBP, SPO2, 2Temp, Resp., PR/HR, 2IBP | Option: | EtCO2, AG, Printer, Center Monitoring System (CMS), Touch |
|---|---|---|---|
| Warranty Period: | 24 Months Warranty | Screen: | TFT LCD 12.1 Inch 800X600 |
| OEM/SKD/CM: | Acceptable | Application: | Various Animals , Pet Operation |
| Trade Terms: | CIF & Exworks | Functions: | Monitor, Diagnostic & Operation |
| Origin: | P.R.China | MOQ: | 1 Unit |
| Language: | English, Spanish, Portuguese, Russia, French, Polish | Net Weight: | 4.0 KGs |
| Dimension: | 300.0 X 170.00 X 305.00mm | ||
| Highlight: | 12.1" Portable Vital Sign Machine,Portable Vital Sign Machine MultiLanguage,Portable veterinary patient monitor |
||
Veterinary multiparameter monitor animal patient monitor veterinary patient monitor veterinary vital signs monitor

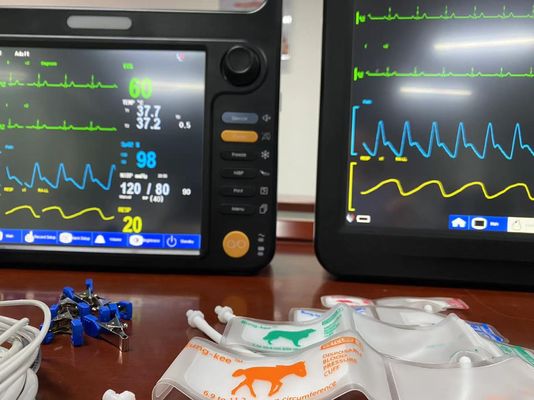

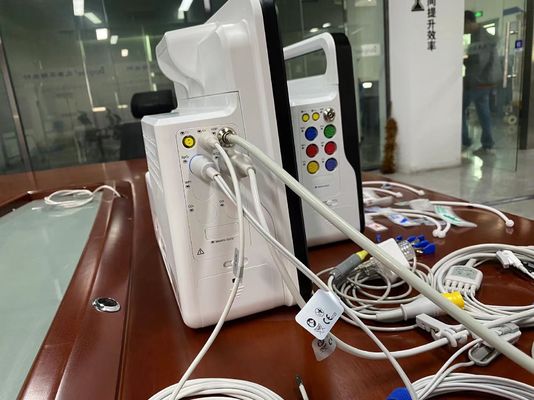

12.1" Portable Veterinary Multi-parameter Monitor OR and clinic monitoring animal monitor VET 1200Plus
Veterinary Multiparameter Monitor Quick Details:
The VET 1200Plus Veterinary multiparameter Monitor has abundant monitoring functions and can be used for monitoring of cat, dog and other animals. User may select different parameter configurations according to different requirements. It adopts 100-240V~,50/60Hz for power supply, 12.1'' TFT color LCD for displaying real-time data and waveform, and up to 7-channel waveform and all monitoring parameters can be displayed simultaneously. In addition, it can be connected to the central monitoring system via wired network so as to form a network monitoring system.
This Veterinary multiparameter Monitor can monitor such parameters as ECG, RESP, NIBP, SpO2 and dual- channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. At the same time, its built-in replaceable battery provides convenience for moving.
1.12.1''TFTcolorLCD,Multilanguage interface (English, French, Russia, Portuguese, Turkish, Spanish, Polish)
2.Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
3.With standard interface, OxyCRG, trend chard, big character interface..
4.Operation mode: keys and buttons.
5.Display up to 7-channel waveform on one screen.
6.Display 7-lead ECG waveform on one screen, and with ECG step function.
7.Adopt analog SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.
8.NIBP measurement mode: Manual/AUTO/STAT, storage for 400-group NIBP data.
9.Review for 60 alarm events of all parameters and 20 arrhythmia alarm events.
10.Drug concentration calculation and titration table functions.
11.Print trend table data with one-key.
12.Connect to Central Monitoring System by wired mode.
Hung-Kee Vet monitor Brochure 2022.01.pdf
Veterinary Multiparameter Monitor Technical details:
VET 1200Plus veterinary Multi-parameter monitor is specially designed for animal use. It with characters including: accurately, simple and friendly operation display interface. Meets most of veterinary surgeon's clinical requirement.
| Display mode | 12.1''color TFT LCD |
| Testing standard | IEC |
| ECG Lead Mode | 3/5-lead |
| Lead Selection |
Standard 3 lead or 5 lead cable 3 lead RA,LA,LL,lead method:I,II,III 5-lead RA,LA,LL,RL,V,lead method:I,II,III,aVR, aVL,aVF,V
|
| Gain | ´0.25,´0.5,´1,´2,auto |
| HR Range | 15 ~ 300 bpm |
| Sensitivity | > 200 µV (peak-peak date ) |
| Resp. Measurement | RA-LL Impedance |
| Range for Respiration | Adult 0~120rpm Pediatric and Neonatal 0~150rpm Apnea Alarm 10 ~ 40 S |
| SpO2 Measuring Range | 0 ~ 100 % |
| Pulse Rate Range | 20~300bpm |
| Temp measurement range | 0 ~ 50° C |
| NIBP measurement method | Pulse wave oscillation |
| NIBP Measuring and Alarm Range | 0~300mmHg |
| NIBP working mode | Manual/auto |
| Paper Speed | 12.5mm/s,25mm/s, 50mm/s |
| EtCO2 measurement method | Side stream or main stream |
| EtCO2 measurement range |
CO2: 0-99 INS: 0-99 AWRR:0-99 |
| IBP channel qty | 2 |
| IBP pressure measuring range |
ART 0 ～ 300 mmHg PA -6 ～ 120 mmHg CVP -50 ～ 40 mmHg RAP -50 ～ 40 mmHg LAP -50 ～ 40 mmHg ICP -50 ～ 40 mmHg P1, P2 -50 ～ 300 mmHg |
| Requirement of power | AC 100~240V, 50/60Hz |
| Dimension | 340× 370× 165(mm) |
| Net weight | 5.32Kg |
( for more detailed technical data please refer to above PDF brochure)
Veterinary Multiparameter Monitor Description:
As veterinary medicine advances, the demand for high-quality veterinary equipment increases. The Hung-Kee VET 1200Plus veterinary monitor focuses on progressive design, making this monitor smart and simple.
This veterinary multiparameter monitor can monitor different animals, such as dog, cat, sheep, cow, cattle, pig, etc., and different parameters, such as ECG, RESP, SpO2, NIBP, and Dual- channel TEMP. It integrates parameter measuring module, display and recorder in one device to form a compact and portable device. At the same time, its built-in replaceable battery provides convenience for animal moving. Except multilingual operation (English, Spanish, Russia, French, Turkey, Portuguese,Poland) , this veterinary multiparameter monitor has optional as: CMS,Printer,Anesthetic gas module (AG),mainstream EtCO2 module, Touch screen,Wall mount stand,Trolley.
1. 12.1 inch high resolution color TFT LCD display
2. Thinner and lighter in design, convenient and portable for users
3. Real-time S-T segment analysis, pacemaker detection
4. 3 Level audio & visual alarms
5. Efficient resistance to interference of defibrillator and HF knife
6. Up to 400 groups NIBP list, 168 hours ECG waveform recall;
7. 60 Alarm event records recall, 168 hours trend chart in storage;
8. Built-in rechargeable lithium battery , 2-hour working capability
9. Optional : Suntech NIBP, touch, 2IBP module, printer, EtCO2 mainstream, AG module
This veterinary Multi-parameter monitor is used for monitoring, recording, and alarming of multiple physiological parameters of most of animals. The monitor stores data in trend and event databases. You can view measurement trend graphs and alarming events to help you identify changes in the patient's physiological condition. The monitor can monitor ECG, RESP, TEMP, NIBP, SpO2 and PR. In addition, the monitor has options as Suntech NIBP, touch, 2IBP module, printer, EtCO2 mainstream and AG module. The Veterinary monitor product features:
● Thinner and lighter design, convenient and portable for user
● Freeze instant waveform for real time S-T segment analysis, pace-maker detection.
● Real time S-T segment analysis, pace-maker detection
● 3-level audio/visual alarming
● Efficient resistance to interference of defibrillator and HF knife.
FAQ for Veterinary Multiparameter Monitor:
1. Q: How to proceed an order for portable patient monitor or other medical equipment?
A: 1st let us know your requirements or application.
2nd We quote according to your requirements or our suggestions.
3rd customer arrange payment for formal order.
4th We arrange the production.
2.Q:Are You A Manufacturer Or Trading Company?
A: We Are The Top 10 Manufacturer of ICU Equipment in China Since 2008.
3.Q:Do You Need Foreign Agent?
A: Surely Yes, We Warmly Welcome Foreign Clients To Be our Agent.
4.Q: How long is the warranty time?
A: 24 Months
5. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
6. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
7.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
8.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
9. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
10.Q: Are you trading company or manufacturer?
A: We are factory which has over 14 years' manufacturing experience.
11.Q: What's the MOQ?
A: 1 unit.
12.Q: How long is your delivery time?
A: 5 - 30 days after order confirmed. Based on the item and quantity.
13.Q: What is your terms of payment?
A: T/T, Western Union or PayPal; Trade terms: CIF
14.Q: Where's your general loading port?
A: Shenzhen or Hongkong port, as your demand.
15.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
16.Q: How to deal with the faulty?
A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free within 2 warranty years. Secondly, our after-sales department will periodically follow up customers.
17.Q: How can get the shipping cost?
A: You tell us your destination port or delivery address, we check the Sea Freight or Air Freight or express for you based on your requirement.
18.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
