Product Details:
|
Standard: | ECG, NIBP, SPO2, 2Temp, Resp. | Option: | Sidestream EtCO2, AG, Printer, CMS, Touch Screen |
---|---|---|---|
Warranty Period: | 2 Years | Screen: | 12.1 Inch TFT LCD Screen |
OEM/SKD/CM: | Accepted | Application: | Various Animals (cats, Rabbit , Dog...) , Pet Operation |
Trade Terms: | CIF, Exworks | Functions: | Monitor, Diagnostic, Operation |
Origin: | China | MOQ: | 1 Unit |
Language: | English, Spanish, Portuguese, French | Net Weight: | 4.0 KGs |
Dimension: | 300.0 X 170.00 X 305.00mm | Product Name: | Vital Signs Equipment |
Highlight: | OEM Veterinary Surgical Monitor,ODM Veterinary Surgical Monitor |
Veterinary multiparameter monitor veterinary vital sign monitor veterinary patient monitor animal patient monitor

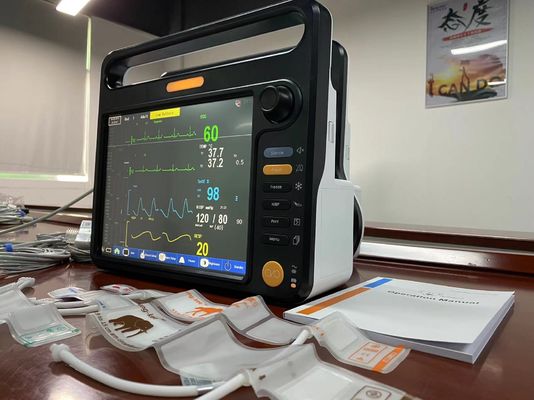

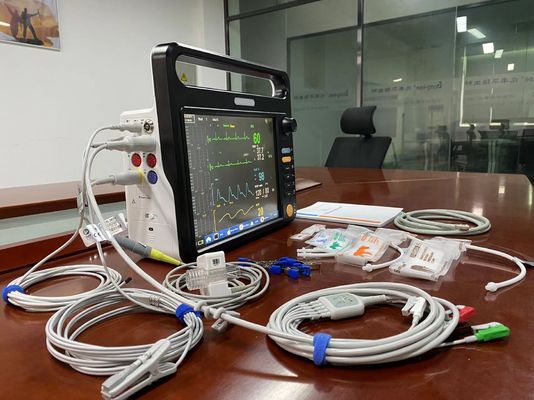

12.1" Portable Veterinary Multi-parameter Monitor OR and clinic monitoring animal monitor VET 1200Plus
Veterinary Multiparameter Monitor Quick Details:
The VET 1200Plus Veterinary multiparameter Monitor has abundant monitoring functions and can be used for monitoring of cat, dog and other animals. User may select different parameter configurations according to different requirements. It adopts 100-240V~,50/60Hz for power supply, 12.1'' TFT color LCD for displaying real-time data and waveform, and up to 7-channel waveform and all monitoring parameters can be displayed simultaneously.
This Veterinary multiparameter Monitor can monitor such parameters as ECG, RESP, NIBP, SpO2 and dual- channel TEMP, etc.
1. 12.1''TFTcolorLCD,Multilanguage interface (English, French, Russia, Portuguese, Turkish, Spanish, Polish)
2. Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
3. With standard interface, OxyCRG, trend chard, big character interface..
4. Operation mode: keys and buttons.
5. Display up to 7-channel waveform on one screen.
6. Display 7-lead ECG waveform on one screen, and with ECG step function.
Hung-Kee Vet monitor Brochure 2022.01.pdf
Veterinary Multiparameter Monitor Technical details:
VET 1200Plus veterinary Multi-parameter monitor is specially designed for animal use. It with characters including: accurately, simple and friendly operation display interface. Meets most of veterinary surgeon's clinical requirement.
Display mode | 12.1''color TFT LCD |
Testing standard | IEC |
ECG Lead Mode | 3/5-lead |
Lead Selection |
Standard 3 lead or 5 lead cable 3 lead RA,LA,LL,lead method:I,II,III 5-lead RA,LA,LL,RL,V,lead method:I,II,III,aVR, aVL,aVF,V
|
HR Range | 15 ~ 300 bpm |
Sensitivity | > 200 µV (peak-peak date ) |
Electrode polarization voltage range | ±300mV |
Resp. Measurement | RA-LL Impedance |
Range for Respiration | Adult 0~120rpm Pediatric and Neonatal 0~150rpm Apnea Alarm 10 ~ 40 S |
SpO2 Measuring Range | 0 ~ 100 % |
Temp measurement range | 0 ~ 50° C |
NIBP Measuring and Alarm Range | 0~300mmHg |
NIBP working mode | Manual/auto |
EtCO2 measurement method | Side stream or main stream |
EtCO2 measurement range |
CO2: 0-99 INS: 0-99 AWRR:0-99 |
IBP channel qty | 2 |
IBP pressure name | ART, PA, CVP, RAP, LAP, ICP, P1, P2. |
IBP pressure measuring range |
ART 0 ~ 300 mmHg PA -6 ~ 120 mmHg CVP -50 ~ 40 mmHg RAP -50 ~ 40 mmHg LAP -50 ~ 40 mmHg ICP -50 ~ 40 mmHg P1, P2 -50 ~ 300 mmHg |
( for more detailed technical data please refer to above PDF brochure)
Veterinary Multiparameter Monitor Description:
The Hung-Kee VET 1200Plus veterinary monitor focuses on progressive design, making this monitor smart and simple.
This veterinary multiparameter monitor can monitor different animals, such as dog, cat, sheep, cow, cattle, pig, etc., and different parameters, such as ECG, RESP, SpO2, NIBP, and Dual- channel TEMP. It integrates parameter measuring module, display and recorder in one device to form a compact and portable device. At the same time, its built-in replaceable battery provides convenience for animal moving. Except multilingual operation (English, Spanish, Russia, French, Turkey, Portuguese,Poland) , this veterinary multiparameter monitor has optional as: CMS,Printer,Anesthetic gas module (AG),mainstream EtCO2 module, Touch screen,Wall mount stand,Trolley.
1. 12.1 inch high resolution color TFT LCD display
2. Thinner and lighter in design, convenient and portable for users
3. Real-time S-T segment analysis, pacemaker detection
4. 3 Level audio & visual alarms
This veterinary Multi-parameter monitor is used for monitoring, recording, and alarming of multiple physiological parameters of most of animals. The monitor stores data in trend and event databases. You can view measurement trend graphs and alarming events to help you identify changes in the patient's physiological condition. The monitor can monitor ECG, RESP, TEMP, NIBP, SpO2 and PR. In addition, the monitor has options as Suntech NIBP, touch, 2IBP module, printer, EtCO2 mainstream and AG module. The Veterinary monitor product features:
● Thinner and lighter design, convenient and portable for user
● Freeze instant waveform for real time S-T segment analysis, pace-maker detection.
FAQ for Veterinary Multiparameter Monitor:
1. Q: How to proceed an order for portable patient monitor or other medical equipment?
A: 1st let us know your requirements or application.
2nd We quote according to your requirements or our suggestions.
3rd customer arrange payment for formal order.
4th We arrange the production.
2.Q:Are You A Manufacturer Or Trading Company?
A: We Are The Top 10 Manufacturer of ICU Equipment in China Since 2008.
3.Q:Do You Need Foreign Agent?
A: Surely Yes, We Warmly Welcome Foreign Clients To Be our Agent.
4.Q: How long is the warranty time?
A: 24 Months
5. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
6. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
7.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
8.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
9. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
