Product Details:
|
| Warranty: | 24 Months | Screen Type: | OLED Screen |
|---|---|---|---|
| OEM/ODM: | Acceptable | Application: | Adult, Pediatric, Clinic, Home |
| Trade Terms: | CIF, Exworks | Functions: | Monitor PR And SPOR Value |
| Net Weight: | 0.8 KGs | Dimension: | 85.0 X 68.0 X 45.0mm |
| Paramter: | PR, SPO2 | Color: | White And Blue |
| Product Name: | Blood Oxygen Monitor | ||
| Highlight: | Medical Blood Oxygen Finger Sensor,OLED Blood Oxygen Finger Sensor,SPO2 OLED Display Oximeter |
||
OLED fingertip pulse oximeter Portable patient monitor modular patient monitor ICU cardiac monitor vital signs monitor
OLED fingertip pulse oximeter SPO2 and PR/HR monitoring oximetry 2 years warranty 500B/E

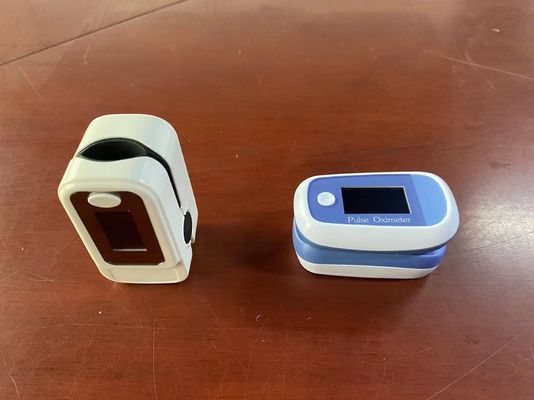

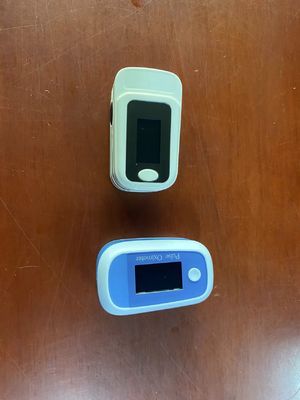

OLED Fingertip Pulse Oximeter Quick Details:
Photoelectric Oxyhemoglobin Inspection Technology is adopted in accordance with Capacity Pulse Scanning & Recording Technology, the OLED fingertip Pulse Oximeter can be used in measuring the pulse oxygen saturation and pulse rate through finger. The product is suitable for being used in family, hospital, oxygen bar, community healthcare, physical care in sports (It can be used before or after doing sports, and it is not recommended to use the device during the process of having sport) and etc.
• Colorful OLED display, 6 display modes, manual four direction adjustable
• SpO2 and pulse monitoring, and Waveform display
• Low-power consumption, continuously work for 20 hours
• Small in size, light in weight, and convenient to carry
• Pulse waveform display
• The display mode can be changed
• Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage
• Automatically power off function: when the device is under the state of measuring interface . it will automatically power off within 8 seconds if the finger falls out of probe
• Display format can be saved after power off
Hung-Kee OLED fingertip pulse oximeter brochure 20...
OLED Fingertip Pulse Oximeter Technical details:

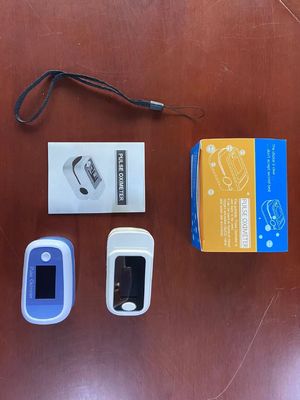

| Packing list | 1pc Fingertip oximeter,1pc Hang lace,1pc The operation manual |
| Display model | OLED screen |
| Spo2 Measurement range | 70-99% |
| Spo2 Measurement Accuracy | ±2% on the stage of 70%-99%, un-specified(<70%) for SPO2 |
| Resolution | ±1% |
| Low Perfusion | <0.4% |
| PR Measurement range | 30-240bpm |
| PR Accuracy | ±1BPM or ±1%(the larger one) |
| Power consumption | below 30mA |
| Automatic power-off | the product shuts down automatically after no signal for 8 seconds |
| Battery Type | Two 1.5V AAA alkaline batteries |
( for more detailed technical data please refer to above PDF brochure)
OLED Fingertip Pulse Oximeter Description:
500B/E OLED fingertip pulse oximeter is simple to use yet they offer user-friendly features, such as digital OLED displays, lightweight construction, and low power consumption.
• OLED display: Dual Color OLED display. Better shows the data.
• Multi-direction display: Rotatable multidirectional display. 4 directions, 6 modes, allow you to view your results in any direction.
• Alarm function: Set the alarm and beep according to your needs. There will be a warning once the measured values go beyond the setting. Know it immediately.
• With case: Small in volume, light in weight, convenient to carry. With a landyard and carrying case, convenient to use and to storage
• Integrated with SpO2 probe and processing display module
• Small in volume, light in weight and convenient in carrying
• Operation of the product is simple, low power consumption
• SpO2 value display
• Pulse rate value display, bar graph display
OLED Fingertip Pulse Oximeter Accessory:
Lanyard, user manual and battery
FAQ for OLED Fingertip Pulse Oximeter:
1. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
2.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
3.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
4. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
5.Q: Are you trading company or manufacturer?
A: We are factory which has over 14 years' manufacturing experience.
6.Q: What's the MOQ?
A: 1 unit.
7.Q: How to deal with the faulty?
A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free within 2 warranty years. Secondly, our after-sales department will periodically follow up customers.
8.Q: How can get the shipping cost?
A: You tell us your destination port or delivery address, we check the Sea Freight or Air Freight or express for you based on your requirement.
9.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
10.Q: How long is your delivery time?
A: 5 - 30 days after order confirmed. Based on the item and quantity.
11.Q: What is your terms of payment?
A: T/T, Western Union or PayPal; Trade terms: CIF
12.Q: Where's your general loading port?
A: Shenzhen or Hongkong port, as your demand.
