Product Details:
|
| Warranty: | 24 Months | OEM/ODM: | Accepted |
|---|---|---|---|
| Application: | Adult, Pediatric, Neonate, ICU, CCU, OR | Trade Terms: | CIF, Exworks |
| Functions: | End-tidal CO2 Measuring | Net Weight: | 89g |
| Color: | White | Power Supply: | Plug And Play |
| MOQ: | 1 Pc | Product Name: | Mainstream EtCO2 Sensor |
| Highlight: | Adult Etco2 Mainstream,Pediatric Etco2 Mainstream,Monitor mainstream etco2 |
||
Mainstream EtCO2 Sensor Veterinary multiparameter monitor cardiac patient monitor sensor etco2 veterinary monitor
End-tidal CO2 sensor mainstream module ICU/OR monitoring EtCO2 module 2 year warranty MCD-09

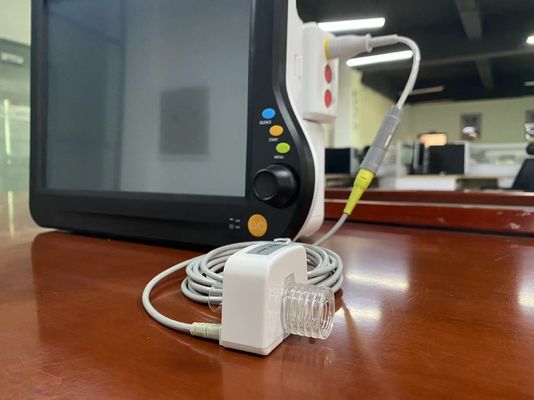

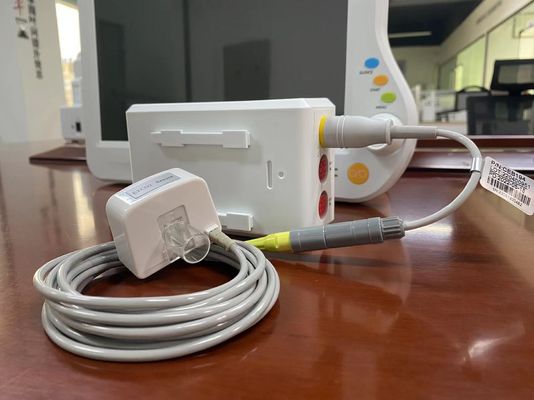

Mainstream EtCO2 Sensor Quick Details:
The model MCD-09 Mainstream EtCO2 Sensor is a stable and reliable end-tidal CO2 module with high integrity, developed by Hung-kee, adopting the non-dispersive infrared technology with two wavebands, the latest microprocessor and digital signal processing technique, and proven concentration algorithm. The module can accurately measure the concentration of the end-tidal CO2, the concentration of the inhaled CO2, respiratory rate, etc. with the CO2 curve diagram in a fast and exact manner. This mainstream EtCO2 sensor is perfectly applicable to person at different age group, such as baby, child and adult. The sampling flow rate is setup on the upper computer, and the minimum rate can be lowered to 50ml/min. The standard RS232 communication interface can help to quickly integrate the model MCD-09 mainstream EtCO2 sensor with the monitor or other medical systems which need CO2.
With the stability, flexibility and easy to use as the built in essence, MCD-09 is your ideal choice for your capnography subsystem.
1. Uses non-dispersive infrared technology to measure EtCO2 from respiratory gases
2. Provides both mainstream and sidestream EtCO2 capabilities in the same unit
3. Supports adult, pediatric and neonatal patients
4. Real time CO2 monitoring and data upload
5. Dual wavelength, non-dispersive infrared(NDIR)
6. With fast electrical modulation MEMS IR source, moving part was avoid and long lifetime was achieved
7. Includes temperature control system, to prevent airway adapter condensing
8. Barometer pressure and Gas temperature compensation
9. Patent on calibration algorithm, no routine user calibration required
10. Small size and lightweight
Hung-Kee EtCO2 brochure 2022.01.pdf
Mainstream EtCO2 Sensor Technical details:
| Transducer Type | Mainstream CO2 Sensor |
| Principle of Operation | Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts. |
| Energy Emitting Device | High efficiency IR source |
| Energy Detecting Device | Frequency stable thermopile |
| CO2 Measurement Range | 0% to 20% (0 to 150mmHg) |
| CO2 Resolution | 0.1 mm Hg 0 to 49 mm Hg |
| CO2 Accuracy | ±2 mm Hg @ < 5.0% CO2 (at BTPS) < 10% of reading @ > 5.0%CO2(at BTPS) |
| Dimensions | 50mm*22mm*36mm |
| Weight | < 40g |
| Respiration Rate Range | 3 to 150 Breaths Per Minute (BPM) |
| Respiratory Rate Accuracy | 1% of reading ±1 breath |
| Calibration | No routine user calibration required. An airway adapter zero is required |
| Data Interface | Highly configurable serial digital interface (TTL/RS232 Level) |
| Data Output | CO2 gas concentration (mmHg), End-tidal CO2, Inspired CO2, Respiratory Rate. |
| Input Voltage | 5.0 VDC ±5% |
| Power Consumption | 1000mW |
| Warmup Time | 10 seconds |
| Response Time | 10mS |
| Operating Temperature | 5℃ to 55℃ |
| Shipping/Storage Temperature Range | -40℃ to 70℃ |
( for more detailed technical data please refer to above PDF brochure)
Mainstream EtCO2 Sensor Description:
The Hung-kee EtCO2 capnograph respiratory CO2 Module provides mainstream and sidestream measuring capabilities, enables continuous respiratory monitoring to help reduce risks of opioid-induced respiratory depression of adult, pediatric and neonatal patients. The module uses a lightweight, reusable sensor and non-dispersive infrared technology to measure end-tidal (expired) CO2 in respiratory gases – giving you a highly accurate patient monitoring tool.
1.Long-term stability, non-dispersive infrared technology with two wavebands
2.Long service life, infrared black body light source with MEMS
3.Accurate Results, with built-in temperature, atmospheric pressure, compensation algorithm for the balance gas
4.Calibration-free, patented calibration algorithm without the need for calibration
5.Low sampling flow rate, the minimum sampling flow rate 50ml/min
6.Easy to operate, plug-in measure
7.Low cost in usage and storage
8.Safety: IEC 60601-1:1990 approved, conformity with MDD 93/42/EEG and ANSI/AAMI EC53:1998
9.Ambient temperature: 0 to 40C(32 to 104F)
10.Relative humidity: 15% to 95%
11.Materials: Quality TPU jacket cable; Medical PVC strain relief; Gold plated pins and Nylon plug
Mainstream EtCO2 Sensor Accessory:
Adult way adapter
FAQ for Mainstream EtCO2 Sensor:
1. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
2.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
3.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
4. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
5.Q: Are you trading company or manufacturer?
A: We are factory which has over 14 years' manufacturing experience.
6.Q: What's the MOQ?
A: 1 unit.
7.Q: How to deal with the faulty?
A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free within 2 warranty years. Secondly, our after-sales department will periodically follow up customers.
8.Q: How can get the shipping cost?
A: You tell us your destination port or delivery address, we check the Sea Freight or Air Freight or express for you based on your requirement.
9.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
10.Q: How long is your delivery time?
A: 5 - 30 days after order confirmed. Based on the item and quantity.
11.Q: What is your terms of payment?
A: T/T, Western Union or PayPal; Trade terms: CIF
12.Q: Where's your general loading port?
A: Shenzhen or Hongkong port, as your demand.
13.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
14.Q:Why Should We Buy From You Rather than from other suppliers?
A: Producing Stable Quality And Affordable Products Is Our Purpose! Hung-Kee has been producing medical devices for more than 14 years, we have rich experience in production and maintenance.
15.Q:For tenders, whether you can provide all necessary documents.
A. Yes. We win a lot of tenders by providing complete documents and helped our customers.
16. Q: How to proceed an order for portable patient monitor or other medical equipment?
A: 1st let us know your requirements or application.
2nd We quote according to your requirements or our suggestions.
3rd customer arrange payment for formal order.
4th We arrange the production.
17.Q:Are You A Manufacturer Or Trading Company?
A: We Are The Top 10 Manufacturer of ICU Equipment in China Since 2008.
18.Q:Do You Need Foreign Agent?
A: Surely Yes, We Warmly Welcome Foreign Clients To Be our Agent.
19.Q: How long is the warranty time?
A: 24 Months
20. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
