Product Details:
|
| Warranty Period: | 24 Months | OEM/ODM: | Acceptable |
|---|---|---|---|
| Application: | Adult, Chile, Neonate, Veterinary, Animals | Trade Terms: | CIF And Exworks |
| Functions: | End-tidal CO2 Measuring On Patients Or Veterinary | Net Weight: | 0.253KGs |
| Power Supply: | Plug And Play | Product Name: | Sidestream Capnograph EtCO2 Module |
| Model Type: | MCD-06 | Material: | Plastic |
| Highlight: | EtCO2 Sidestream Co2 Module,Capnograph Sidestream Co2 Module,Animals Sidestream Co2 Module |
||
Sidestream CO2 module sidestream EtCO2 sidestream EtCO2 sensor sidestream capnography monitor sidestream co2 monitoring
Sidestream CO2 module ICU/OR monitoring EtCO2 module 2 year warranty MCD-06
Sidestream CO2 Module Quick Details:

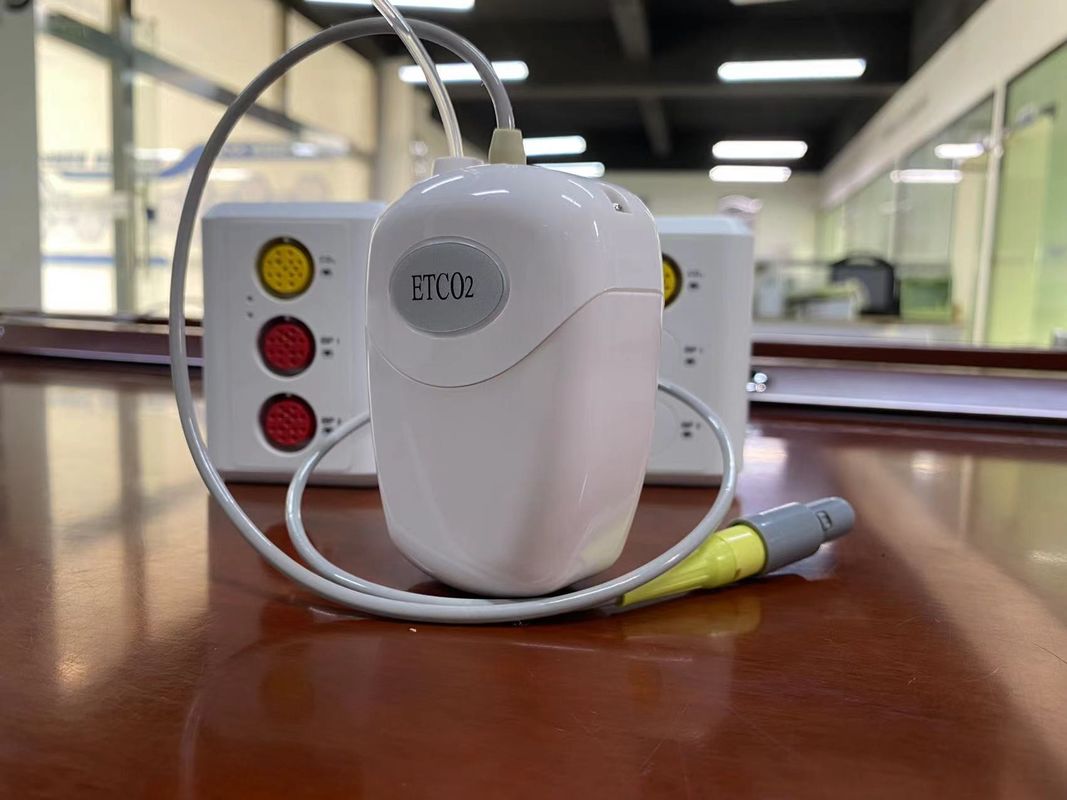

Model MCD-06 external sidestream CO2 module Advanced low flow side stream module; Easier to be operated on monitor and anesthesia machines.
The sidestream CO2 module that we have developed at Hung-kee is known as the MCD-06. This highly advanced module of EtCO2 is designed to be easy to use and deliver consistently accurate vital signs information every single time it’s used. Whether you need to monitor the exhaled breath of a patient under general anesthesia, or you are interested in having an end tidal CO2 monitor on Hand to identify ventilation-related problems before they become more serious, we are able to assist.
Features:
1. Display EtCO2,Respiratory Rate; Real-time C02, Fico2 value; Respiratory time, Expiratory time; Barometric pressure
2. Reliable filter cells that help prevent contamination, ensuring the data is as accurate as possible
3. It Is extremely user friendly and designed to be used with minimal training
4. Uses non-dispersive infrared technology to measure etCO2 from respiratory gases

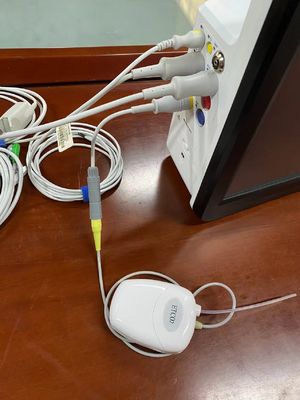

5. It Is highly portable and can be transported along with the medical monitor with
the patient as necessary
Hung-Kee EtCO2 brochure 2022.01.pdf
Sidestream CO2 Module Technical details:
| Transducer Type | Sidestream CO2 Sensor |
| Sampling Rate | 50 mL/minute ± 10 mL/minute |
| Principle of Operation | Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts in optics |
| Initialization Time | Capnogram displayed in less than 5 seconds at ambient temperature (e.g., 25°C); full specifications within 1 minute |
|
CO2 Measurement Range |
Selectable at 0 ~ 150 mm Hg 0 ~ 19.7% 0 ~ 20 kPa (at 760 mm Hg) Barometric Pressure supplied automatically by onboard chip |
| CO2 Resolution |
0.1mmHg, at 0 to 49 mm Hg 0.2 mmHg, at 50 to 150 mm Hg |
| CO2 Accuracy |
±2 mm Hg at 0 ~ 40 mm Hg ±5% of reading at 41 ~ 150 mm Hg ± 8% of reading at above 80 BPM |
| CO2 Stability | Drift over 4 hours shall not exceed 1 mm Hg max. |
| CO2 Noise |
RMS noise of the sensor shall be less than or equal to 0.25 mm Hg at 5% CO2 |
| Respiratory Rate Range | 2 to 150 Breaths Per Minute (BPM) |
|
Respiratory Rate Accuracy |
1% of reading ± 1 breath |
| Compensations |
Barometric Pressure 400 mmHg to 800 mmHg can be compensated by module automatically* Operator selectable O2 / N2O compensation |
| Calibration |
No routine user calibration required, but module can be calibrated by user |
| Sample line |
Single patient use sample line and inline drier line which eliminates water vapor of gas |
|
Nasal Sampling Kits for Non-intubated Patients |
Adult and pediatric nasal CO2 sampling lines |
| On-Airway Adapter KITS for Intubated Patients | Adult and pediatric sampling lines with T-fitting |
| Sample Kit Hours of Use |
Nasal Cannula and connecting sampling line up to 12 hours, for single patient use T-fitting (on-Airway Adapter) can be disinfected repeatedly Gas dryer line up to 1 year, do not need to be disinfected |
| Flow Control | Via Delta P measurement across a capillary tube |
| Scavenging Port | Yes |
| Voltage Requirements | 5.0 VDC ± 5% |
| Power Rating |
Rated input: In steady state: less than 0.5 Watts typical Maximum power: less than 1.1 Watts on Offset Calibration or sampling line occluded |
| Interconnection | Standard Lemo Redel 8-pin plastic |
|
Temperature and Humidity |
Operating: 5º to 55ºC, 10 to 90% RH, non-condensing Storage: -40º to 60ºC, <90% RH, non-condensing |
| Data Interface | RS232, bi-directional, 19200 baud. Standard N-8-1 |
| Data Output |
CO2 gas concentration (mm Hg), End-tidal CO2, Inspired CO2, Respiratory Rate, Gas and barometric pressure |
( for more detailed technical data please refer to above PDF brochure)
Sidestream CO2 Module Description:
The Hung-kee EtCO2 capnograph respiratory CO2 Module provides mainstream and sidestream measuring capabilities, enables continuous respiratory monitoring to help reduce risks of opioid-induced respiratory depression of adult, pediatric and neonatal patients. The module uses a lightweight, reusable sensor and non-dispersive infrared technology to measure end-tidal (expired) CO2 in respiratory gases – giving you a highly accurate patient monitoring tool.
MCD-06 sidestream CO2 module is a clinical equipment for continuous monitoring end-tidal CO2. Common Infrared absorption spectroscopy is divided into mainstream and sidestream according to gas sampling mode, and this module is designed for sidestream measurement. The sidestream CO2 module provides patient's physiological state for physician or nurse in time, which plays an important role in clinical anesthesia, CPCR(Cardiac Pulmonary Cerebral Resuscitation), ICU(intensive care unit) and emergency medicine, etc. It can be used under physician monitoring, and it is be applicable for adult, pediatric and neonatal, or veterinary clinic application.
1.Uses non-dispersive infrared technology to measure EtCO2 from respiratory gases
2.Provides both mainstream and sidestream EtCO2 capabilities in the same unit
3.Supports adult, pediatric and neonatal patients
4.Real time CO2 monitoring and data upload
5.Calibration-free, patented calibration algorithm without the need for calibration
6.Low sampling flow rate, the minimum sampling flow rate 50ml/min
Sidestream CO2 Module Accessory:
sampling line, nasal tube, water-trap column, airway adapter
FAQ for Sidestream CO2 Module:
1. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
2.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
3.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
4. Q: Do you have after-sales service?
A: Of course, every product we sell has after-sales service. If there is any problem with the product, you can tell us, and we will try our best to solve your problem.
5. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
6.Q: Are you trading company or manufacturer?
A: We are factory which has over 14 years' manufacturing experience.
7.Q: What's the MOQ?
A: 1 unit.
8.Q:Do your products support customization?
A: Yes
9.Q: What is the MOQ for your products?
A: The minimum order quantity of our products is 1 unit/pc.
10. Q: Can I get a discount?
A: According to the quantity of products you need to buy, we will give corresponding discounts, please consult our sales manager for specific discounts.
11.Q: How to deal with the faulty?
A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free within 2 warranty years. Secondly, our after-sales department will periodically follow up customers.
12.Q: How can get the shipping cost?
A: You tell us your destination port or delivery address, we check the Sea Freight or Air Freight or express for you based on your requirement.
13.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
14. Q: How long will it take me to receive my package?
A: The shipping time depends on the shipping method you choose. Different shipping methods take different shipping times. We will help you choose the most suitable shipping method for you.
15. Q: Can the product I purchased pass through customs smoothly?
A: For customers in some countries, we can handle customs clearance procedures on behalf of customers. For customers in other countries, we will prepare all the information before delivery. As long as the customer actively cooperates with the customs to deal with customs clearance issues, the package can be received smoothly.
16.Q: How long is your delivery time?
A: 5 - 30 days after order confirmed. Based on the item and quantity.
17.Q: What is your terms of payment?
A: T/T, Western Union or PayPal; Trade terms: CIF
