Product Details:
|
| Product Name: | Anesthesia Multi-gas Module | Functions: | To Detect CO2,N2O,ONE OF THE HAL/ENF/ISO/SEV/DES |
|---|---|---|---|
| Warranty Period: | 2 Years | Price Terms: | CIF, Exworks |
| Highlight: | Mainstream Gas Analyzer Anesthesia Machine,Multi Gas Analyzer Anesthesia Machine,Cardiac anesthetic gas analyzer |
||
Mainstream Anesthesia gas module anesthetic gas analyzer monitor Portable patient monitor ICU cardiac monitor
Mainstream Anesthesia multi-function Gas module MAG-08
Mainstream Anesthesia Gas Module Quick Details:

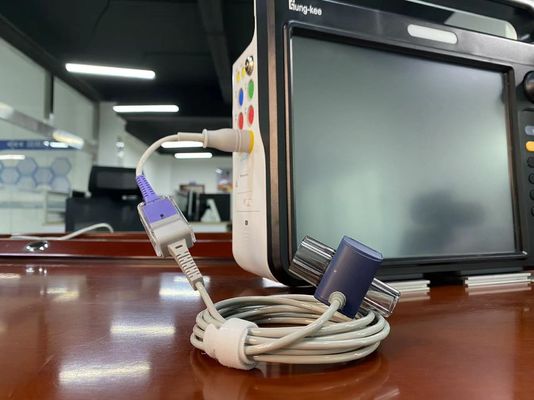

Mainstream Anesthesia Gas Module, simultaneously measure the concentration waveform and data of carbon dioxide, nitrous oxide and anesthetic gas, as well as respiratory rate. The types of anesthetic gas measured include halothane, enflurane, isoflurane, sevoflurane and desflurane. The user can manually select the type of anesthetic gas. This mainstream anesthesia gas module MAG-08 is perfect matched with our 15 inch ICU cardiac monitor or Cardiac patient monitor.
1. MAG-08 is the ideal low sampling-rate anesthesia solution for your patient monitoring system.
2. MAG-08 can show an accurate gas concentration with all respiration rates up to 150 breaths per minute.
3. Advanced technology enables MAG-08 to provide accurate measurement of CO2, N2O, anesthetic agents gas, respiration rate, inspiration time and expiration time. With a sampling-rate low to 50 mL/min.
4.MAG-08 is ideal for use on adult, pediatric and infant patients; patients undergoing procedural sedation; and short- term monitoring of intubated patients.
Features:
1.Reliable multi gas OEM solution
Equipped With Oxygen Battery as optional. Reliable multi gas OEM solution, compatible with a variety of protocols, so that your products can be quickly upgraded and assembled.
2.Mainstream Mode
Can simultaneously measure the concentration waveform and data of carbon dioxide, nitrous oxide and anesthetic gas, as well as respiratory rate. The types of anesthetic gas measured include halothane, enflurane, isoflurane, sevoflurane and desflurane. The user can manually select the type of anesthetic gas.
3.Plug And Play
The host does not need internal circuit, just a serial port. The data can be measured within 4 seconds after power on. It is suitable for adults, children and newborns, with excellent cost performance and low cost.
4.Automatic Pressure Compensation
There is an atmospheric pressure sensor inside, which is suitable for various altitude ranges. High-precision. Careful selection of infrared devices, hardware design and software algorithm, to achieve high signal-to-noise ratio, to ensure the measurement accuracy for temperature range of - 5-50 °C and in the range of 0 - 20%.
Hung-Kee Anesthesia Gas Module brochure 2022.11.pd...
Mainstream Anesthesia Gas Module Technical details:
| Temperature | -5~50℃ |
| Relative humidity | 10-90%(Non-condensing) |
| Atmospheric pressure | 55-115kpa |
| Power consumption | 150ma |
| Port and protocol | RS-232/ Standard E-8-1,38.4 kBaud,10 ms data interval (KM) or Customized according to customers' requirements |
| Co2 Measuring Range | 0~150mmHg |
| Accuracy | 0~40mmHg, inaccuracy≤± 2mmHg； 41~70mmHg, inaccuracy≤±5% of Reading； 70~100mmHg, inaccuracy≤± 8% of Reading； 101~150mmHg, inaccuracy≤±10% of Reading； |
| N₂O | |
| Measuring range | 0~100% |
| Inaccuracy | ±(2vol%+ 2% of Reading) |
| HAL, ENF, ISO | |
| Measuring range | 0-12% |
| Inaccuracy: | For 0~8%, ±(0,2 vol% + 5% of Reading) |
| For 8~12% | Unspecified |
| SEV | |
| Measuring range | 0~15% |
| Inaccuracy: | For 0~10%,±(0,2 vol%+5% of reading) |
| For 10~15% | unspecified |
| DES | |
| Measuring range | 0~25%； |
| Inaccuracy: |
For 0~18%,±(0,2 vol%+5% of reading); For 18~25%, unspecified. |
| Respiration Rate Range | 2~150 t/min |
| Inaccuracy | the bigger value of ±1% or 1t/min |
Mainstream Anesthesia Gas Module Description:
Our Anesthetic Gas Detector/Module can simultaneously measure the concentration waveform and data of CO2, N2O,anesthetic gas, as well as respiratory rate. The types of anesthetic gases measured include halothane, enflurane, isoflurane, sevoflurane and desflurane. The user can manually select the type of anesthetic gas.
1.State-of-the-art Non-dispersive infrared (NDIR) technology
2.Co2 N2O and anesthesia multigas monitoring
3.Real-time and continuous measurement of gas concentrations and respiratory rate
4.Sample rate low to 50 mL/min
5.Barometer pressure and temperature compensation
6.Fast warmup time ensures full accuracy within 2 minutes
7.Low power consumption less than 2W
Mainstream Anesthesia Gas Module Accessory:

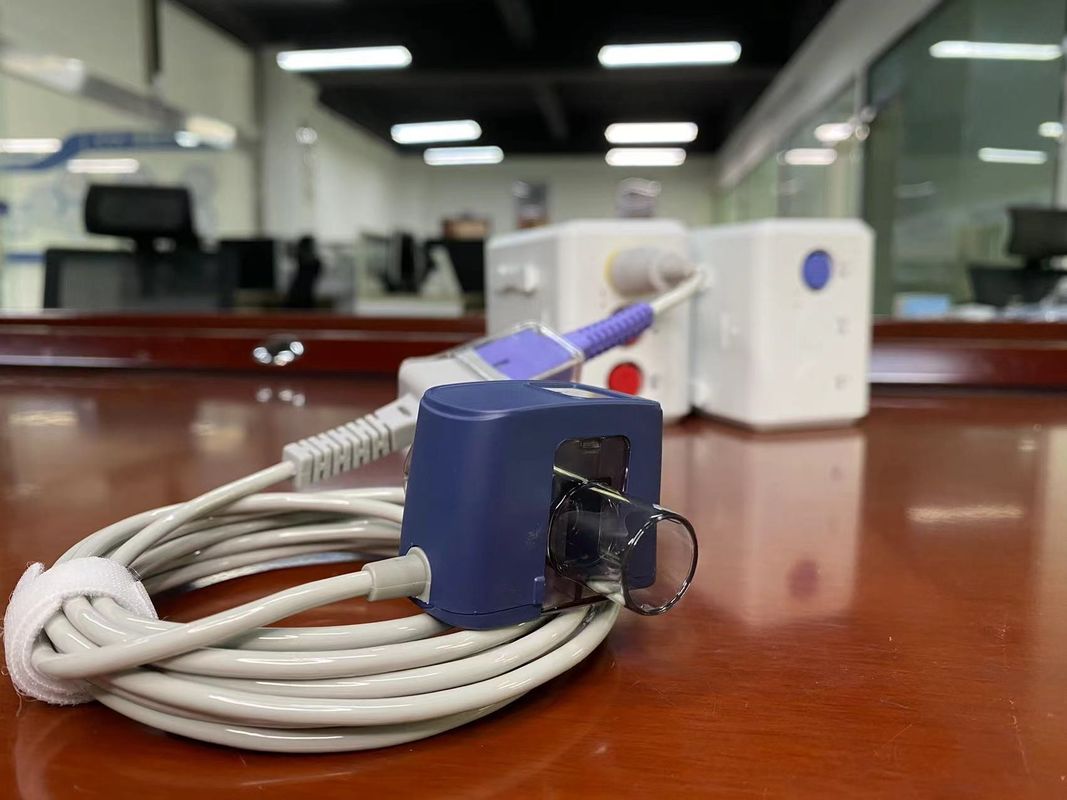

Multi-gas Adapter
FAQ for Mainstream Anesthesia Gas Module:
1. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
2.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
3.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
4. Q: Do you have after-sales service?
A: Of course, every product we sell has after-sales service. If there is any problem with the product, you can tell us, and we will try our best to solve your problem.
5. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
6.Q: Are you trading company or manufacturer?
A: We are factory which has over 14 years' manufacturing experience.
7.Q: What's the MOQ?
A: 1 unit.
8.Q:Do your products support customization?
A: Yes
9.Q: What is the MOQ for your products?
A: The minimum order quantity of our products is 1 unit/pc.
10. Q: Can I get a discount?
A: According to the quantity of products you need to buy, we will give corresponding discounts, please consult our sales manager for specific discounts.
