Product Details:
|
| Product Name: | Anesthesia Multi-gas Module | Functions: | To Detect CO2,N2O,ONE OF THE HAL/ENF/ISO/SEV/DES |
|---|---|---|---|
| Warranty Period: | 2 Years | Price Terms: | CIF, Exworks |
| Highlight: | Anesthesia Gas Module Mainstream,Anesthesia Gas Module Multifunctional |
||
Mainstream Anesthesia gas module anesthetic gas analyzer monitor Portable patient monitor ICU cardiac monitor

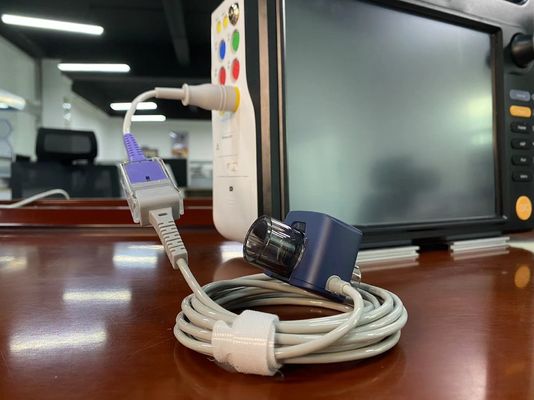

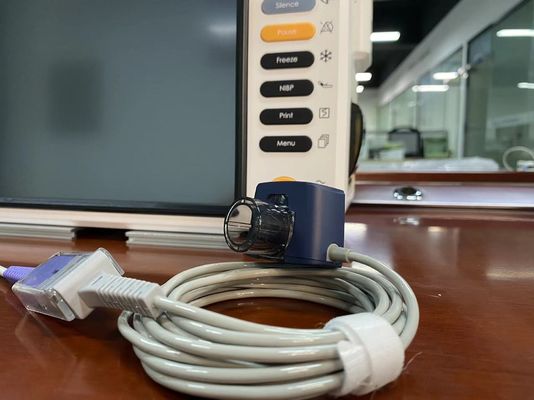

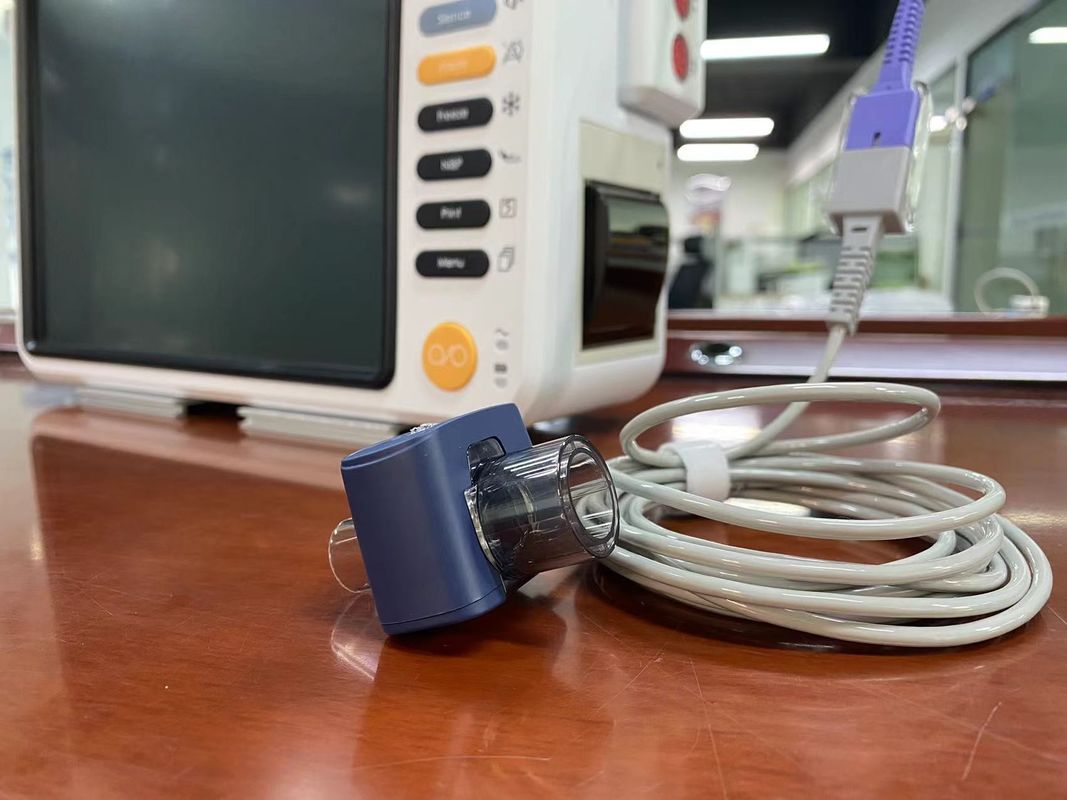

Mainstream Anesthesia multi-function Gas module MAG-08
Mainstream Anesthesia Gas Module Quick Details:
Mainstream Anesthesia Gas Module, simultaneously measure the concentration waveform and data of carbon dioxide, nitrous oxide and anesthetic gas, as well as respiratory rate. The types of anesthetic gas measured include halothane, enflurane, isoflurane, sevoflurane and desflurane. The user can manually select the type of anesthetic gas. This mainstream anesthesia gas module MAG-08 is perfect matched with our 15 inch ICU cardiac monitor or Cardiac patient monitor.
1) The host monitor only needs to have a standard Remo socket (8-pin) and an inside serial port without the need of extra space and circuit.
2) The user can easily select the anesthetic gas to be monitored, and the Module indicates the selected anesthetic gas.
3) Anti-fog and antifouling design prevents from patient’s moisture and secretions.
4) Durable and solid, without side-stream gas loop and pump, related breakdown is avoided.
5) Respiration wave shape is without distortion and delayed.
6) No sampling and small dead space suit neonate.
7) Barometric pressure automatic compensation to ensure the measurement accuracy within a wide pressure range of 400-860 mmHg.
8) Low cost Oxygen sensor can be cooperative used and oxygen concentration measure can be realized easily.
9) Comprehensive OEM solutions: multiple communication protocols to make the Module compatible with your patient monitors.
Features:
1.Reliable multi gas OEM solution
Equipped With Oxygen Battery as optional. Reliable multi gas OEM solution, compatible with a variety of protocols, so that your products can be quickly upgraded and assembled.
2.Mainstream Mode
Can simultaneously measure the concentration waveform and data of carbon dioxide, nitrous oxide and anesthetic gas, as well as respiratory rate. The types of anesthetic gas measured include halothane, enflurane, isoflurane, sevoflurane and desflurane. The user can manually select the type of anesthetic gas.
3.Plug And Play
The host does not need internal circuit, just a serial port. The data can be measured within 4 seconds after power on. It is suitable for adults, children and newborns, with excellent cost performance and low cost.
4.Automatic Pressure Compensation
There is an atmospheric pressure sensor inside, which is suitable for various altitude ranges. High-precision. Careful selection of infrared devices, hardware design and software algorithm, to achieve high signal-to-noise ratio, to ensure the measurement accuracy for temperature range of - 5-50 °C and in the range of 0 - 20%.
Hung-Kee Anesthesia Gas Module brochure 2022.11.pd...
Mainstream Anesthesia Gas Module Technical details:
| Temperature | -5~50℃ |
| Relative humidity | 10-90%(Non-condensing) |
| Atmospheric pressure | 55-115kpa |
| Power consumption | 150ma |
| Port and protocol | RS-232/ Standard E-8-1,38.4 kBaud,10 ms data interval (KM) or Customized according to customers' requirements |
| Co2 Measuring Range | 0~150mmHg |
| Accuracy | 0~40mmHg, inaccuracy≤± 2mmHg； 41~70mmHg, inaccuracy≤±5% of Reading； 70~100mmHg, inaccuracy≤± 8% of Reading； 101~150mmHg, inaccuracy≤±10% of Reading； |
| N₂O | |
| Measuring range | 0~100% |
| Inaccuracy | ±(2vol%+ 2% of Reading) |
| HAL, ENF, ISO | |
| Measuring range | 0-12% |
| Inaccuracy: | For 0~8%, ±(0,2 vol% + 5% of Reading) |
| For 8~12% | Unspecified |
| SEV | |
| Measuring range | 0~15% |
| Inaccuracy: | For 0~10%,±(0,2 vol%+5% of reading) |
| For 10~15% | unspecified |
| DES | |
| Measuring range | 0~25%； |
| Inaccuracy: |
For 0~18%,±(0,2 vol%+5% of reading); |
| Respiration Rate Range | 2~150 t/min |
| Inaccuracy | the bigger value of ±1% or 1t/min |
Mainstream Anesthesia Gas Module Description:
This module is mainstream multigas module and its measurement gas compartment is one adaptor connecting with patient’s main gas loop, infrared light source and sensor locate two sides of the adaptor, therefore it is suitable for use in intubated patients. The Module provides EtCO2, FiCO2, respiratory rate (RR), the end tidal and fractional inspired concentrations of N2O, and the end tidal and fractional inspired concentrations of the selected anesthetic gas. The Module is to be connected to your patient monitors by a serial port.
The Module is connected to the patient’s respiration loop to monitor his narcosis, rehabilitation, and respiration status and the concentrations of the anesthetic gas. It can be used in intubation, sedation, surgery, ICU, emergency and critical care, to assess the patient’s respiration loop integrity, in order to ensure the safe use of anesthetic gases. The Module is suitable for adult, pediatric, and neonatal patients.
Mainstream Anesthesia Gas Module Accessory:
Multi-gas Adapter
FAQ for Mainstream Anesthesia Gas Module:
1. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
2.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
3.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
4. Q: Do you have after-sales service?
A: Of course, every product we sell has after-sales service. If there is any problem with the product, you can tell us, and we will try our best to solve your problem.
5. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
6.Q: Are you trading company or manufacturer?
A: We are factory which has over 14 years' manufacturing experience.
7.Q: What's the MOQ?
A: 1 unit.
8.Q:Do your products support customization?
A: Yes
9.Q: What is the MOQ for your products?
A: The minimum order quantity of our products is 1 unit/pc.
10. Q: Can I get a discount?
A: According to the quantity of products you need to buy, we will give corresponding discounts, please consult our sales manager for specific discounts.
11.Q: How to deal with the faulty?
A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free within 2 warranty years. Secondly, our after-sales department will periodically follow up customers.
12.Q: How can get the shipping cost?
A: You tell us your destination port or delivery address, we check the Sea Freight or Air Freight or express for you based on your requirement.
13.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
14. Q: How long will it take me to receive my package?
A: The shipping time depends on the shipping method you choose. Different shipping methods take different shipping times. We will help you choose the most suitable shipping method for you.
15. Q: Can the product I purchased pass through customs smoothly?
A: For customers in some countries, we can handle customs clearance procedures on behalf of customers. For customers in other countries, we will prepare all the information before delivery. As long as the customer actively cooperates with the customs to deal with customs clearance issues, the package can be received smoothly.
16.Q: How long is your delivery time?
A: 5 - 30 days after order confirmed. Based on the item and quantity.
