ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital

Certification
China Hung-Kee (China) Electronic Technology Co.,Ltd certification
China Hung-Kee (China) Electronic Technology Co.,Ltd certification
Customer Reviews
You are a very good person, and work for a good company Hung-Kee, best quality, best service, we will keep cooperating with you and your company. Thank you.

—— John Papageorgiou

Your products are excellent, we love it and our clients like them very much. New orders will come for you. Thank you my friend.

—— Ricardo Ribas

I'm Online Chat Now

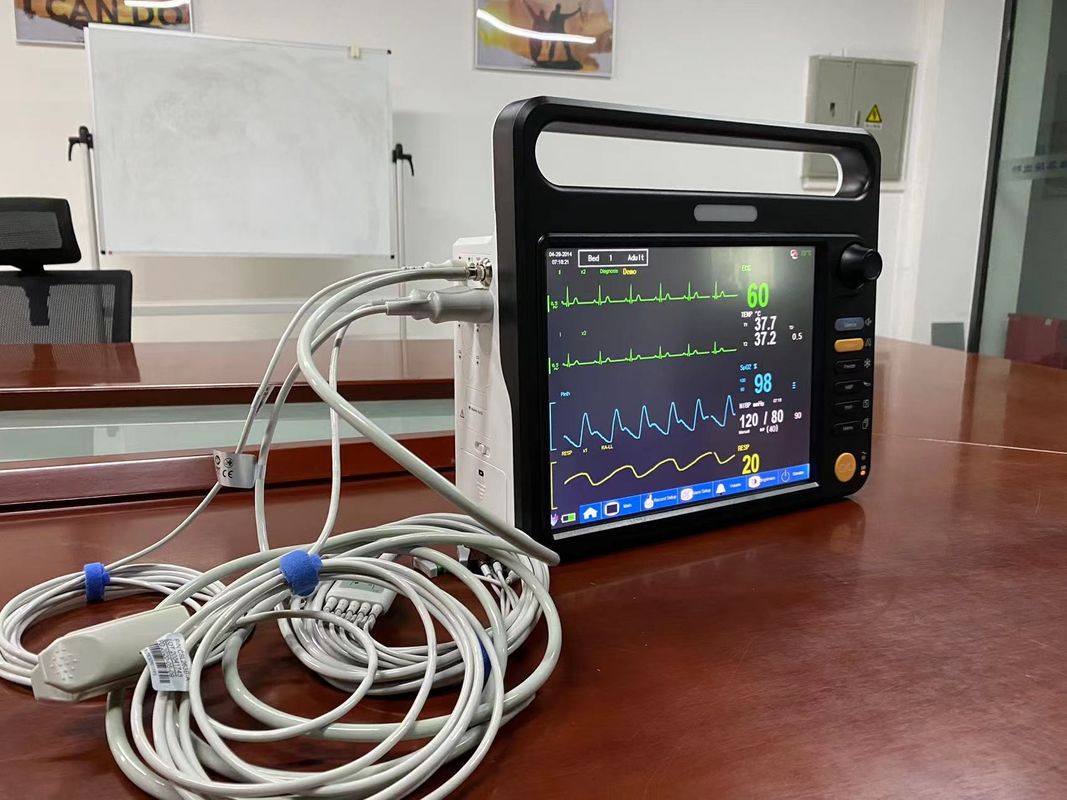

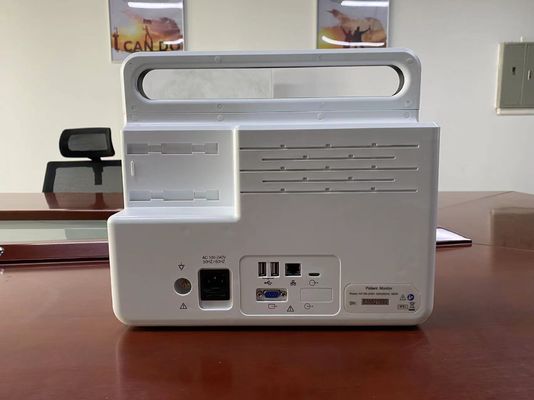

ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital

ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital
ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital
ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital

Large Image :  ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital

Product Details:
Place of Origin: P.R.China
Brand Name: Hung-Kee
Certification: IEC
Model Number: Beta 12S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Carton Size: 405.0 x 375.00 x 310.0mm (1 pcs/CTN), 0.05CBM G.W.: 5.50Kgs, N.W.: 4.00Kgs
Delivery Time: 5 to 30 days
Payment Terms: T/T
Supply Ability: 2000 units per month

ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital

Description
Standard: ECG, SPO2, NIBP, Temp, PR/HR Options: EtCO2, 2-ch IBP, C.O., Suntech NIBP, Masimo SPO2
Warranty: 24 Months OEM/ODM: Accepted
Screen Size: 12.1 Inch TFT LCD Application: Clinic And Hospital
Trademark: Hung-Kee Packing: Export Carton
Highlight:

ICU Multi Parameter Vital Signs Monitor

,

Cardiac Multi Parameter Vital Signs Monitor

,

Hospital icu vital signs monitor

Portable Patient Monitor ICU Cardiac Monitor Modular Patient Monitor Multi Parameter Patient Monitor



12.1" Portable Multi parameter Patient Monitor general ward and clinic monitoring bedside cardiac monitor Beta 12S



Portable Patient Monitor Quick Details:



This portable patient monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. You can view measurement trend graphs and alarming events to help you identify changes in the patient's physiological condition. The monitor can monitor ECG, RESP, TEMP, NIBP, SpO2 and PR. In addition, the monitor has options as CO2 and IBP.

The monitor, power supplied by 100-240V~,50/60Hz, adopts 12.1'' color TFT LCD displaying real-time date and waveform. It can synchronously display seven-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder.



Hung-Kee Patient monitor Brochure 2022.01.pdf



Portable Patient Monitor Details:

Table ECG Specifications

Parameter Specifications
CMRR (common moderejection ratio) >90 dB
HR measurement and alarmrange

Adult/Pedi: 15bpm - 300bpm

Neonate: 15bpm - 350bpm

HR accuracy 1bpm or 1%, whichever is greater
ECG channel Up to 7channels
ST range -2.0 mV - +2.0 mV
ST accuracy 0.02 mV or 10%, whichever is greater
Pacemaker pulse rejectioncapability Meets AAMI EC 13
ECG leads 5-lead
Alarm indication Visual and audible indicators
QRS indicator Audible tone and heart symbol flashes
ECG speed 12.5 mm/s, 25.0mm/s, 50.0 mm/s
ECG gain ×0.25,×0.5,×1,×2,×4, Auto
Bandwidth

Monitor mode: 0.5 Hz - 40 Hz ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital 0

Operation mode: 1.0 Hz - 25 Hz ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital 0

Diagnostic mode: 0.05 Hz - 100 Hz ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital 0

Tall T-wave rejection capability

Exceeds ANSI/AAMI EC 13 minimumrecommended

1.2 mV T-wave amplitude

Heart rate alarm response time <12s
Defibrillator protected Tested with5kV
Recovery time followingdefibrillation < 5s
Signal delay 0.5s
Auxiliary current (leads offdetection)

Active electrode:< 100nA

Reference electrode: < 900 nA



( for more detailed technical data please refer to above PDF brochure)





Portable Patient Monitor Description:



The Beta 12S portable patient monitor offers an optional plug-and-play module structure for more advanced monitoring functions such as EtCO2, aiding clinicians to identify signs of patient deterioration due to respiratory distress, and other options like 2-ch IBP, C.O., Suntech BP and Masimo SPO2 modules. Integrated in each Beta 12S patient monitor, 3 and 5- lead ECG, SpO2, NIBP, respiration, and temperature, offering a robust parameter platform to meet the needs of the ambulatory surgical care environment. Maximum 64 units portable patient monitor could be connected to the central monitoring system via wire network to form a network monitoring system.



ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital 3   ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital 4



Company Profile:



Hung-kee (China) Electronic Technology Co.,Ltd mainly focus on R&D, manufacturing and marketing of human and veterinary caring products.

Since year 2003, Thanks for its strong R&D team with more than 20-year working experience in medical industry, we have successfully developed the world’s most cost-effective and good quality medical products. As targeting becoming the most competitive medical supplier in the world, Hung-Kee's portfolio of coveted medical goods – human caring medical products and veterinary caring products -- propelled it past most competitors of its kind in China to become the world's most valuable technology company. Hung-Kee has built up two separated R&D teams focus on software ( 8 members, led by Mr.Kwok with 30 years software development experience) and hardware ( 5 members, led by Mr.Sheng with 19 years hardware development experience) development. By 2021, the company has 10 practical technology patents and 5 appearance patents, and at least 2 new patents will be obtained every year.



At the moment, we have developed 8 products lines including:

1) Multi-parameter patient monitor: portable patient monitor, modular patient monitor, cardiac patient monitor, neonate patient monitor, ICU cardiac monitor, 8 inch / 12.1 inch / 15 inch monitor

2) Veterinary multi-parameter Monitor: 8 inch/ 12.1 inch/ 15 inch, standard and semi-modular veterinary monitor; handheld SPO2 & EtCO2 monitor

3) Vital sign monitors: Desktop vital signs monitor, OLED Fingertip pulse oximeter, Handheld pulse oximeter, Handheld EtCO2 & SPO2 monitor, Cardio-Output Monitor, Depth of Anesthesia Monitor or Cerebral State Index, Intracranial pressure monitor, rSO2 or Cerebral Oximetry or NIRS

4) Gas detector: Mainstream EtCO2 sensor, sidestream CO2 module, Anesthesia main/side stream Multi-Gas modules

5) OB&GYN devices: Ultrasound Fetal Doppler

6) Respiratory Support devices: Portable Oxygen Concentrator; medical 5L Oxygen Concentrator

7) Emergency Devices: Automatic tourniquet system (A.T.S.)

8) Telemedicine: Remote Medical Caring Cloud Platform with bedside monitoring terminal

More new items will come…….



Hung-Kee's target is to be a professional medical devices supplier in fields of OEM, ODM and SKD services, and to be your loyal and reliable partner in a long run basis.



More new items will come in near future with fully Hung-Kee owned IP, and more added value will be produced to our esteemed partners around the world.



Hung-Kee's staffs are proud of its 19 years development, every steps presents Hung-Kee's determination to be the world’s No.1 cost-effective high quality medical products supplier.



Factory tour:

ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital 5



R&D:

ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital 6



Quality Certificate:

ICU Cardiac Multi Parameter Vital Signs Monitor For Clinic Hospital 7





Customer Service:

  1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
  2. Your inquiry related to our products or price will be replied in 24hrs.
  3. Keep informing our customer production process.
  4. Two-year warranty to main unit and one-year warranty to accessories.
  5. We will provide online technical support for the whole life.





FAQ for Portable Patient Monitor:



1.Q: How long is the warranty time?
A: 24 Months


2. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.


3. Q: Could you accept OEM order?
A: Yes, OEM and ODM are our main business.



4.Q: Do you work on SKD project?

A: Yes, we have more than 14 years experience on SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.


5. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
