Product Details:
|
| Standard: | ECG, NIBP, SPO2, 2Temp, PR/HR | Language: | English, Russia, Spanish, French, Polish, Portuguese, Turkey |
|---|---|---|---|
| SKD/OEM/ODM: | Acceptable | Functions: | Monitor, Diagnostic, Operation |
| Application: | Adult, Child, Neonate | Transport Package: | Export Carton |
| Option1: | CMS, Touch, Printer, Masimo SPO2 | Option2: | 2IBP, C.O., EtCO2, Suntech NIBP |
| Trade Terms: | CIF, Exworks | Payment Terms: | TT |
| MOQ: | 1 Unit | Delivery Time: | 3 To 30 Days Depends On Order Qty |
| Highlight: | MultiLanguage Cardiac Monitoring Machine,SPO2 Cardiac Monitoring Machine |
||
Modular Patient monitor used in ICU cardiac monitor neonate patient monitor modular patient monitor

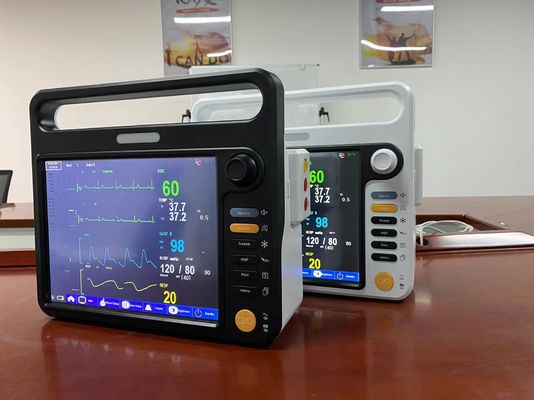

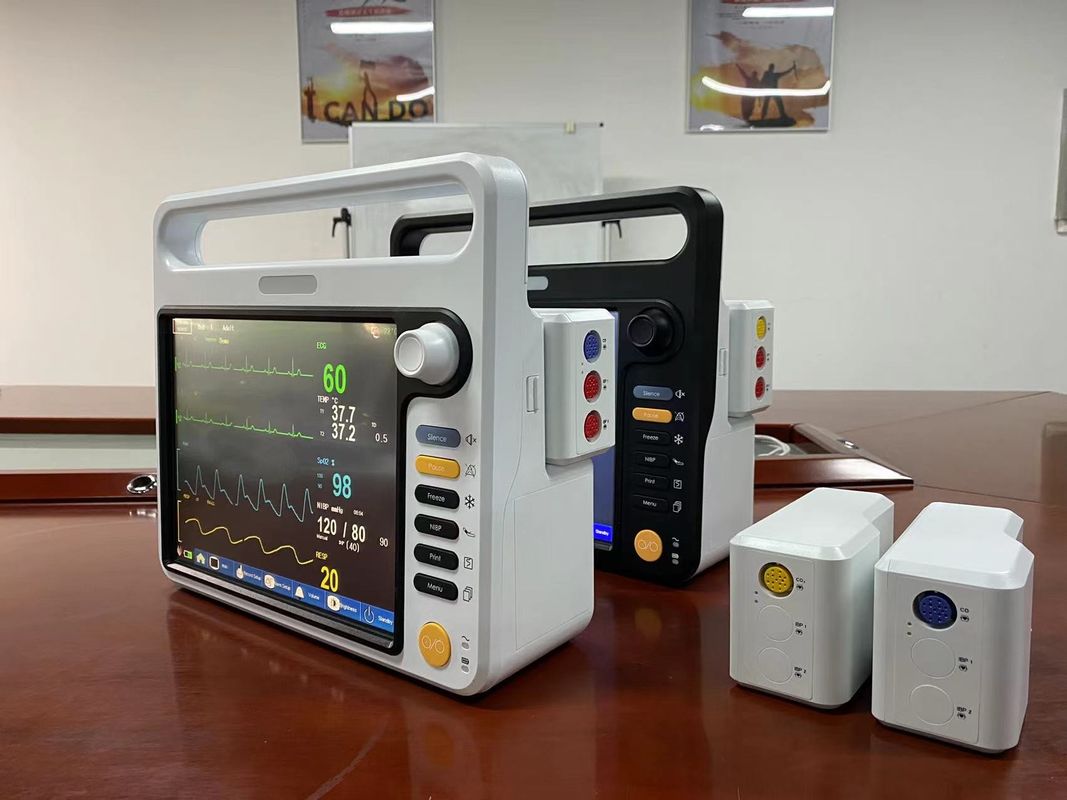

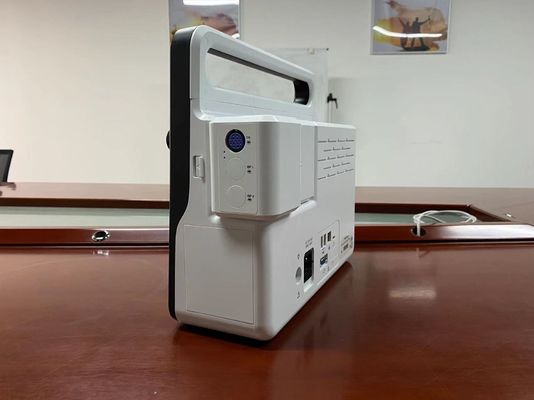

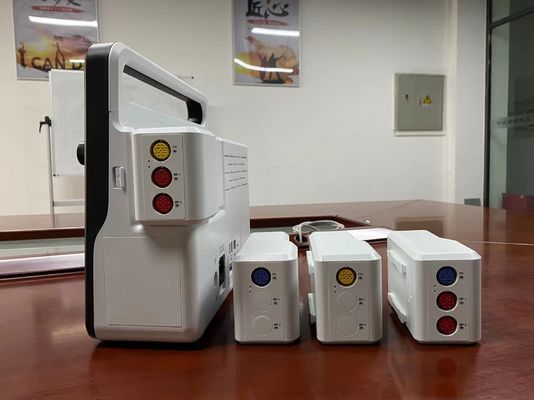

12.1" Portable Modular Patient Monitor general ward and clinic monitoring cardiac patient monitor Beta 12Plus
Modular Patient Monitor Quick Details:
| Optional | Touch Screen, Printer, 3/12-lead ECG, single/double IBP, double Temp., SunTech NIBP, Masimo Spo2, ETCO2, CO; |
| Multi-display interface | Standard, Large font, Trend Coexist, OxyCRG dynamic, 7 full ECG waveforms; |
| Language | Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, Portuguese, Italian); |
| Review | Maximum 168h tabular and graphic trends of all parameters, 400NIBP records and 60 alarm event; |
| Battery | Built-in 2 hours rechargeable lithium battery, and battery volume display. |
| Fanless | Use special fanless cooling technology in the device to provide a quiet environment for users; |
| Analysis | Real time S-T segment analysis, and 20 types of arrhythmic analysis; SpO2 Pitch Tone Variation, Drug Dose Calculation and Hemodynamic Calculations; |
Hung-Kee Patient monitor Brochure 2022.01.pdf
Modular Patient Monitor Technical details:
| Display size | 12.1''color TFT LCD |
| ECG sensitivity | > 200 µV (peak-peak date ) |
| Pacemaker pulse detection |
It can test the following pace-maker pulse : Extent : ±2 mV ～ ±700mV width: 0.1ms ～ 2ms Rise time : 10µs～100µs |
| ST measurement |
Range: -2.5mV ～ +2.5mV Measurement accuracy: within -0.8 mV～+0.8mV, the tolerance is ±0.02mVor ±10% Without this range, there is no definition |
| SpO2 Measuring Range | 0 ~ 100 % |
| NIBP measurement method | Pulse wave oscillation |
| TEMP Measuring and Alarm Range | 0 ~ 50° C |
| EtCO2 measurement | Side stream or main stream |
| EtCO2 Measurement Range | 0% to 20% (0 to 150mmHg) |
| EtCO2 Accuracy | ±2 mm Hg @ < 5.0% CO2 (at BTPS) < 10% of reading @ > 5.0%CO2(at BTPS) |
| Respiratory Rate Accuracy | 1% of reading ±1 breath |
( for more detailed technical data please refer to above PDF brochure)
Modular Patient Monitor Description:
The Beta 12Plus modular portable patient monitor designed to enhance patient care and support timely and accurate clinical assessment across general ward, daily checking and clinic environments. Users may select different parameter configuration according to different requirements.
1. Thinner and lighter in design, convenient and portable for users
2. Real-time S-T segment analysis, pacemaker detection
3. Various interfaces: standard screen, trend screen, oxy CRG screen, big front screen.
4. 3-level audio/visual alarms. Efficient resistance to interference of defibrillator and HF knife.
This portable patient monitor designed with standard parameters as ECG, RESP, TEMP, NIBP, SpO2 and PR , and extra parameters as CO2, 2-Ch IBP, C.O., Masimo SPO2, Suntech NBIP, printer and touch are available for meeting specific demand.
Modular Patient Monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
Modular Patient Monitor Optional Accessories:
Aluminum trolley, wall mount stand
.
FAQ for Portable Patient Monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
3. Q: How to proceed an order for portable patient monitor or other medical equipment?
A: 1st let us know your requirements or application.
2nd We quote according to your requirements or our suggestions.
3rd customer arrange payment for formal order.
4th We arrange the production.
4.Q:Are You A Manufacturer Or Trading Company?
A: We Are The Top 10 Manufacturer of ICU Equipment in China Since 2008.
5.Q:Do You Need Foreign Agent?
A: Surely Yes, We Warmly Welcome Foreign Clients To Be our Agent.
6.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
7.Q:Why Should We Buy From You Rather than from other suppliers?
A: Producing Stable Quality And Affordable Products Is Our Purpose! Hung-Kee has been producing medical devices for more than 14 years, we have rich experience in production and maintenance.
