Product Details:
|
| Standard: | ECG, NIBP, SPO2, 2Temp, PR/HR | Language: | English, Russia, Spanish, French, Polish, Portuguese, Turkey |
|---|---|---|---|
| SKD/OEM/ODM: | Acceptable | Functions: | Monitor, Diagnostic, Operation |
| Application: | Adult, Child, Neonate | Transport Package: | Export Carton |
| Option1: | CMS, Touch, Printer, Masimo SPO2 | Option2: | 2IBP, C.O., EtCO2, Suntech NIBP |
| Trade Terms: | CIF, Exworks | Payment Terms: | TT |
| MOQ: | 1 Unit | Delivery Time: | 3 To 30 Days Depends On Order Qty |
| Warranty: | 24 Months | Aftersales Service: | Provided |
| Highlight: | Modular Patient Monitor Fanless Cooling,Neonate Modular Patient Monitor,Neonate Patient Monitor Portable |
||
Modular Patient monitor used with neonate patient monitor portable patient monitor multi parameter patient monitor

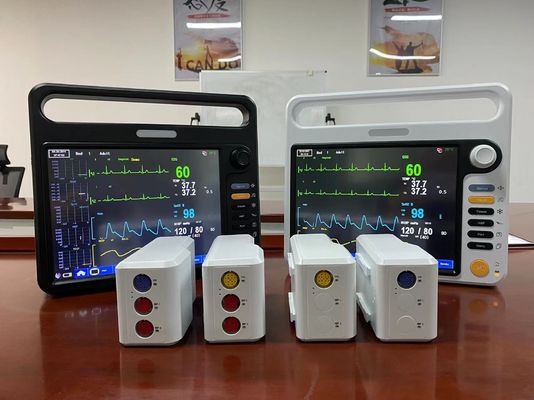

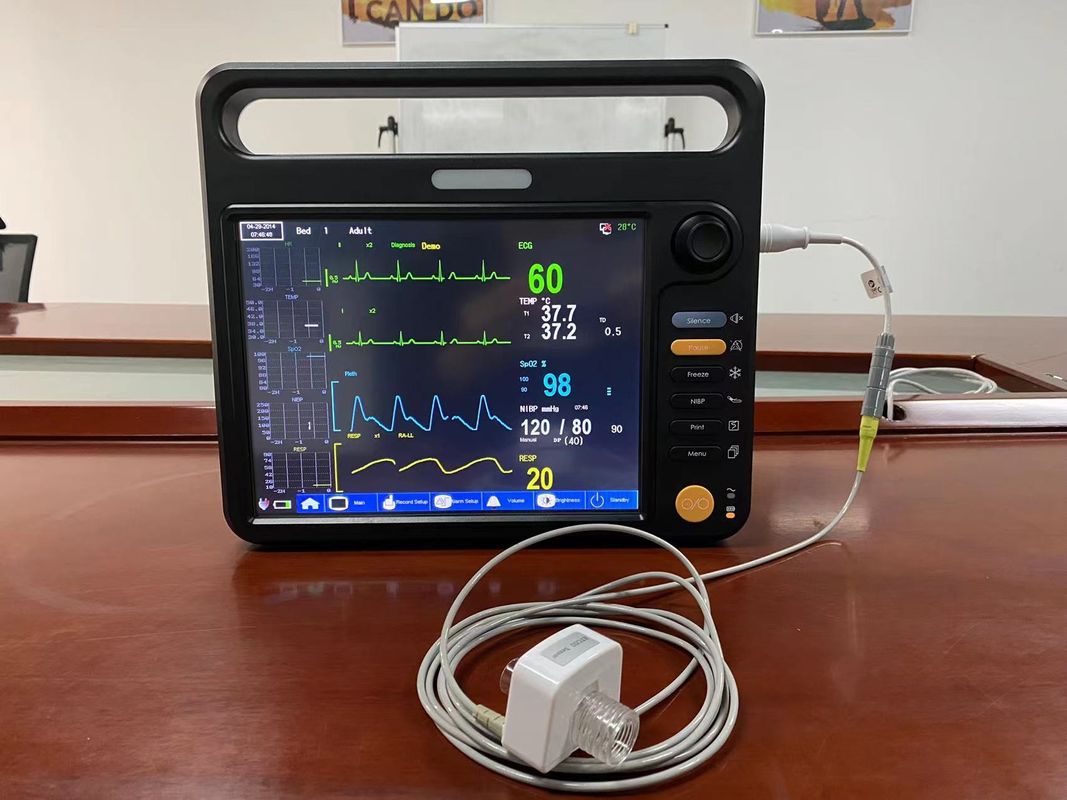

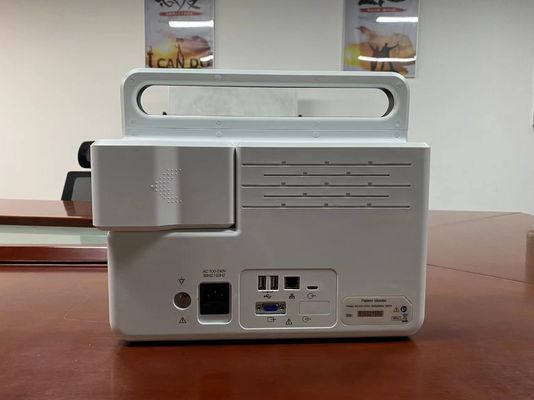

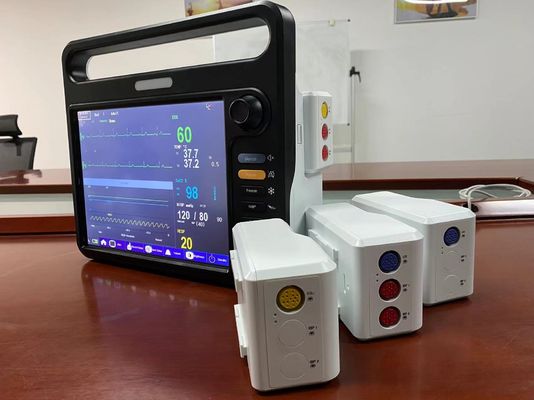

12.1" Portable Modular Patient Monitor general ward and clinic monitoring cardiac patient monitor Beta 12Plus
Modular Patient Monitor Quick Details:
| Optional | Touch Screen, Printer, 3/12-lead ECG, single/double IBP, double Temp., SunTech NIBP, Masimo Spo2, ETCO2, CO; |
| Multi-display interface | Standard, Large font, Trend Coexist, OxyCRG dynamic, 7 full ECG waveforms; |
| Language | Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, Portuguese, Italian); |
| Review | Maximum 168h tabular and graphic trends of all parameters, 400NIBP records and 60 alarm event; |
| Battery | Built-in 2 hours rechargeable lithium battery, and battery volume display. |
| Network | TCP/IP networking platform, connect with central monitoring system, maxmum 64 bedside patient monitors connected. |
| Fanless | Use special fanless cooling technology in the device to provide a quiet environment for users; |
Hung-Kee Patient monitor Brochure 2022.01.pdf
Modular Patient Monitor Technical details:
| Display size | 12.1''color TFT LCD |
| ECG sensitivity | > 200 µV (peak-peak date ) |
| Lead selection |
Standard 3 lead or 5 lead cable 3 lead RA,LA,LL,lead method:I,II,III 5-lead RA,LA,LL,RL,V,lead method:I,II,III,aVR,aVL,aVF,V |
| Pacemaker pulse detection |
It can test the following pace-maker pulse : Extent : ±2 mV ～ ±700mV width: 0.1ms ～ 2ms Rise time : 10µs～100µs |
| SpO2 Measuring Range | 0 ~ 100 % |
| NIBP measurement method | Pulse wave oscillation |
| TEMP Measuring and Alarm Range | 0 ~ 50° C |
| EtCO2 measurement | Side stream or main stream |
| EtCO2 Measurement Range | 0% to 20% (0 to 150mmHg) |
| Respiration Rate Range | 3 to 150 Breaths Per Minute (BPM) |
| Respiratory Rate Accuracy | 1% of reading ±1 breath |
( for more detailed technical data please refer to above PDF brochure)
Modular Patient Monitor Description:
The Beta 12Plus modular portable patient monitor designed to enhance patient care and support timely and accurate clinical assessment across general ward, daily checking and clinic environments. Users may select different parameter configuration according to different requirements. It can synchronously display seven-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder.
1. Thinner and lighter in design, convenient and portable for users
2. Various interfaces: standard screen, trend screen, oxy CRG screen, big front screen
3. 3-level audio/visual alarms
4. Protection against defibrillator interference
Modular Patient Monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
Modular Patient Monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for Portable Patient Monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
3.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
4. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
5.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
6.Q:Why Should We Buy From You Rather than from other suppliers?
A: Producing Stable Quality And Affordable Products Is Our Purpose! Hung-Kee has been producing medical devices for more than 14 years, we have rich experience in production and maintenance.
