Product Details:
|
| Standard: | ECG, NIBP, SPO2, 2Temp, PR/HR | Language: | English, Russia, Spanish, French, Polish, Portuguese, Turkey |
|---|---|---|---|
| SKD/OEM/ODM: | Acceptable | Functions: | Monitor, Diagnostic, Operation |
| Application: | Adult, Child, Neonate | Transport Package: | Export Carton |
| Option1: | CMS, Touch, Printer, Masimo SPO2 | Option2: | 2IBP, C.O., EtCO2, Suntech NIBP |
| Trade Terms: | CIF, Exworks | Delivery Time: | 3 To 30 Days Depends On Order Qty |
| Warranty: | 24 Months | Aftersales Service: | Provided |
| Highlight: | Patient Monitoring Instruments Multilingual,Neonate Patient Monitoring Instruments |
||
Modular patient monitor used with neonate patient monitor ICU cardiac monitor multi parameter patient monitor

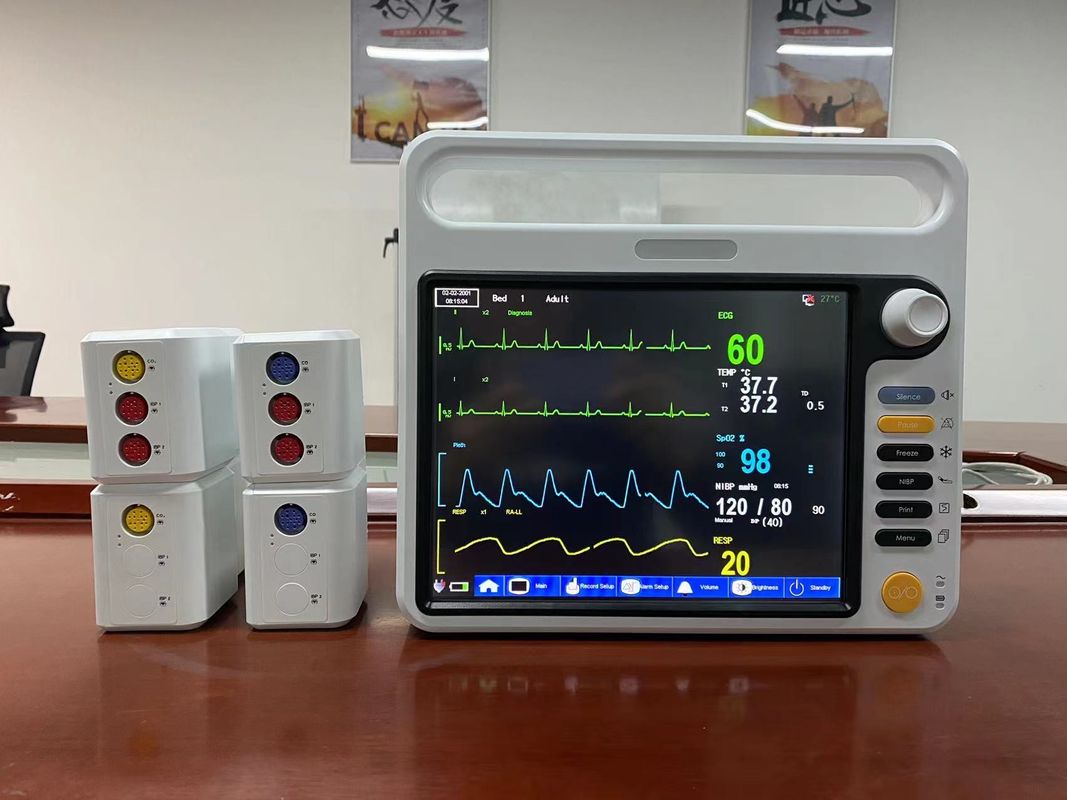

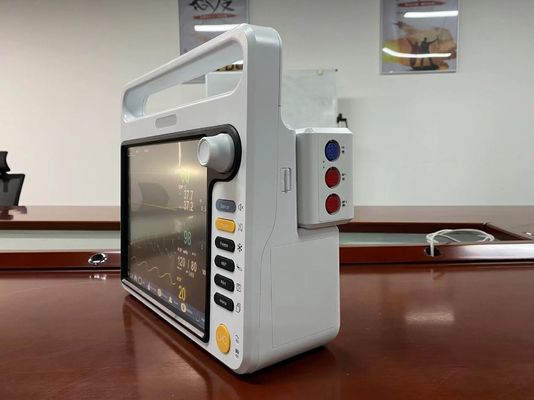

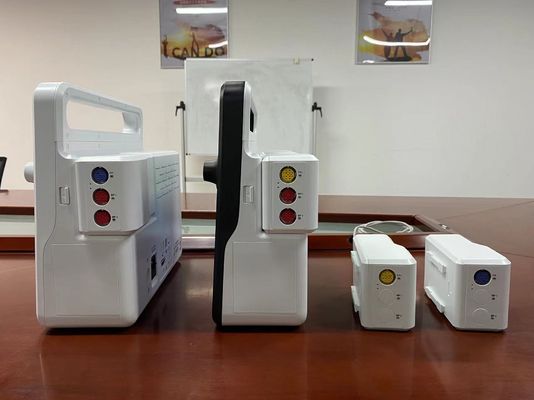

12.1" Portable Modular Patient Monitor general ward and clinic monitoring cardiac patient monitor Beta 12Plus
Modular Patient Monitor Quick Details:
| Language | Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, Portuguese, Italian); |
| Review | Maximum 168h tabular and graphic trends of all parameters, 400NIBP records and 60 alarm event; |
| Battery | Built-in 2 hours rechargeable lithium battery, and battery volume display. |
| Network | TCP/IP networking platform, connect with central monitoring system, maxmum 64 bedside patient monitors connected. |
| Fanless | Use special fanless cooling technology in the device to provide a quiet environment for users; |
| Analysis | Real time S-T segment analysis, and 20 types of arrhythmic analysis; SpO2 Pitch Tone Variation, Drug Dose Calculation and Hemodynamic Calculations; |
| Resistance to interference | Efficient resistance to interference of defibrillator and HF knife; |
Hung-Kee Patient monitor Brochure 2022.01.pdf
Modular Patient Monitor Technical details:
| Display size | 12.1''color TFT LCD |
| ECG sensitivity | > 200 µV (peak-peak date ) |
| Lead selection |
Standard 3 lead or 5 lead cable 3 lead RA,LA,LL,lead method:I,II,III 5-lead RA,LA,LL,RL,V,lead method:I,II,III,aVR,aVL,aVF,V |
| Pacemaker pulse detection |
It can test the following pace-maker pulse : Extent : ±2 mV ～ ±700mV width: 0.1ms ～ 2ms Rise time : 10µs～100µs |
| ST measurement |
Range: -2.5mV ～ +2.5mV Measurement accuracy: within -0.8 mV～+0.8mV, the tolerance is ±0.02mVor ±10% Without this range, there is no definition |
| SpO2 Measuring Range | 0 ~ 100 % |
| NIBP measurement method | Pulse wave oscillation |
| TEMP Measuring and Alarm Range | 0 ~ 50° C |
| Respiratory Rate Accuracy | 1% of reading ±1 breath |
( for more detailed technical data please refer to above PDF brochure)
Modular Patient Monitor Description:
1. Thinner and lighter in design, convenient and portable for users
2. Real-time S-T segment analysis, pacemaker detection
3. Various interfaces: standard screen, trend screen, oxy CRG screen, big front screen.
4. 3-level audio/visual alarms. Efficient resistance to interference of defibrillator and HF knife.
Modular Patient Monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
Modular Patient Monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for Portable Patient Monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
3.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
4. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
