Product Details:
|
| Standard: | ECG, NIBP, SPO2, 2Temp, PR/HR | SKD/OEM/ODM: | Acceptable For All Models |
|---|---|---|---|
| Dimension: | 340.0 X 370.00 X 165.00mm | Net Weight: | 5.00 KGs |
| Trade Terms: | CIF, Exworks | Payment Terms: | TT, Western Union, PayPal |
| Language: | English, Russia, French, Polish, Spanish, Turkey, Portuguese | Power Supply: | 100~240V, 50/60Hz |
| Highlight: | SPO2 Medical Monitoring Devices,ECG Medical Monitoring Devices,2Temp Cardiac Monitoring Devices |
||
Modular patient monitor ICU cardiac monitor multi parameter patient monitor neonate patient monitor portable monitor

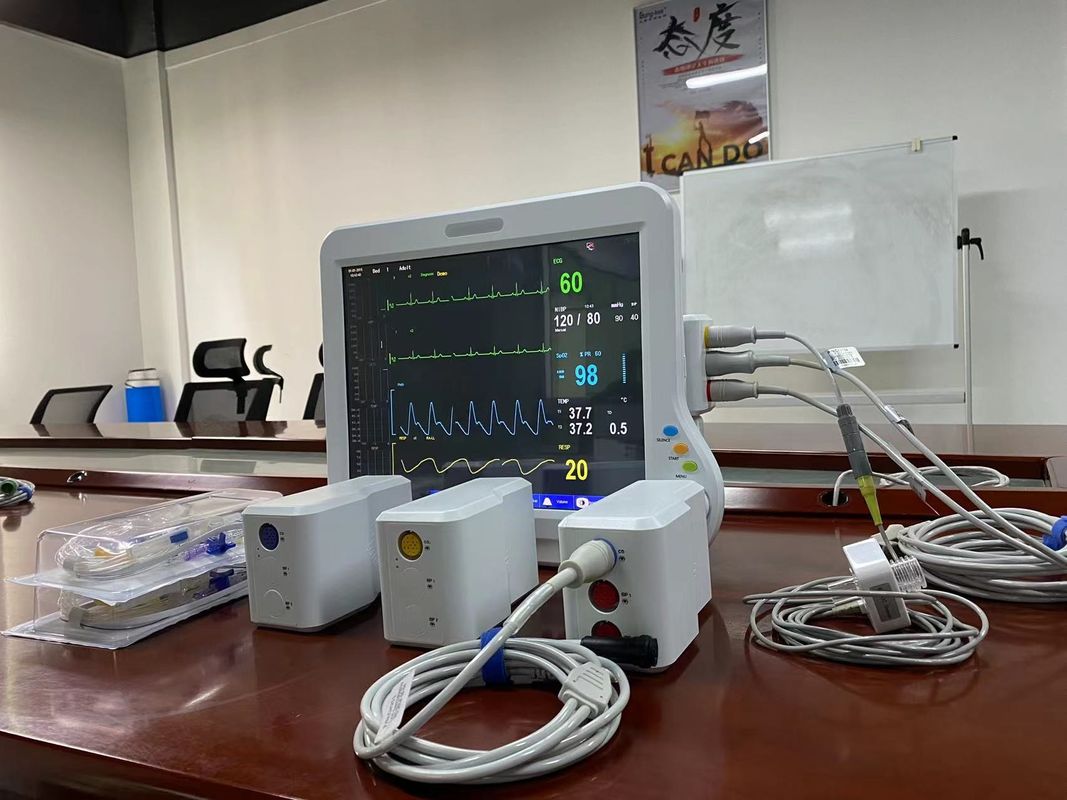

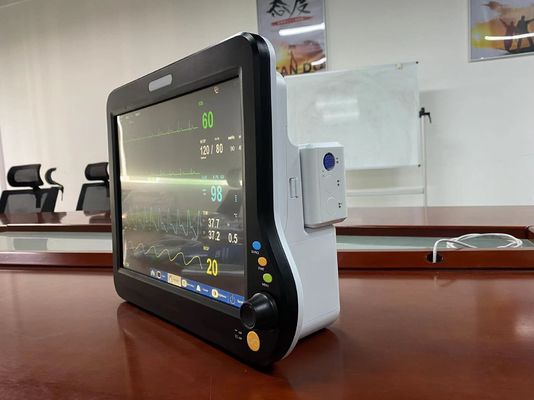

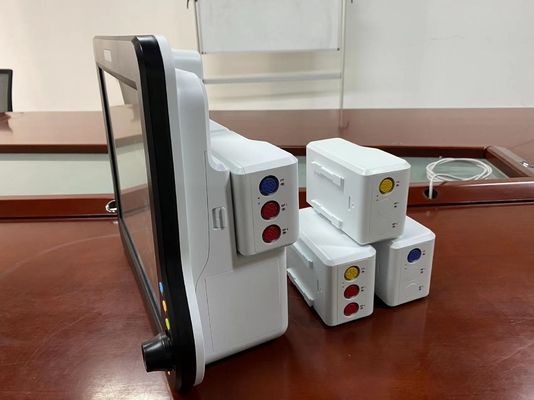

15" Portable Modular Multi-parameter Patient Monitor general ward and clinic monitoring cardiac monitor Beta 15Plus
Modular Patient Monitor Quick Details:
| Product Name | Modular patient monitor Beta 15Plus |
| Display Size | 15" high resolution(1024x768) color display |
| Physical size | 340.0 x 370.00 x 165.00mm |
| Net Weight | 5.3Kg |
| Language | Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, Portuguese, Italian); |
| Adjustment | Pitch tone selection and brightness adjustment |
| Network | TCP/IP networking platform, connect with central monitoring system, maximum 64 bedside patient monitors connected. |
| Standard Parameters | SpO2, PR, NIBP, ECG, RESP, TEMP |
| Option | SunTech NIBP, Masimo SPO2, 2ch-IBP, EtCO2, C.O., CMS, touch, printer, Trolley, Wall mount stand |
Hung-Kee Patient monitor Brochure 2022.01.pdf
Modular Patient Monitor Technical details:
Table Respiration Specifications
| Parameter | Specification |
| Work mode | Thoracic impedance |
| Respiration rate measurement and alarmrange | Adult: 0 rpm - 120 rpm Pediatric: 0 rpm - 150 rpm Neonate: 0 rpm - 150 rpm |
| Apnea alarm duration | 10 s - 40 s |
| Respiration gain | ×0.5,×1,×2 |
| Alarm delay | <10s |
( for more detailed technical data please refer to above PDF brochure)
Modular Patient Monitor Description:
The Beta 15Plus modular patient monitor paired with the multi-gas module, manually identifies and measures the inspired and expired values of CO2, N2O and 5 anesthetic agents providing a compact, yet powerful OR monitoring solution.
Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP:
1.ECG Heart rate(HR) ECG waveform Arrhythmia and ST-segment analysis
2.RESP Respiration rate(RR) , Respiration waveform
3. SpO2 Pulse oxygen saturation(SpO2) Plethysmogram(PLETH) waveform Pulse rate(PR) Bar graph
4. NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)
Modular Patient Monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
Modular Patient Monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for Modular Patient Monitor:
1. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
2.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
3. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
4. Q: How to proceed an order for portable patient monitor or other medical equipment?
A: 1st let us know your requirements or application.
2nd We quote according to your requirements or our suggestions.
3rd customer arrange payment for formal order.
4th We arrange the production.
5.Q:Are You A Manufacturer Or Trading Company?
A: We Are The Top 10 Manufacturer of ICU Equipment in China Since 2008.
6.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
