Product Details:
|
Standard: | ECG, NIBP, SPO2, 2Temp, PR/HR | SKD/OEM/ODM: | Acceptable For All Models |
---|---|---|---|
Dimension: | 340.0 X 370.00 X 165.00mm | Net Weight: | 5.00 KGs |
Option 1: | 2IBP, AG, EtCO2, Masimo SPo2, Printer, 2IBP | Option 2: | Center Monitoring System, Suntech NIBP, Touch |
Language: | English, Russia, French, Polish, Spanish, Turkey, Portuguese | Power Supply: | 100~240V, 50/60Hz |
Highlight: | Ambulance Vital Signs Monitor Multi Language,15 Inch Ambulance Vital Signs Monitor,OEM ambulance vital sign monitor |
Modular Patient monitor ICU cardiac monitor modular patinent monitor multi parameter patient monitor
15" Portable Modular Multi-parameter Patient Monitor general ward and clinic monitoring cardiac monitor Beta 15Plus
Modular Patient Monitor Quick Details:
Product Name | Modular patient monitor Beta 15Plus |
Display Size | 15" high resolution(1024x768) color display |
Standard Parameters | SpO2, PR, NIBP, ECG, RESP, TEMP |
Option | SunTech NIBP, Masimo SPO2, 2ch-IBP, EtCO2, C.O., CMS, touch, printer, Trolley, Wall mount stand |
Hung-Kee Patient monitor Brochure 2022.01.pdf
Modular Patient Monitor Technical details:
Table NIBP Specifications
Parameter | Specification |
Measuring method | Oscillometric method |
Measuring parameter | SYS, DIA, MAP, |
Unit | mmHg or kPa |
Work mode | Manual, Auto, Stat |
Cycle time | 1-5,10, 15, 30, 60, 90, 120, 180, 240, 480 minutes |
SYS range |
Adult: 40 mmHg -270mmHg (5.3 kPa - 36.0kPa) Pediatric: 40 mmHg - 200mmHg (5.3kPa - 26.7kPa) Neonate: 40 mmHg - 135mmHg (5.3kPa - 18.0kPa) |
DIA range |
Adult: 10mmHg - 210mmHg (1.3kPa - 28.0kPa) Pediatric: 10 mmHg - 150mmHg (1.3 kPa - 20.0kPa) Neonate: 10mmHg -100mmHg (1.3kPa -13.3kPa) |
MAP range |
Adult: 20 mmHg -230mmHg (2.7 kPa -30.7kPa) Pediatric: 20 mmHg -165mmHg (2.7 kPa -22.0kPa) Neonate: 20mmHg -110mmHg (2.7kPa -14.7kPa) |
NIBP accuracy | ±0.80kPa(±8mmHg) |
Cuff pressure range |
Adult/pediatric: 0 mmHg - 300 mmHg (0 kPa - 40.0 kPa) Neonate: 0 mmHg - 150 mmHg (0 kPa - 20.0 kPa) |
Deflation pressure | 30 mmHg above the last measured systolic value |
Alarm delay | <10s |
( for more detailed technical data please refer to above PDF brochure)
Modular Patient Monitor Description:
The Beta 15Plus modular patient monitor paired with the multi-gas module, manually identifies and measures the inspired and expired values of CO2, N2O and 5 anesthetic agents providing a compact, yet powerful OR monitoring solution.
Main Features:
Patient Monitor adopts Oscillometry for NIBP measuring, Photoelectric Oxyhemoglobin Inspection Technology combining Capacity Pulse Scanning Recording Technology for Sp02 measuring. Systolic Pressure(SYS, Diastolic Pressure(DIA), Mean Pressure/MAP). Sp02 and Pulse rater.) can be accurately measured. Compact appearance, comprehensive functions, simple and convenient function, which is applicable for hospitals, community medical treatment and family.
Product Features :
Be applicable for adult, pediatric for all-round monitoring, easy operation and high cost performance.
Be applicable for medicine, Sargent, operating roam, ICU/CCU, emergency room, obstetrics and gynecology, pediatrics.

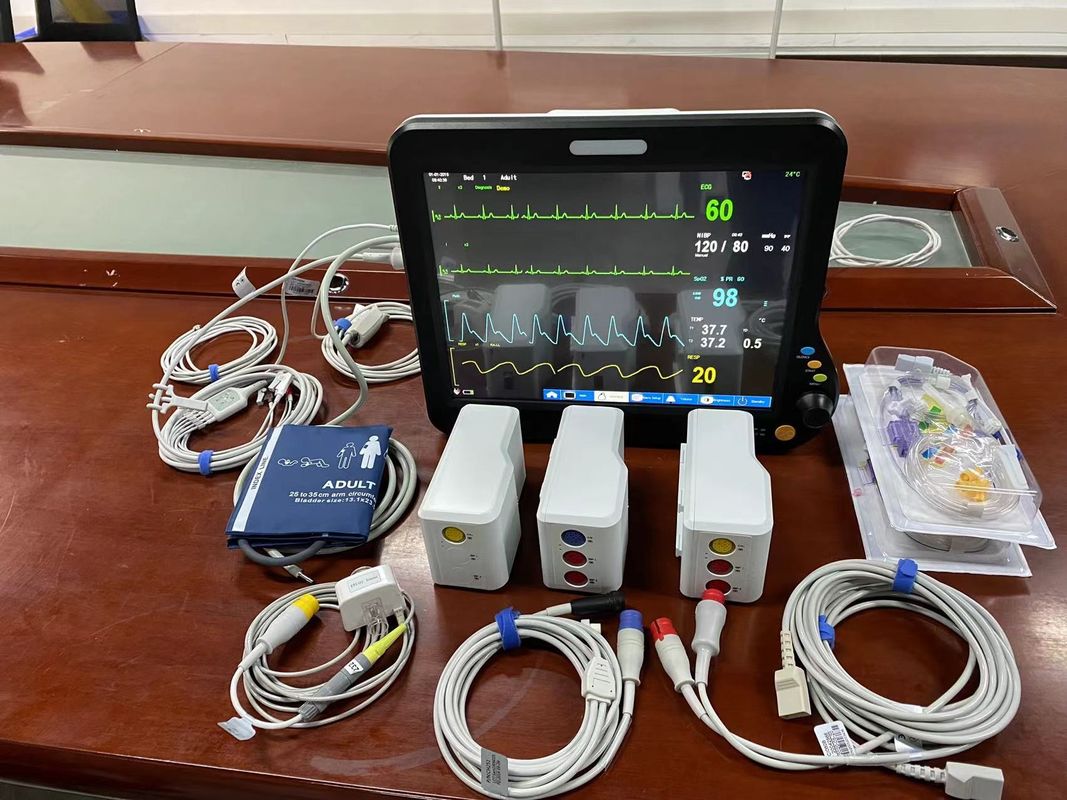

Modular Patient Monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
Modular Patient Monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for Modular Patient Monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
4.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
5.Q:Can the monitors display wave-forms and numerical data?
A: Yes, can display wave-forms and numerical data.
6. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
7.Q:How many waveforms can be displayed on the screen?
A: The screen can display up to a maximum of 7 wave-forms.
8. Q: How to proceed an order for portable patient monitor or other medical equipment?
A: 1st let us know your requirements or application.
2nd We quote according to your requirements or our suggestions.
3rd customer arrange payment for formal order.
4th We arrange the production.
9.Q:Are the batteries a cost option?
A: No, the battery is included in the basic price of the system.
10.Q:Are You A Manufacturer Or Trading Company?
A: We Are The Top 10 Manufacturer of ICU Equipment in China Since 2008.
11.Q:What types of batteries are used?
A: Both systems use a high capacity built-in rechargeable lithium battery.
12.Q:Do You Need Foreign Agent?
A: Surely Yes, We Warmly Welcome Foreign Clients To Be our Agent.
13.Q:Can the monitors support center monitoring system?
A: Yes, the monitors can connect the center monitoring system via internet line.
14.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
