Product Details:
|
| Standard: | ECG, NIBP, SPO2, 2Temp, Resp., PR/HR | Option 1: | Masimo SPo2, C.O., 2IBP, Suntech BP, EtCO2 |
|---|---|---|---|
| Option 2: | Printer, Center Monitoring System (CMS), Touch | Function: | Monitor, Diagnostic, Operation |
| Application: | Adult, Child, Neonate, OR, ICU | Warranty: | 24 Months/2 Years |
| Trade Terms: | CIF & Exworks | Payment Terms: | TT, Western Union |
| Screen: | Colorful TFT LCD 12.1 Inch | OEM/SKD: | Accepted |
| Highlight: | MultiParameter Neonate Patient Monitor,12.1 Inch Neonate Patient Monitor,Neonate Multi Parameter Patient Monitor |
||
Neonate patient monitor used with Multi parameter Patient monitor modular patient monitor portable patient monitor

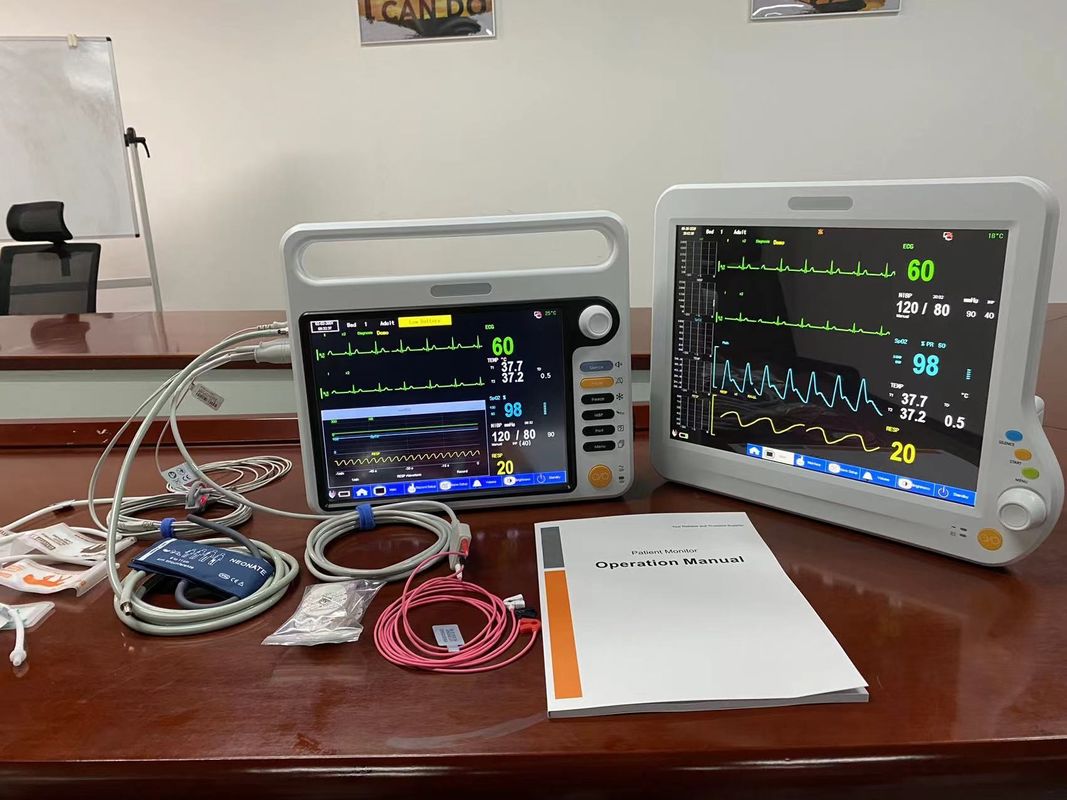

12.1" portable high acuity neonate Multi-parameter Patient Monitor neonatal monitoring cardiac monitor HighAcuity N12
Neonate Patient Monitor Quick Details:
| Product Name | Neonate Patient Monitor |
| Model | HighAcuity N12 |
| 5 parameters | 5-lead ECG, SpO2,NIBP, TEMP,RESP,PR,HR. |
| Size | 12.1 inch color TFT display ,7-lead ECG waveforms display in phase |
| Voltage | AC 100-240,50/60Hz |
| Optional | ETCO2 module; Build-in thermal printer; lithium battery; mobile stand/ wall mount, Suntech NIBP, 2-ch IBP, Masimo SPO2, center monitoring system |
| Function | Real time S-T segment analysis, and ARR analysis;Time delay switch-off function keep the monitor data restart monitor |
| Multi-display | Standard, Large font, Trend Coexis, OxyCRG dynamic,7 lead waveform |
| Trace | 5 waveforms(3 ECG, 1 SPO2 and 1 RESP) ,Sweep speed:12.5mm/s,25mm/s,50mm/s |
| Indicator | Power/battery indicator light ,QRS beep and alarm sound |
| Storage | NIBP: 400 groups ,Alarm: 60 groups ,Full disclosure waveforms: 3600S |
| Recorder | Build-in, thermal array ,Plethysmogram caveform:2 channels ,Record mode: manual, on alarm, time-defined ,Recording width: 50mm ,Printing speed: 50mm/s |
| Recording type | Frozen waveform record ,NIBP recall record ,Trend table record ,Alarm record ,Fixed -time record |
Hung-Kee Patient monitor Brochure 2022.01.pdf
Neonate Patient Monitor Technical details:
Table EtCO2 Specification
| Transducer Type | Sidestream CO2 Sensor |
| Sampling Rate | 50 mL/minute ± 10 mL/minute |
| Principle of Operation | Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts in optics |
| Initialization Time | Capnogram displayed in less than 5 seconds at ambient temperature (e.g., 25°C); full specifications within 1 minute |
| CO2 Resolution |
0.1mmHg, at 0 to 49 mm Hg 0.2 mmHg, at 50 to 150 mm Hg |
|
CO2 Accuracy
|
±2 mm Hg at 0 ~ 40 mm Hg ±5% of reading at 41 ~ 150 mm Hg ± 8% of reading at above 80 BPM |
( for more detailed technical data please refer to above PDF brochure)
Neonate Patient Monitor Description:
The HighAcuity N12 neonate patient monitor is part of Hung-Kee’s premier patient monitoring solution designed to enhance patient care and support timely and accurate clinical assessment across Emergency, Critical Care, and Operating Room environments in child or neonatal hospitals.
Main Features:
Patient Monitor adopts Oscillometry for NIBP measuring, Photoelectric Oxyhemoglobin Inspection Technology combining Capacity Pulse Scanning Recording Technology for Sp02 measuring. Systolic Pressure(SYS, Diastolic Pressure(DIA), Mean Pressure/MAP). Sp02 and Pulse rater.) can be accurately measured. Compact appearance, comprehensive functions, simple and convenient function, which is applicable for hospitals, community medical treatment and family.
Product Features :
Be applicable for adult, pediatric for all-round monitoring, easy operation and high cost performance.
Be applicable for medicine, Sargent, operating roam, ICU/CCU, emergency room, obstetrics and gynecology, pediatrics. Built-in rechargeable lithium battery for uninterrupted monitoring.
Compact and flexible appearance, easy for carrying and be suitable for indoor and outdoor monitoring. With user friendly interface. Visual and audible alarm for Systolic Pressure(SYS), Diastolic Pressure(DIA), Mean Pressure(MAP), Sp02 and Pulse rate(PR), and upper and lower limit of alarm can be set.
1. Drug concentration calculation and titration table functions.
2. Connect to Central Monitoring System by wired mode (maximum 64 portable patient monitor).
3. Heart rate variability (HRV) analysis function
4. NIBP measurement mode: Manual/AUTO/STAT, storage for 400-group NIBP data.
5. Durable
Monitor is made of ABS+PC Fireproof Materials.
6. Ultra-thin design
8.9cm thick, smaller footprint.

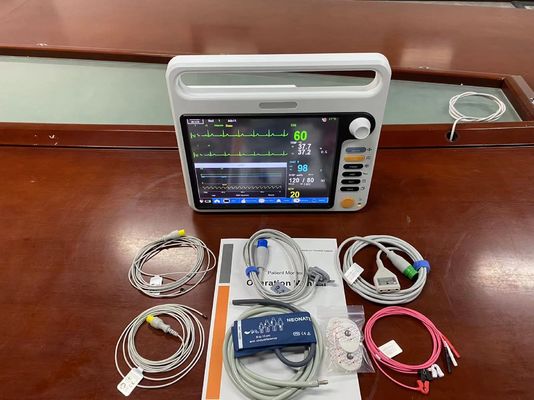

Neonate Patient Monitor Standard Accessories:
3-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
Neonate Patient Monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for neonate patient monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
3.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
4.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
5. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
6. Q: How to proceed an order for portable patient monitor or other medical equipment?
A: 1st let us know your requirements or application.
2nd We quote according to your requirements or our suggestions.
3rd customer arrange payment for formal order.
4th We arrange the production.
