Product Details:
|
| Standard: | 3 Leads ECG, NIBP, SPO2, 2Temp, Resp., PR/HR | Option 1: | Masimo SPo2, C.O., 2IBP, Suntech BP, EtCO2 |
|---|---|---|---|
| Option 2: | Printer, Center Monitoring System (CMS), Touch | Warranty: | 24 Months |
| Trade Terms: | CIF & Exworks | Payment Terms: | TT, Western Union |
| Screen: | Colorful TFT LCD 12.1 Inch | OEM/SKD: | Accepted |
| Highlight: | ECG Neonate Patient Monitor,SPO2 Neonate Patient Monitor,NIBP Patient Cardiac Monitor |
||

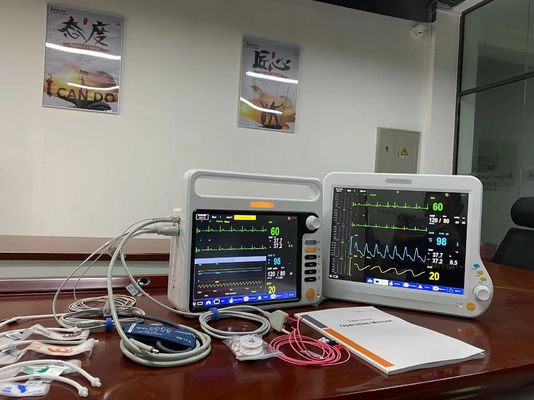

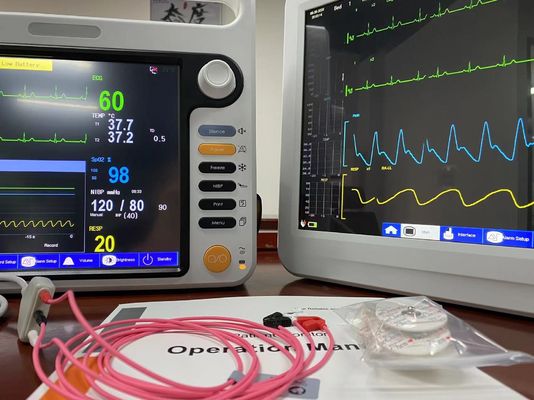

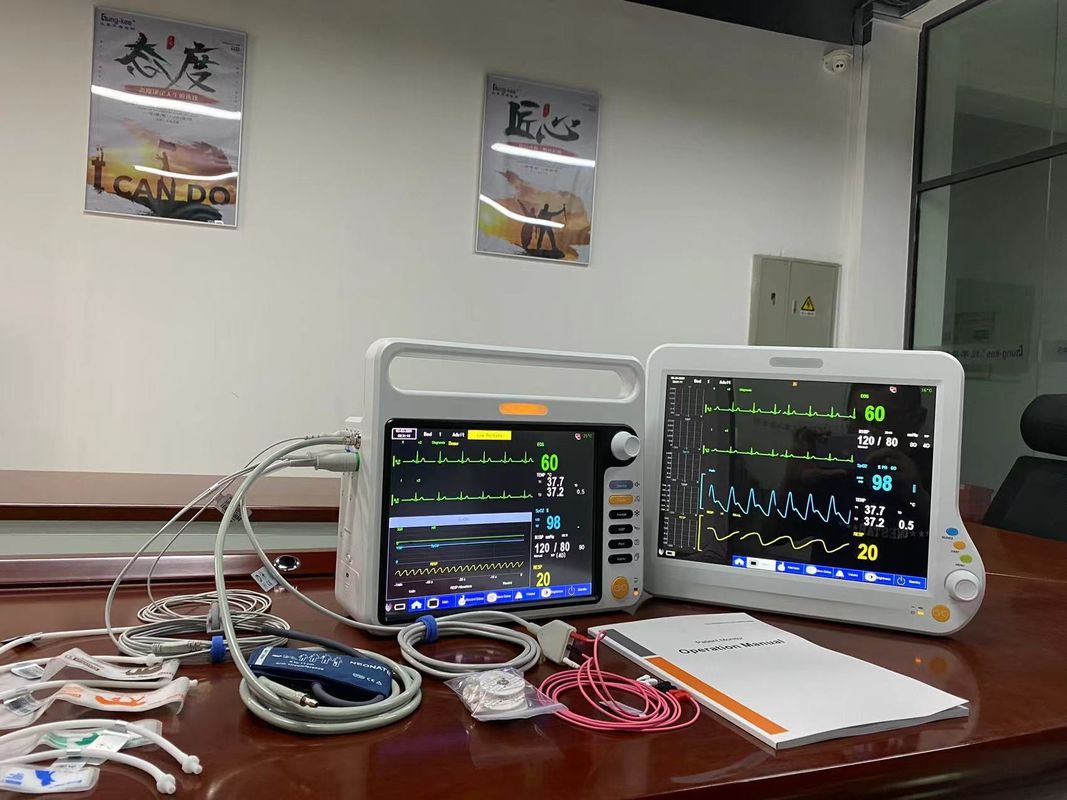

Neonate Patient monitor for ICU cardiac monitor multi parameter patient monitor modular patient monitor
12.1" portable high acuity neonate Multi-parameter Patient Monitor neonatal monitoring cardiac monitor HighAcuity N12
Neonate Patient Monitor Quick Details:
| Product Name | Neonate Patient Monitor |
| Model | HighAcuity N12 |
| 5 parameters | 5-lead ECG, SpO2,NIBP, TEMP,RESP,PR,HR. |
| Size | 12.1 inch color TFT display ,7-lead ECG waveforms display in phase |
| Voltage | AC 100-240,50/60Hz |
| Optional | ETCO2 module; Build-in thermal printer; lithium battery; mobile stand/ wall mount, Suntech NIBP, 2-ch IBP, Masimo SPO2, center monitoring system |
| Function | Real time S-T segment analysis, and ARR analysis;Time delay switch-off function keep the monitor data restart monitor |
| Multi-display | Standard, Large font, Trend Coexis, OxyCRG dynamic,7 lead waveform |
| Trace | 5 waveforms(3 ECG, 1 SPO2 and 1 RESP) ,Sweep speed:12.5mm/s,25mm/s,50mm/s |
| Storage | NIBP: 400 groups ,Alarm: 60 groups ,Full disclosure waveforms: 3600S |
| Recording type | Frozen waveform record ,NIBP recall record ,Trend table record ,Alarm record ,Fixed -time record |
Hung-Kee Patient monitor Brochure 2022.01.pdf
Neonate Patient Monitor Technical details:
| Display size | 12.1''color TFT LCD |
| ECG sensitivity | > 200 µV (peak-peak date ) |
| Lead selection |
Standard 3 lead or 5 lead cable 3 lead RA,LA,LL,lead method:I,II,III 5-lead RA,LA,LL,RL,V,lead method:I,II,III,aVR,aVL,aVF,V |
| Gain | ´0.25,´0.5,´1,´2,auto |
| ECG impedance | > 5 (Megohm) |
| ECG bandwidth |
Diagnostic mode 0.05～130Hz Monitoring mode 0.5～40Hz Operation mode 1～20Hz |
| Pacemaker pulse detection |
It can test the following pace-maker pulse : Extent : ±2 mV ～ ±700mV width: 0.1ms ～ 2ms Rise time : 10µs～100µs |
| ST measurement |
Range: -2.5mV ～ +2.5mV Measurement accuracy: within -0.8 mV～+0.8mV, the tolerance is ±0.02mVor ±10% Without this range, there is no definition |
| Range for Respiration | Adult 0~120rpm Pediatric and Neonatal 0~150rpm Apnea Alarm 10 ~ 40 S |
| Recovery time of base line | After Defibrillation< 3 second |
| SpO2 Measuring Range | 0 ~ 100 % |
| NIBP measurement method | Pulse wave oscillation |
| NIBP working mode | Pulse wave oscillation |
| TEMP Measuring and Alarm Range | 0 ~ 50° C |
| Temp channel qty | 2 channels |
| EtCO2 measurement | Side stream or main stream |
| EtCO2 measuring range |
CO2: 0-99 INS: 0-99 AWRR:0-99 |
| IBP channel’s qty | 2 channels |
| IBP pressure name | ART, PA, CVP, RAP, LAP, ICP, P1, P2. |
| IBP pressure measuring range |
ART 0 ～ 300 mmHg PA -6 ～ 120 mmHg CVP -50 ～ 40 mmHg RAP -50 ～ 40 mmHg LAP -50 ～ 40 mmHg ICP -50 ～ 40 mmHg P1, P2 -50 ～ 300 mmHg |
( for more detailed technical data please refer to above PDF brochure)
Neonate Patient Monitor Description:
The HighAcuity N12 neonate patient monitor is part of Hung-Kee’s premier patient monitoring solution designed to enhance patient care and support timely and accurate clinical assessment across Emergency, Critical Care, and Operating Room environments in child or neonatal hospitals.
Main Features:
Patient Monitor adopts Oscillometry for NIBP measuring, Photoelectric Oxyhemoglobin Inspection Technology combining Capacity Pulse Scanning Recording Technology for Sp02 measuring. Systolic Pressure(SYS, Diastolic Pressure(DIA), Mean Pressure/MAP). Sp02 and Pulse rater.) can be accurately measured. Compact appearance, comprehensive functions, simple and convenient function, which is applicable for hospitals, community medical treatment and family.
Product Features :
Be applicable for adult, pediatric for all-round monitoring, easy operation and high cost performance.
Be applicable for medicine, Sargent, operating roam, ICU/CCU, emergency room, obstetrics and gynecology, pediatrics. Built-in rechargeable lithium battery for uninterrupted monitoring.
Compact and flexible appearance, easy for carrying and be suitable for indoor and outdoor monitoring. With user friendly interface. Visual and audible alarm for Systolic Pressure(SYS), Diastolic Pressure(DIA), Mean Pressure(MAP), Sp02 and Pulse rate(PR), and upper and lower limit of alarm can be set.
1. Drug concentration calculation and titration table functions.
2. Connect to Central Monitoring System by wired mode (maximum 64 portable patient monitor).
3. Heart rate variability (HRV) analysis function
4. NIBP measurement mode: Manual/AUTO/STAT, storage for 400-group NIBP data.
Neonate Patient Monitor Standard Accessories:
3-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
Neonate Patient Monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for neonate patient monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
3.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
4.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
