Product Details:
|
| Standard: | 3/5 Leads ECG, NIBP, SPO2, 2Temp, Resp., PR/HR | Option 1: | Masimo SPo2, C.O., 2IBP, Suntech BP, AG, EtCO2 |
|---|---|---|---|
| Option 2: | Printer, Center Monitoring System (CMS), Touch | Warranty: | 24 Months |
| Screen: | Colorful TFT LCD 15 Inch | OEM/SKD: | Acceptable |
| MOQ: | 1 Unit | Application: | Various Animals , Pet Operation |
| Net Weight: | 5.00 KGs | Dimension: | 340.0 X 370.00 X 165.00mm |
| Trade Terms: | CIF And Exworks | Payment Terms: | TT, PayPal |
| Highlight: | Touch Veterinary Multiparameter Monitor,CMS Veterinary Multiparameter Monitor,15 Inch veterinary surgical monitors |
||
Veterinary multiparameter monitor veterinary vital signs monitor veterinary surgical monitors veterinary patient monitor

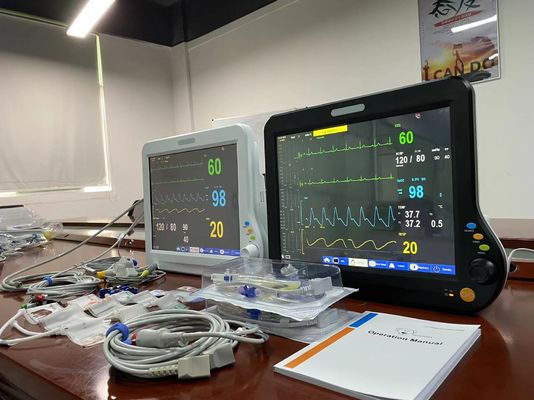

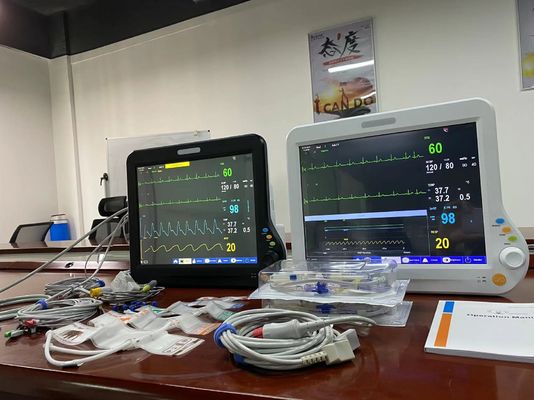

15“ Portable Veterinary Multi-parameter Monitor OR and clinic monitoring animal monitor 2 years warranty VET 1500Plus
Veterinary Multiparameter Monitor Quick Details:
VET 1500Plus veterinary Multi-parameter monitor is specially designed for animal use. It with characters including: accurately, simple and friendly operation display interface. Meets most of veterinary surgeon's clinical requirement.
This veterinary Multi-parameter monitor is used for monitoring, recording, and alarming of multiple physiological parameters of most of animals. The monitor stores data in trend and event databases. You can view measurement trend graphs and alarming events to help you identify changes in the patient's physiological condition.
1. 15 inch high resolution color TFT LCD display
2. Thinner and lighter in design, convenient and portable for users
3. Real-time S-T segment analysis, pacemaker detection
4. 3 Level audio & visual alarms
5. Efficient resistance to interference of defibrillator and HF knife
6. Up to 400 groups NIBP list, 168 hours ECG waveform recall;
7. 60 Alarm event records recall, 168 hours trend chart in storage;
8. Built-in rechargeable lithium battery , 2-hour working capability
9. Optional : Suntech NIBP, touch, 2IBP module, printer, EtCO2 mainstream, AG module
10.Center monitoring system available for connecting maximum 64 veterinary multiparameter monitors via internet wire
Hung-Kee Vet monitor Brochure 2022.01.pdf
Veterinary Multiparameter Monitor Technical details:
| Display mode | 15''color TFT LCD |
| Testing standard | IEC |
| ECG Lead Mode | 3/5-lead |
| Lead Selection | I , II , III , AVR, AVL, AVF, V |
| HR Range | 15 ~ 300 bpm |
| Range for Respiration | Adult 0~120rpm Pediatric and Neonatal 0~150rpm Apnea Alarm 10 ~ 40 S |
| SpO2 Measuring Range | 0 ~ 100 % |
| NIBP measurement method | Pulse wave oscillation |
| NIBP Measuring and Alarm Range | 0~300mmHg |
| TEMP Measuring and Alarm Range | 0 ~ 50° C |
| Paper Speed | 12.5mm/s,25mm/s, 50mm/s |
| EtCO2 measurement method | Side stream or main stream |
| EtCO2 measurement range |
CO2: 0-99 INS: 0-99 AWRR:0-99 |
| IBP channel qty | 2 |
| IBP pressure measuring range |
ART 0 ～ 300 mmHg PA -6 ～ 120 mmHg CVP -50 ～ 40 mmHg RAP -50 ～ 40 mmHg LAP -50 ～ 40 mmHg ICP -50 ～ 40 mmHg P1, P2 -50 ～ 300 mmHg |
| Requirement of power | AC 100~240V, 50/60Hz |
| Dimension | 340× 370× 165(mm) |
| Net weight | 5.32Kg |
( for more detailed technical data please refer to above PDF brochure)
Veterinary Multiparameter Monitor Description:
As veterinary medicine advances, the demand for high-quality veterinary equipment increases. The Hung-Kee Vet1500Plus veterinary monitor focuses on progressive design, making this monitor smart and simple.
This veterinary multiparameter monitor can monitor different animals, such as dog, cat, sheep, cow, cattle, pig, etc., and different parameters, such as ECG, RESP, SpO2, NIBP, and Dual- channel TEMP. It integrates parameter measuring module, display and recorder in one device to form a compact and portable device. At the same time, its built-in replaceable battery provides convenience for animal moving. Except multilingual operation (English, Spanish, Russia, French, Turkey, Portuguese,Poland) , this veterinary multiparameter monitor has optional as: CMS,Printer,Anesthetic gas module (AG),mainstream EtCO2 module, Touch screen,Wall mount stand,Trolley.
1). Configurations: 5 leads ECG + SPO2 + NIBP + Temp + EtCo2 port
2). Accessory:
1 pc 5 Leads ECG cable with vet clap

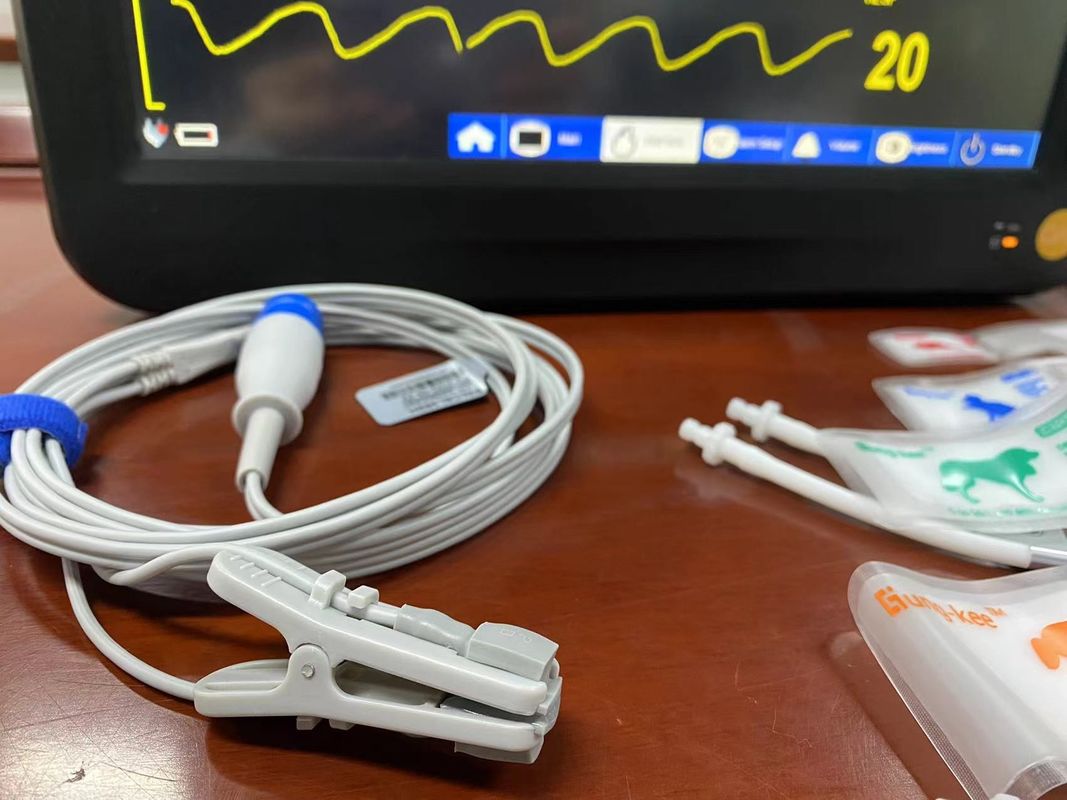

1 pc ear clip SPO2 sensor
1 pc NIBP tube
1 set of disposable NIBP cuff ( size 1 to 5)
1 pc rectal temp probe
3). Optional : 2-ch IBP module, touch, printer, Suntech NIBP, EtCO2 mainstream, AG module
Veterinary monitor product features:
● Thinner and lighter design, convenient and portable for user
● Freeze instant waveform for real time S-T segment analysis, pace-maker detection.
● Real time S-T segment analysis, pace-maker detection
● 3-level audio/visual alarming
● Efficient resistance to interference of defibrillator and HF knife.
.
FAQ for Veterinary Multiparameter Monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
4.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
5.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
6. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
7. Q: How to proceed an order for portable patient monitor or other medical equipment?
A: 1st let us know your requirements or application.
2nd We quote according to your requirements or our suggestions.
3rd customer arrange payment for formal order.
4th We arrange the production.
8.Q:Are You A Manufacturer Or Trading Company?
A: We Are The Top 10 Manufacturer of ICU Equipment in China Since 2008.
9.Q:Do You Need Foreign Agent?
A: Surely Yes, We Warmly Welcome Foreign Clients To Be our Agent.
10.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
11.Q:Why Should We Buy From You Rather than from other suppliers?
A: Producing Stable Quality And Affordable Products Is Our Purpose! Hung-Kee has been producing medical devices for more than 14 years, we have rich experience in production and maintenance.
12.Q: Are you trading company or manufacturer?
A: We are factory which has over 14 years' manufacturing experience.
13.Q: What's the MOQ?
A: 1 unit.
14.Q: How long is your delivery time?
A: 5 - 30 days after order confirmed. Based on the item and quantity.
15.Q: What is your terms of payment?
A: T/T, Western Union or PayPal; Trade terms: CIF
16.Q: Where's your general loading port?
A: Shenzhen or Hongkong port, as your demand.
17.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
18.Q:For tenders, whether you can provide all necessary documents.
A. Yes. We win a lot of tenders by providing complete documents and helped our customers.
19.Q: How to deal with the faulty?
A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free within 2 warranty years. Secondly, our after-sales department will periodically follow up customers.
