Product Details:
|
| Warranty Period: | 24 Months | Screen: | Colorful OLED Screen |
|---|---|---|---|
| OEM/SKD/CM: | Acceptable | Application: | Adult, Child |
| Trade Terms: | CIF & Exworks | Functions: | Monitor PR And SPOR Value |
| Origin: | China | MOQ: | 100 Pcs |
| Net Weight: | 0.8 KGs | Dimension: | 85.0 X 68.0 X 45.0mm |
| Product Name: | Blood Oxygen Monitor | ||
| Highlight: | Medical Spo2 Fingertip Pulse Oximeter,OLED Spo2 Fingertip Pulse Oximeter,portable finger spo2 monitor |
||
OLED fingertip pulse oximeter fingertip pulse oximeter oled display oximeter oled oximeter oled display oled oximeter
OLED fingertip pulse oximeter SPO2 and PR/HR monitoring oximetry 2 years warranty 500B/E
OLED Fingertip Pulse Oximeter Quick Details:
• Fingertip pulse oximeter
• Colorful OLED display, 6 display modes, manual four direction adjustable
• SpO2 and pulse monitoring, and Waveform display
• Low-power consumption, continuously work for 20 hours
• Small in size, light in weight, and convenient to carry
• Low voltage alarm display, Auto power-off
• Adjust the display interface direction manually, according to the patient observation data needs;
• Runs on standard AAA batteries
• Automatic power off when no signal in 8 s
• A menu function can set up oxygen alarm limit, the upper and lower limits of PR, alarm switch, ·sound switch.
Hung-Kee OLED fingertip pulse oximeter brochure 20...
OLED Fingertip Pulse Oximeter Technical details:
| Packing list | 1pc Fingertip oximeter,1pc Hang lace,1pc The operation manual |
| Display model | OLED screen |
| Spo2 Measurement range | 70-99% |
| Spo2 Measurement Accuracy | ±2% on the stage of 70%-99%, un-specified(<70%) for SPO2 |
| Resolution | ±1% |
| Low Perfusion | <0.4% |
| PR Measurement range | 30-240bpm |
| PR Accuracy | ±1BPM or ±1%(the larger one) |
| Power consumption | below 30mA |
| Automatic power-off | the product shuts down automatically after no signal for 8 seconds |
| Working voltage | D.C.2.2V -D.C.3.4V |
| Battery Type | Two 1.5V AAA alkaline batteries |
| Product size | 62mm*32mm*33mm |
| Product weight | 50g(include 2 AAA batteries) |
| Operation temperature | +5-+50℃ |
| Storage temperature | -10ºC-40ºC |
| Atmospheric Pressure | 860hPa - 1060hPa |
| Ambient humidity |
15%-80% on operation 10%-80% in storage |
| Declaration | EMC of this product comply with IEC60601-1-2standard |
( for more detailed technical data please refer to above PDF brochure)
OLED Fingertip Pulse Oximeter Description:
500B/E fingertip pulse oximeter is simple to use yet they offer user-friendly features, such as digital OLED displays, lightweight construction, and low power consumption. Our medical-grade pulse oximeters are IEC approved for both adults and children, meaning they're safe to use for all ages. Small and compact, these portable pulse oximeters can be taken with you and used wherever you go as long as the batteries hold a strong enough charge.
OLED Fingertip Pulse Oximeter Accessory:

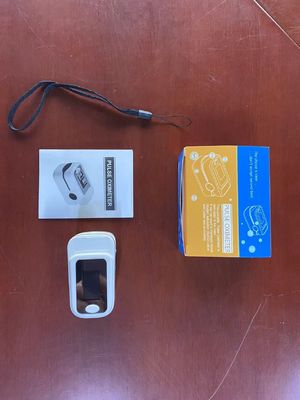

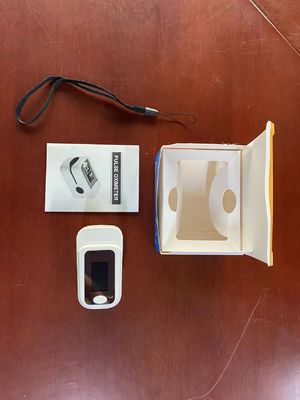

Lanyard, user manual and battery
FAQ for OLED Fingertip Pulse Oximeter:
1. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
2.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
3.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
4. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
5.Q: Are you trading company or manufacturer?
A: We are factory which has over 14 years' manufacturing experience.
6.Q: What's the MOQ?
A: 1 unit.
7.Q: How to deal with the faulty?
A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free within 2 warranty years. Secondly, our after-sales department will periodically follow up customers.
8.Q: How can get the shipping cost?
A: You tell us your destination port or delivery address, we check the Sea Freight or Air Freight or express for you based on your requirement.
9.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
10.Q: How long is your delivery time?
A: 5 - 30 days after order confirmed. Based on the item and quantity.
11.Q: What is your terms of payment?
A: T/T, Western Union or PayPal; Trade terms: CIF
12.Q: Where's your general loading port?
A: Shenzhen or Hongkong port, as your demand.
13.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
