Product Details:
|
| Product Name: | Multi Parameter Patient Monitor | Model Number: | PM-12G |
|---|---|---|---|
| Apply For: | For Monitoring Of Adult , Pediatric, Neonate | Color Selection: | Off White Color |
| Advantages: | High Quality, Lowest Cost Supply | Functions: | Measurement Parameters Of SPO2, NIBP, Temp, ECG, Resp., PR/HR |
| Screen Size: | 12.1 Inch TFT LCD | Original: | P.R.China |
| OEM: | Accepted | ODM: | Accepted |
| Warranty: | 24 Months | Weight: | 3.25 KGs |
| Power Supply: | 100~240V, 50/60Hz | ||
| Highlight: | EtCO2 Portable Multiparameter Monitor,240V Portable Vital Signs Equipment,Clinic Portable Vitals Monitor |
||

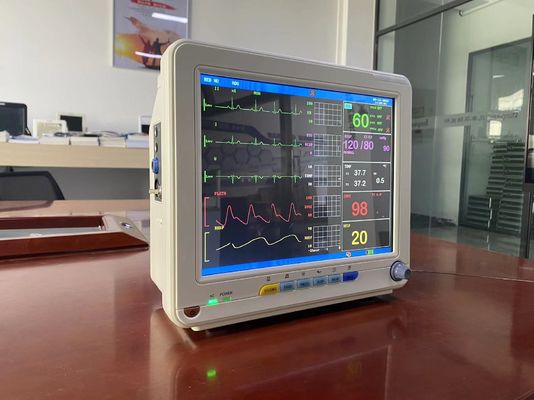

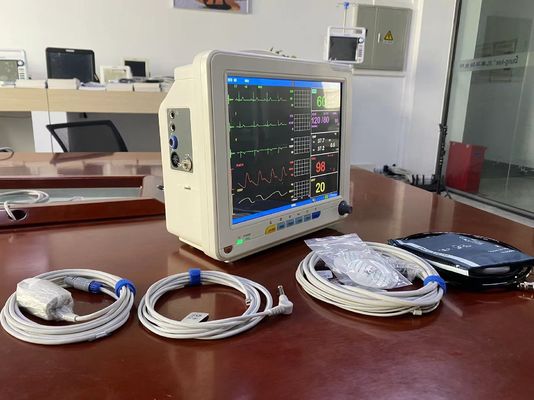

General ward clinic Portable patient monitor with EtCO2, ECG, SPO2, NIBP and Temp measurement 12.1 inch TFT LCD Screen
Multi Parameter Patient Monitor Description:
| Features | Description |
| Light weight | 3.25 KGs with an integral carry-handle, the light weight PM-12G is ideal as a portable monitor |
| Standard Measurement | capability of ECG, NIBP, SPO2, Temp, PR/HR for meeting your basic measuring requirement |
| Quick Keys | help caregivers to rapidly access frequently used functions such as menu, trend review, alarm settings and useful modes, including large fonts and mini-trends |
| Powerful data storage | for up to 48 hours full-disclosure, 72 hours of tabular and graphic trends, 400 NIBP measurement groups and 60 alarm events |
| Fan-free design | allows for a quiet care environment. Preventing dust collection and reduces the risk of airborn contamination |
| Alarm light | is visible from 180 degrees |
| Ergonomic buttons | enable quick access to commonly used functions, such as alarm silence, menu and start NIBP |
| Li-ion battery | Rechargeable, allows for up to 1.5 hours of continuous monitoring |
1.Patient Care in One Touch
Thourgh its simple and intuitive touch screen display (option), the cardic monitor offers instant access to all functions and allows you to monitor your patients in a quicker and more convenient way.
2.Quick and Easy Monitoring
A compace and light weight design make the portable patient monitor easy to carry while optional trolley, wall mounting bracket and bedrail mounting allow for convenient in-hospital transport.
3.User-friendly interface is intuitive and easy to use
Dynamic mini-trends provide up to 72 hours of useful information on your patient’s status, and large font display offers a clear view of all vital signs and allows you to monitor your patient from a distance
4.Poweful for application
The centralized alarm system enable you to quickly review and modify alarm settings, the logical review of alarms, events, trends and full-disclosure data helps you to quickly and accurately assess a patient’s health situation. With LAN capability, your Beta 8S can communicate with the Central Monitoring System for easy monitoring.
Applications of multiparameter patient monitor:
Based on different requirements on configurations, with basic parameters this 12.1 inch multi-parameter portable patient monitor could be used in general ward in hospitals, clinics, medical examination centers, rehabilitation centers, nursing homes and other places.
Customer Service:
1.Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.Your inquiry related to our products or price will be replied in 24hrs.
3.Keep informing our customer production process.
4.Two-year warranty to main unit and one-year warranty to accessories.
5.We will provide online technical support for the whole life.
Technical Specificatons:
| 1.Patient Monitor Type | 3.9 Recovery time of base line | After Defibrillation< 3 second | |
| Standard electric shock proof | Class I electric shock proof equipment | 3.10 Signal’s range | ±8 mV (peak value ) |
| EMC | Class A | 3.11 Calibration signal | 1mV (peak value ),accuracy ±5% |
| Standard electric shock proof level | CF level for ECG(RESP); type BF for SpO2,NIBP; TEMP | 3.12 ST measurement | |
| Liquid-Proof level | common seal apparatus, does not have the function to prevent liquid entering | Range | *-2.0mV ～ +2.0mV |
| Working method | Continuous | Measurement accuracy | within -0.8 mV～+0.8mV, the tolerance is ±0.02mVor ±10% |
| 2.Patient Monitor Specification | Without this range, there is no definition | ||
| 2.1 Working conditions | 4 RESP Specification | ||
| TEMP range | 4.1 Measurement | RA-LL Impedance | |
| working | 0 ～ 40℃ | 4.2 Detection range of respiratory impedance | 0.3～5Ω |
| transportation and storage | *-20 ～ 60℃ | 4.3 Base resistance range | 0～2500Ω |
| Humidity | 4.4 Bandwidth | 0.3～2.5Hz | |
| working | ≤85 % | 4.5 RESP Rate Range | |
| transportation and storage | ≤93% | adult | 0～120 BrPM |
| Altitude Range | Pediatric and neonate | 0～150 BrPM | |
| working | *-500 － 4,600m(-1,600 － 15,000feet) | Resolution | 1 BrPM |
| transportation and storage | *-500 － 13,100m(-1,600 － 43,000feet) | accuracy | ±2 BrPM |
| Electric specification | 100～250 VAC, 50/60 Hz, Maximum 70VA | 4.6 Suffocation alarm | 10～40 seconds |
| Fuss: T3.15A of displayer 15” | 5 SpO2 | ||
| 2.2 Displaying Info | 5.1 SPO2 | ||
| Maximum 6 waveforms | range | 0～100% | |
| One alarm light (yellow/red) | Resolution | 1% | |
| One working indictor(green) | Accuracy | 70～100%:±2 DIGIT | |
| One battery charging indictor(yellow) | 0%～69%: Not defined | ||
| Three corresponding sound alarming mode | 5.2 pulse rate | ||
| 2.3 Battery | measurement range | 20～300bpm | |
| 7.4V/2200mAhLi-ion rechargeable battery | Resolution | 1bpm | |
| Under normal working condition, battery works for 60 minutes | accuracy | ±3bpm | |
| It can works for 5 minutes after the first time power alarm | 6 TEMP’s specification | ||
| Maximum 8 hours charging time | 6.1 TEMP transducers applied | YSI series, CYF series | |
| 2.4 Recorder | 6.2 Channel’s quantity | 2 channels | |
| Paper’s width | 48mm | 6.3 Measurement | |
| Printing speed | 25 mm/S | range | 0～50℃ |
| Scanning waveform | 2 channels | Resolution | 0.1℃ |
| Recording type | 8 seconds real time recording | Accuracy | ±0.1℃, not include a sensor error |
| 2.5 Recall | 7 NIBP specification | ||
| Trend recall | 7.1 Measurement | Pulse wave oscillation | |
| Short trend | 1 hour, resolution: 1 second or 5 second | 7.2 Working mode | manual/auto |
| Long trend | 72hours ,resolution 1 minute,5minute or 10minute | 7.3 Interval of auto measurement | 1,2,3,4,5,10,15,30,60,90,120,180,240,480 minutes |
| NIBP measurement recall | 400 pcs NIBP measured value’s recall | 7.4 Measurement time of Continuous measurement mode | 5 minutes |
| 3.ECG Specification | 7.5 Pulse rate range | 40 ～ 240 bpm | |
| 3.1 Lead configuration | 7.6 Measuring range and accuracy | ||
| Standard 3 lead or 5 lead cable | Range | ||
| 3 lead | RA,LA,LL,lead method:I,II,III | ADULT | |
| 5-lead | RA,LA,LL,RL,V,lead method:I,II,III,aVR,aVL,aVF,V | SYS | 40～270mmHg |
| 3.2 Gain | X0.25,X0.5,X1,X2,auto | DIA | 10～215mmHg |
| 3.3 Heart Rate | MEAN | 20～235mmHg | |
| Range | PEDIATRIC | ||
| Adult | 15 ～ 300bpm (beat/min) | SYS | 40～200mmHg |
| Neonate/pediatric | 15 ～ 350 bpm(beat/min) | DIA | 10～150mmHg |
| Accuracy | ±1% or ±1bpm,choose the bigger one | MEAN | 20～165mmHg |
| Resolution | 1 bpm(beat/min) | NEONATE | |
| 3.4 Sensitivity | > 200 µV (peak-peak date ) | SYS | 40～135mmHg |
| 3.5 Impedance | > 5 (Megohm) | DIA | 10～100mmHg |
| 3.6 Bandwidth | MEAN | 20～110mmHg | |
| Diagnostic mode | 0.05～100Hz | blood pressure accuracy | |
| Monitoring mode | 0.5～35Hz | Maximum average error | ±5mmHg |
| Operation mode | 1～15Hz | Maximum standard deviation | ±8mmHg |
| 3.7 Common-mode rejection ratio | 7.7 over-pressure protection | ||
| Diagnostic mode | > 85 dB | adult mode | 297 mmHg±10 mmHg |
| Monitoring mode | > 105 dB | pediatric mode | 240 mmHg±10 mmHg |
| Operation mode | > 105 dB | neonate mode | 147 mmHg±10 mmHg |
| 3.8 Electrode polarization voltage range | * ±300mV | ||
