Product Details:
|
| Keyword: | Portable Veterinary Handheld Vital Signs Monitor | Model Number: | PalmOXI330Plus-Vet |
|---|---|---|---|
| Usage: | Big, Medium And Small Animals Or Pets | Applications: | Pets, Animals, Livestock Farms |
| Advantages: | Light Weight, High Accuracy, Stable And Reliable | Function: | Monitoring EtCO2 And SPO2 |
| Size: | 3.5 Inch TFT LCD | Net Weight: | 0.62KGs |
| Gross Weight: | 0.852KGs | ||
| Highlight: | Veterinary Handheld Vital Signs Monitor,LCD Screen Handheld Vital Signs Monitor,EtCO2 SPO2 Veterinary Monitor |
||

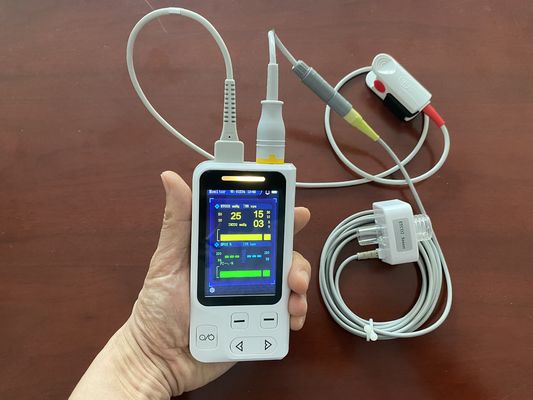

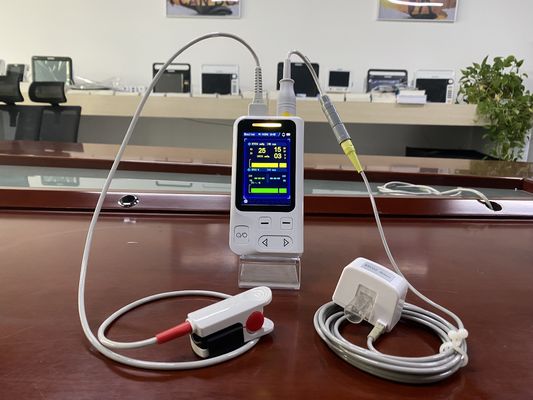

3.5 inch TFT LCD Portable Veterinary Handheld Vital Signs Monitor with EtCO2 and SPO2
Hung-Kee® PalmOXI330Plus-Vet Features:
• Small, lightweight, ergonomic handheld monitor for continuous and spot-check pulse oximetry monitoring; Supports a robust data set, including real-time EtCO2, SpO2 and PR values, pleth waveform, blip bar and tabular trend data; 3.5 inch TFT LCD display with backlight control, dual work modes: monitoring & spot check.
• Unqiue Excellent anti-motion performance; Adjustable audio and visul alarms, powerful data storage capacity ( up to 48 hours); Rechargeable batteries for up to 7 hours of work.
• Reliable Monitoring: Clinically proven Hung-Kee® Measure through motion and low Perfusion testing
• Informative Display: Presentation of pleth waveform for Additional information to be used In patient status assessment
• Alarm Management: Adjustable alarm function to offer Insight into patient status changes that might require intervention
.
Technical Specificatons:
1. SPO2 PARAMETER
| ACCURACY ARMS | |
| Oxygen Saturation (SpO2) : 70–100% | |
| Resolution | 1% |
| No Motion Adults /Pediatrics /Infants | 2% |
| Motion Adults/Pediatrics/Infants | 2% |
| Low Perfusion Adults /Pediatrics /Infants | 2% |
| Perfusion Index | 0.2% |
| Pulse Rate (PR) : 25–250 bpm | |
| Resolution | 1 bpm |
| No Motion Adults / Pediatrics / Infants | ±2 bpm |
| Motion Adults/Pediatrics/Infants | ±2 bpm |
| Low Perfusion Adults /Pediatrics /Infants | ±2 bpm |
2. SIDESTREAM ETCO2
| CO2 Measurement Range |
Selectable at 0 ~ 150 mmHg 0 ~ 19.7% 0 ~ 20 kPa (at 760 mmHg) Barometric Pressure supplied automatically by onboard chip |
| CO2 Resolution |
0.1mmHg, at 0 to 49 mm Hg 0.2 mmHg, at 50 to 150 mm Hg |
|
CO2 Accuracy
|
±2 mm Hg at 0 ~ 40 mm Hg ±5% of reading at 41 ~ 150 mm Hg ± 8% of reading at above 80 BPM |
| Respiratory Rate Range | 2 to 150 Breaths Per Minute (BPM) |
| Respiratory Rate Accuracy | 1% of reading ± 1 breath |
3. MAINSTREAM ETCO2
| CO2 Measurement Range | 0% to 20% (0 to 150mmHg) |
| CO2 Resolution |
0.1 mmHg, at 0 to 49 mmHg 0.2 mmHg, at 50 to 150 mmHg |
| CO2 Accuracy | ±2 mm Hg @ < 5.0% CO2 (at BTPS) < 10% of reading @ > 5.0%CO2(at BTPS) |
| Respiration Rate Range | 3 to 150 Breaths Per Minute (BPM) |
| Respiratory Rate Accuracy | 1% of reading ±1 breath |
4. PHYSICAL CHARACTERISTICS
| Weight | 0.173 kg. (0.381 lbs.) |
| Dimensions | 7.2 X 14.0 X 2.6cm (2.9”X5.5X1”) |
| Screen Size | 8.6cm (3.5 inch) |
5. ENVIRONMENTAL
| Operating Temperature | 5–40° C (41–104° F) |
| Humidity | 15% - 80% |
| Atmospheric Pressure | 700hpa -1060hpa |
6. TECHNICAL
| Battery Type | Lithium Ion |
| Battery Capacity | ≥ 7 hours |
| Data Storage | 48 hours |
7. ACCESSORIES

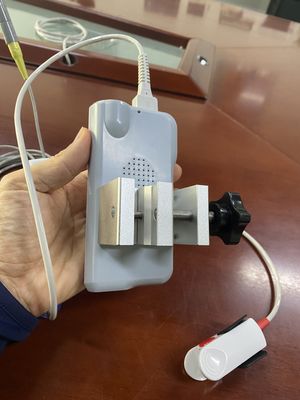

| Bed Rail Clamp | *option for fixing the device on bed rail or infusion column | For all |
|
Adult/Pediatric/ Neonate SPo2 sensor |
*Pediatric and neonate SPO2 sensor are options | For adult, pediatric, neonate |
| Vet ear/tongue SPO2 sensor | For veterinary |
8. ORDERING INFO
| Model | Functions |
| Hung-Kee® PalmOXI330 | SPO2 only |
| Hung-Kee® PalmOXI330Plus | EtCO2 + SPO2 |
| Hung-Kee® PalmOXI330Ve | SPO2 only |
| Hung-Kee® PalmOXI330Plus-Vet | EtCO2 + SPO2 |
9. PACKING INFO
| Color box size | 19.00 x 13.60 x 10.60mm (1 pcs/CTN), 0.003CBM | |
| Model | Gross weight | Net weight |
| PalmOXI330 / PalmOXI330Vet | 0.745 Kgs | 0.523 Kgs |
|
PalmOXI330Plus / PalmOXI330Plus-Vet |
0.852Kgs | 0.62Kgs |
Hung-Kee Handheld Vital sign Monitor brochure 2023...
Portable Veterinary Handheld Vital Signs Monitor Description:
The Hung-Kee® PalmOXI330Plus-Vet Veterinary Hand-Held Vital Signs Monitor quickly and reliably delivers capnography and pulse oximetry wherever spot-checking is needed...including veterinary clinics, livestock farm.In fact, its ergonomic design, easy-to-read display and proven ability to accurately indicate EtCO2, SpO2 and pulse rate for different types of animals or pets have helped make Hung-Kee® Medicals Co., Ltd the global leader in hand-held capnograpy and pulse oximetry technology. The Hung-Kee® PalmOXI330Plus-Vet Veterinary Hand-Held Vital Signs Monitor features an ergonomic shape and simple design that make it easy to use. Wherever you need SpO2 measurements — even in difficult conditions — you can count on this pulse oximetry system to help meet the challenge.
