Product Details:
|
| Keyword: | Portable Handheld Capnography Device | Model Number: | PalmOXI330Plus |
|---|---|---|---|
| Usage: | Adult , Pediatric, Neonate | Application: | Clinic, General Ward, OR/OT, ICU, CCU |
| Strengths: | Light Weight, High Accuracy, Stable And Reliable | Measurement: | Monitoring EtCO2 And SPO2 |
| Size: | 3.5 Inch TFT LCD | Net Weight: | 0.523KGs |
| Gross Weight: | 0.852KGs | Original: | P.R.China |
| Material: | ABS | ||
| Highlight: | TFT LCD Portable Capnography Device,handheld capnography For Adult,Portable Capnography Device For Neonate |
||

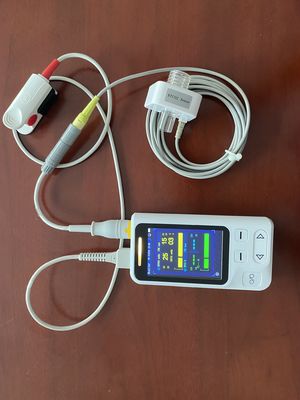

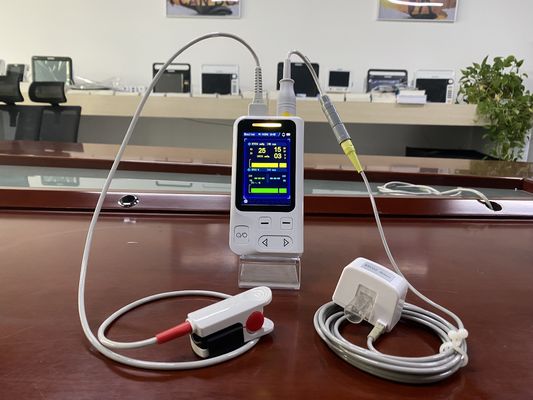

3.5 inch TFT LCD Portable Handheld Capnography Device
Hung-Kee® PalmOXI330Plus Features:
1. 3.5 inch TFT LCD display with backlight control, dual work modes: monitoring & spot check
2. Small, lightweight, ergonomic handheld monitor for continuous and spot-check pulse oximetry monitoring
3. Unqiue Excellent anti-motion performance
4. Adjustable audio and visul alarms, powerful data storage capacity ( up to 48 hours)
5. Supports a robust data set, including real-time EtCO2, SpO2 and PR values, pleth waveform, blip bar and tabular trend data
6. Rechargeable batteries for up to 7 hours of work
7. Informative Display: Presentation of pleth waveform for Additional information to be used In patient status assessment
8. Alarm Management: Adjustable alarm function to offer Insight into patient status changes that might require intervention
9. Reliable Monitoring: Clinically proven Hung-Kee® Measure through motion and low Perfusion testing
.
Technical Specificatons:
1. SPO2 PARAMETER
| ACCURACY ARMS | |
| Oxygen Saturation (SpO2) : 70–100% | |
| Resolution | 1% |
| No Motion Adults /Pediatrics /Infants | 2% |
| Motion Adults/Pediatrics/Infants | 2% |
| Low Perfusion Adults /Pediatrics /Infants | 2% |
| Perfusion Index | 0.2% |
| Pulse Rate (PR) : 25–250 bpm | |
| Resolution | 1 bpm |
| No Motion Adults / Pediatrics / Infants | ±2 bpm |
| Motion Adults/Pediatrics/Infants | ±2 bpm |
| Low Perfusion Adults /Pediatrics /Infants | ±2 bpm |
2. SIDESTREAM ETCO2
| CO2 Measurement Range |
Selectable at 0 ~ 150 mmHg 0 ~ 19.7% 0 ~ 20 kPa (at 760 mmHg) Barometric Pressure supplied automatically by onboard chip |
| CO2 Resolution |
0.1mmHg, at 0 to 49 mm Hg 0.2 mmHg, at 50 to 150 mm Hg |
|
CO2 Accuracy
|
±2 mm Hg at 0 ~ 40 mm Hg ±5% of reading at 41 ~ 150 mm Hg ± 8% of reading at above 80 BPM |
| Respiratory Rate Range | 2 to 150 Breaths Per Minute (BPM) |
| Respiratory Rate Accuracy | 1% of reading ± 1 breath |
3. MAINSTREAM ETCO2
| CO2 Measurement Range | 0% to 20% (0 to 150mmHg) |
| CO2 Resolution |
0.1 mmHg, at 0 to 49 mmHg 0.2 mmHg, at 50 to 150 mmHg |
| CO2 Accuracy | ±2 mm Hg @ < 5.0% CO2 (at BTPS) < 10% of reading @ > 5.0%CO2(at BTPS) |
| Respiration Rate Range | 3 to 150 Breaths Per Minute (BPM) |
| Respiratory Rate Accuracy | 1% of reading ±1 breath |
4. PHYSICAL CHARACTERISTICS
| Weight | 0.173 kg. (0.381 lbs.) |
| Dimensions | 7.2 X 14.0 X 2.6cm (2.9”X5.5X1”) |
| Screen Size | 8.6cm (3.5 inch) |
5. ENVIRONMENTAL
| Operating Temperature | 5–40° C (41–104° F) |
| Humidity | 15% - 80% |
| Atmospheric Pressure | 700hpa -1060hpa |
6. TECHNICAL
| Battery Type | Lithium Ion |
| Battery Capacity | ≥ 7 hours |
| Data Storage | 48 hours |
7. ACCESSORIES
| Bed Rail Clamp | *option for fixing the device on bed rail or infusion column | For all |
|
Adult/Pediatric/ Neonate SPo2 sensor |
*Pediatric and neonate SPO2 sensor are options | For adult, pediatric, neonate |
| Vet ear/tongue SPO2 sensor | For veterinary |
8. ORDERING INFO
| Model | Functions |
| Hung-Kee® PalmOXI330 | SPO2 only |
| Hung-Kee® PalmOXI330Plus | EtCO2 + SPO2 |
| Hung-Kee® PalmOXI330Ve | SPO2 only |
| Hung-Kee® PalmOXI330Plus-Vet | EtCO2 + SPO2 |
9. PACKING INFO
| Color box size | 19.00 x 13.60 x 10.60mm (1 pcs/CTN), 0.003CBM | |
| Model | Gross weight | Net weight |
| PalmOXI330 / PalmOXI330Vet | 0.745 Kgs | 0.523 Kgs |
|
PalmOXI330Plus / PalmOXI330Plus-Vet |
0.852Kgs | 0.62Kgs |
Hung-Kee Handheld Vital sign Monitor brochure 2023...
Portable Handheld Capnography Device Description:
Portable Handheld Capnography Device with its ergonomic design, easy-to-read display and proven ability to accurately indicate EtCO2, SpO2 and pulse rate for patients from neonate to adult have helped make Hung-Kee® Medicals Co., Ltd the global leader in hand-held capnograpy and pulse oximetry technology. The Hung-Kee® PalmOXI330Plus Portable Handheld Capnography Device features an ergonomic shape and simple design that make it easy to use. Wherever you need SpO2 measurements — even in difficult conditions — you can count on this pulse oximetry system to help meet the challenge.
Application:
The Hung-Kee® PalmOXI330Plus Portable Handheld Capnography Device quickly and reliably delivers capnography and pulse oximetry wherever spot-checking is needed...including EMS, physicians offices, outpatient clinics, pre- and post-Op, procedure rooms, same-Day Surgery, Transport, sleep studies-basic overnight, dental and oral surgery, hospitals, and home healthcare.
Company Profile:
Hung-kee (China) Electronic Technology Co.,Ltd mainly focus on R&D, manufacturing and marketing of human and veterinary caring products.
Since year 2003, Thanks for its strong R&D team with more than 20-year working experience in medical industry, we have successfully developed the world’s most cost-effective and good quality medical products. As targeting becoming the most competitive medical supplier in the world, Hung-Kee's portfolio of coveted medical goods – human caring medical products and veterinary caring products -- propelled it past most competitors of its kind in China to become the world's most valuable technology company. Hung-Kee has built up two separated R&D teams focus on software ( 8 members, led by Mr.Kwok with 30 years software development experience) and hardware ( 5 members, led by Mr.Sheng with 19 years hardware development experience) development. By 2021, the company has 10 practical technology patents and 5 appearance patents, and at least 2 new patents will be obtained every year.
At the moment, we have developed 8 products lines including:
1) Multi-parameter patient monitor: portable patient monitor, modular patient monitor, cardiac patient monitor, neonate patient monitor, ICU cardiac monitor, 8 inch / 12.1 inch / 15 inch monitor
2) Veterinary multi-parameter Monitor: 8 inch/ 12.1 inch/ 15 inch, standard and semi-modular veterinary monitor; handheld SPO2 & EtCO2 monitor
3) Vital sign monitors: Desktop vital signs monitor, OLED Fingertip pulse oximeter, Handheld pulse oximeter, Handheld EtCO2 & SPO2 monitor, Cardio-Output Monitor, Depth of Anesthesia Monitor or Cerebral State Index, Intracranial pressure monitor, rSO2 or Cerebral Oximetry or NIRS
4) Gas detector: Mainstream EtCO2 sensor, sidestream CO2 module, Anesthesia main/side stream Multi-Gas modules
5) Emergency Devices: Automatic tourniquet system (A.T.S.)
6) Telemedicine: Remote Medical Caring Cloud Platform with bedside monitoring terminal
More new items will come…….
Hung-Kee's target is to be a professional medical devices supplier in fields of OEM, ODM and SKD services, and to be your loyal and reliable partner in a long run basis.
More new items will come in near future with fully Hung-Kee owned IP, and more added value will be produced to our esteemed partners around the world.
Hung-Kee's staffs are proud of its 19 years development, every steps presents Hung-Kee's determination to be the world’s No.1 cost-effective high quality medical products supplier.
