Product Details:
|
| Keyword: | Handheld Pulse Oximeter | Model Number: | PalmOXI330 |
|---|---|---|---|
| Usage: | Neonate, Pediatric And Adult | Application: | Homecare, Clinic, General Ward, ICU, CCU, Neonatal Department |
| Strengths: | Light Weight, High Accuracy, Stable And Reliable | Measurement: | Monitoring EtCO2 And SPO2 |
| Size: | 3.5 Inch TFT LCD | Net Weight: | 0.523KGs |
| Gross Weight: | 0.745KGs | Original: | P.R.China |
| Material: | ABS | ||
| Highlight: | TFT LCD Handheld Pulse Oximeter,Monitoring SPO2 Handheld Pulse Oximeter,Monitoring EtCO2 Portable Pulse Oximeter |
||

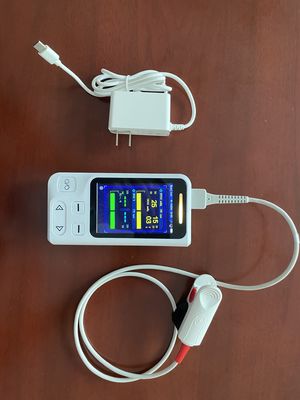

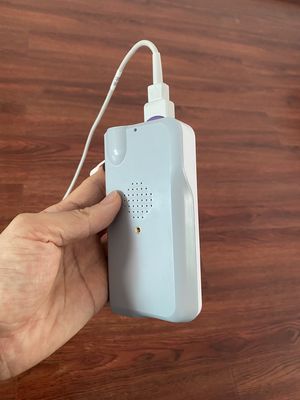

3.5 inch TFT LCD Handheld Pulse Oximeter
Hung-Kee® PalmOXI330 Features:
| Item | Features |
| 1 | 3.5 inch TFT LCD display with backlight control, dual work modes: monitoring & spot check |
| 2 | Small, lightweight, ergonomic handheld monitor for continuous and spot-check pulse oximetry monitoring |
| 3 | Unqiue Excellent anti-motion performance |
| 4 | Supports a robust data set, including real-time SpO2 and PR values, pleth waveform, blip bar and tabular trend data |
| 5 | Adjustable audio and visul alarms, powerful data storage capacity ( up to 48 hours) |
| 6 | Rechargeable batteries for up to 7 hours of work |
| 7 | Reliable Monitoring: Clinically proven Hung-Kee® Measure through motion and low Perfusion testing |
| 8 | Informative Display: Presentation of pleth waveform for Additional information to be used In patient status assessment |
| 9 | Alarm Management: Adjustable alarm function to offer Insight into patient status changes that might require intervention |
.
Handheld Pulse Oximeter Technical Specificatons:
1. SPO2 PARAMETER
| ACCURACY ARMS | |
| Oxygen Saturation (SpO2) : 70–100% | |
| Resolution | 1% |
| No Motion Adults /Pediatrics /Infants | 2% |
| Motion Adults/Pediatrics/Infants | 2% |
| Low Perfusion Adults /Pediatrics /Infants | 2% |
| Perfusion Index | 0.2% |
| Pulse Rate (PR) : 25–250 bpm | |
| Resolution | 1 bpm |
| No Motion Adults / Pediatrics / Infants | ±2 bpm |
| Motion Adults/Pediatrics/Infants | ±2 bpm |
| Low Perfusion Adults /Pediatrics /Infants | ±2 bpm |
2.PHYSICAL CHARACTERISTICS
| Weight | 0.173 kg. (0.381 lbs.) |
| Dimensions | 7.2 X 14.0 X 2.6cm (2.9”X5.5X1”) |
| Screen Size | 8.6cm (3.5 inch) |
3. ENVIRONMENTAL
| Operating Temperature | 5–40° C (41–104° F) |
| Humidity | 15% - 80% |
| Atmospheric Pressure | 700hpa -1060hpa |
4. TECHNICAL
| Battery Type | Lithium Ion |
| Battery Capacity | ≥ 7 hours |
| Data Storage | 48 hours |
5. ACCESSORIES
| Bed Rail Clamp | *option for fixing the device on bed rail or infusion column | For all |
|
Adult/Pediatric/ Neonate SPo2 sensor |
*Pediatric and neonate SPO2 sensor are options | For adult, pediatric, neonate |
| Vet ear/tongue SPO2 sensor | For veterinary |
6. ORDERING INFO
| Model | Functions |
| Hung-Kee® PalmOXI330 | SPO2 only |
| Hung-Kee® PalmOXI330Plus | EtCO2 + SPO2 |
| Hung-Kee® PalmOXI330Ve | SPO2 only |
| Hung-Kee® PalmOXI330Plus-Vet | EtCO2 + SPO2 |
7. PACKING INFO
| Color box size | 19.00 x 13.60 x 10.60mm (1 pcs/CTN), 0.003CBM | |
| Model | Gross weight | Net weight |
| PalmOXI330 / PalmOXI330Vet | 0.745 Kgs | 0.523 Kgs |
|
PalmOXI330Plus / PalmOXI330Plus-Vet |
0.852Kgs | 0.62Kgs |
Handheld Pulse Oximeter Description and Applicaition:
The Hung-Kee® PalmOXI330 Handheld Pulse Oximeter quickly and reliably delivers pulse oximetry wherever spot-checking is needed...including EMS, physicians offices, outpatient clinics, pre- and post-Op, procedure rooms, same-Day Surgery, Transport, sleep studies-basic overnight, dental and oral surgery, hospitals, and home healthcare. In fact, its ergonomic design, easy-to-read display and proven ability to accurately indicate SpO2 and pulse rate for patients from neonate to adult have helped make Hung-Kee® Medicals Co., Ltd the global leader in hand-held capnograpy and pulse oximetry technology. The Hung-Kee® PalmOXI330 Handheld Pulse Oximeter features an ergonomic shape and simple design that make it easy to use. Wherever you need SpO2 measurements — even in difficult conditions — you can count on this pulse oximetry system to help meet the challenge.
Hung-Kee Handheld Vital sign Monitor brochure 2023...
Company Profile:
Hung-Kee (China) Electronic Technology Co., Ltd, is a prominent company specializing in the research, development, manufacturing, and marketing of innovative medical products for human and veterinary care. With a steadfast commitment to delivering cost-effective, high-quality solutions, Hung-Kee has emerged as a trusted name in the global medical industry.
Since its establishment in 2003, Hung-Kee has harnessed the expertise of a highly skilled R&D team with over 20 years of experience in the medical field. This invaluable knowledge has propelled the company to develop world-class medical products renowned for their exceptional quality and affordability. Hung-Kee's unwavering dedication to becoming the most competitive medical supplier globally has positioned it as the world's most valuable technology company in the industry.
Hung-Kee boasts two specialized R&D teams, one focusing on software development led by Mr. Kwok, a seasoned professional with 30 years of software development experience, and the other dedicated to hardware development led by Mr. Sheng, an expert with 19 years of hardware development experience. This collaboration has resulted in the acquisition of 10 practical technology patents and 5 appearance patents by 2021, with ongoing efforts to secure additional patents each year.
Currently, Hung-Kee offers a comprehensive range of 8 product lines. These include multi-parameter patient monitors, veterinary multi-parameter monitors, vital sign monitors, gas detectors, emergency devices, and telemedicine solutions.
Each product line showcases Hung-Kee's commitment to innovation and addresses the diverse needs of healthcare professionals worldwide.
Hung-Kee aims to be recognized as a trusted supplier of medical devices, providing exceptional OEM, ODM, and SKD services. The company's focus is on establishing long-term partnerships built on reliability and mutual success. With a vision for the future, Hung-Kee continues to develop new products with fully owned intellectual property, creating added value for its esteemed partners globally.
The entire team at Hung-Kee takes great pride in their 19 years of development, a testament to their unwavering determination to be the world's leading provider of cost-effective, high-quality medical solutions.
Factory tour:
R&D:
Quality Certificate:
Customer Service:
| Items | Description |
| 1 | Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution. |
| 2 | Your inquiry related to our products or price will be replied in 24hrs. |
| 3 | Keep informing our customer production process. |
| 4 | Two-year warranty to main unit and one-year warranty to accessories. |
| 5 | We will provide online technical support for the whole life. |
