Product Details:
|
| Description: | Portable Veterinary Handheld Capnography Device | Model Number: | PalmOXI330Plus-Vet |
|---|---|---|---|
| Application: | Big, Medium And Small Animals Or Pets | Usage: | Pets, Animals, Livestock Farms |
| Strengths: | Light Weight, High Accuracy, Stable And Reliable | Function: | Monitoring EtCO2 And SPO2 |
| Size: | 3.5 Inch TFT LCD | Net Weight: | 0.62KGs |
| Gross Weight: | 0.852KGs | ||
| Highlight: | Pets Portable Capnography Device,Veterinary Portable Capnography Device,Handheld Veterinary Multiparameter Monitor |
||

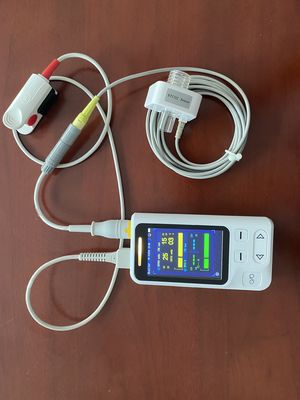

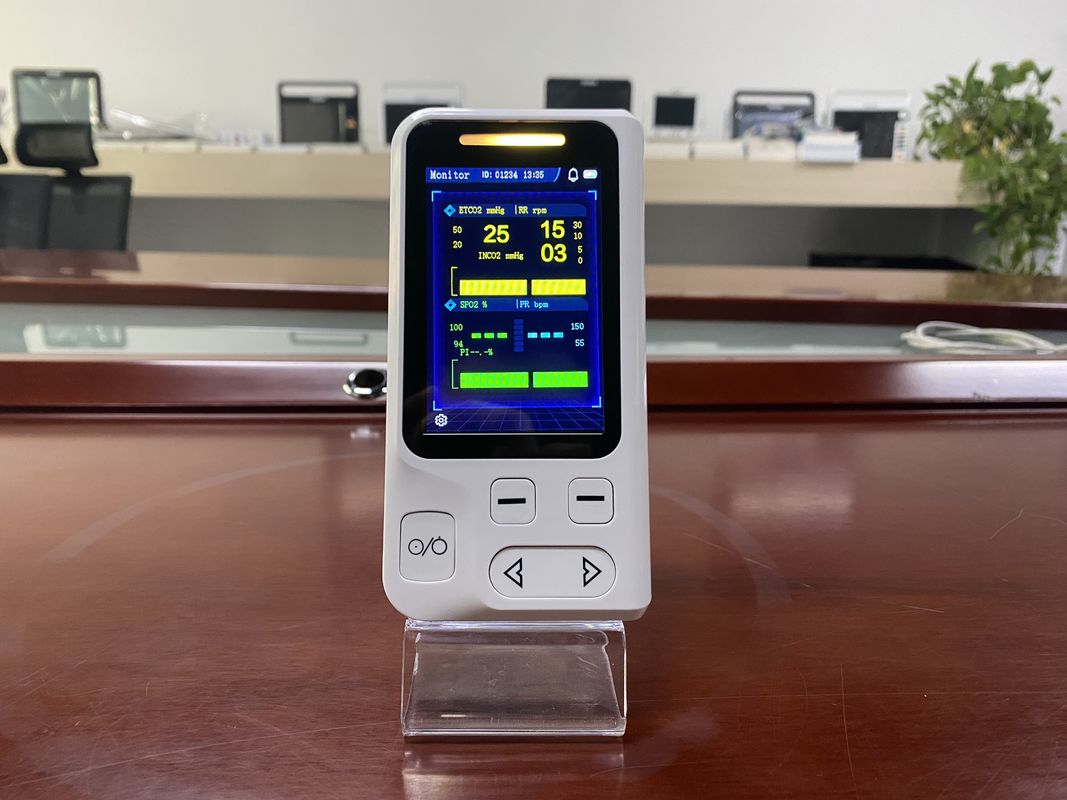

3.5 inch TFT LCD Portable Veterinary Handheld Capnography Device
Hung-Kee® PalmOXI330Plus-Vet Features:
1. The device features a 3.5-inch TFT LCD display with backlight control and offers dual work modes: monitoring and spot check.
2. This handheld monitor is small, lightweight, and ergonomically designed for continuous and spot-check pulse oximetry monitoring.
3. It boasts excellent anti-motion performance, ensuring accurate readings even in challenging conditions.
4. The monitor allows for adjustable audio and visual alarms and offers a powerful data storage capacity, capable of storing data for up to 48 hours.
5. It supports a comprehensive data set, including real-time EtCO2, SpO2, and PR values, pleth waveform, blip bar, and tabular trend data.
6. With rechargeable batteries, the device provides up to 7 hours of continuous operation.
7. The informative display presents the pleth waveform, providing additional information for patient status assessment.
8. The alarm management feature allows for adjustable alarms, providing insight into changes in patient status that may require intervention.
9. The monitoring capabilities of the device are reliable and clinically proven, featuring the Hung-Kee® Measure technology that can accurately measure through motion and low perfusion.
.
Technical Specificatons:
1. SPO2 PARAMETER
| ACCURACY ARMS | |
| Oxygen Saturation (SpO2) : 70–100% | |
| Resolution | 1% |
| No Motion Adults /Pediatrics /Infants | 2% |
| Motion Adults/Pediatrics/Infants | 2% |
| Low Perfusion Adults /Pediatrics /Infants | 2% |
| Perfusion Index | 0.2% |
| Pulse Rate (PR) : 25–250 bpm | |
| Resolution | 1 bpm |
| No Motion Adults / Pediatrics / Infants | ±2 bpm |
| Motion Adults/Pediatrics/Infants | ±2 bpm |
| Low Perfusion Adults /Pediatrics /Infants | ±2 bpm |
2. SIDESTREAM ETCO2
| CO2 Measurement Range |
Selectable at 0 ~ 150 mmHg 0 ~ 19.7% 0 ~ 20 kPa (at 760 mmHg) Barometric Pressure supplied automatically by onboard chip |
| CO2 Resolution |
0.1mmHg, at 0 to 49 mm Hg 0.2 mmHg, at 50 to 150 mm Hg |
|
CO2 Accuracy
|
±2 mm Hg at 0 ~ 40 mm Hg ±5% of reading at 41 ~ 150 mm Hg ± 8% of reading at above 80 BPM |
| Respiratory Rate Range | 2 to 150 Breaths Per Minute (BPM) |
| Respiratory Rate Accuracy | 1% of reading ± 1 breath |
3. MAINSTREAM ETCO2
| CO2 Measurement Range | 0% to 20% (0 to 150mmHg) |
| CO2 Resolution |
0.1 mmHg, at 0 to 49 mmHg 0.2 mmHg, at 50 to 150 mmHg |
| CO2 Accuracy | ±2 mm Hg @ < 5.0% CO2 (at BTPS) < 10% of reading @ > 5.0%CO2(at BTPS) |
| Respiration Rate Range | 3 to 150 Breaths Per Minute (BPM) |
| Respiratory Rate Accuracy | 1% of reading ±1 breath |
4. PHYSICAL CHARACTERISTICS
| Weight | 0.173 kg. (0.381 lbs.) |
| Dimensions | 7.2 X 14.0 X 2.6cm (2.9”X5.5X1”) |
| Screen Size | 8.6cm (3.5 inch) |
5. ENVIRONMENTAL
| Operating Temperature | 5–40° C (41–104° F) |
| Humidity | 15% - 80% |
| Atmospheric Pressure | 700hpa -1060hpa |
6. TECHNICAL
| Battery Type | Lithium Ion |
| Battery Capacity | ≥ 7 hours |
| Data Storage | 48 hours |
7. ACCESSORIES
| Bed Rail Clamp | *option for fixing the device on bed rail or infusion column | For all |
|
Adult/Pediatric/ Neonate SPo2 sensor |
*Pediatric and neonate SPO2 sensor are options | For adult, pediatric, neonate |
| Vet ear/tongue SPO2 sensor | For veterinary |
8. ORDERING INFO
| Model | Functions |
| Hung-Kee® PalmOXI330 | SPO2 only |
| Hung-Kee® PalmOXI330Plus | EtCO2 + SPO2 |
| Hung-Kee® PalmOXI330Ve | SPO2 only |
| Hung-Kee® PalmOXI330Plus-Vet | EtCO2 + SPO2 |
9. PACKING INFO
| Color box size | 19.00 x 13.60 x 10.60mm (1 pcs/CTN), 0.003CBM | |
| Model | Gross weight | Net weight |
| PalmOXI330 / PalmOXI330Vet | 0.745 Kgs | 0.523 Kgs |
|
PalmOXI330Plus / PalmOXI330Plus-Vet |
0.852Kgs | 0.62Kgs |
Hung-Kee Handheld Vital sign Monitor brochure 2023...
Portable Veterinary Handheld Capnography Device Description:
Hung-Kee® Medicals Co., Ltd, the global leader in handheld capnography and pulse oximetry technology, offers the Portable Veterinary Handheld Capnography Device. With its ergonomic design, easy-to-read display, and proven accuracy in indicating EtCO2, SpO2, and pulse rate for different tyeps of animals, it has become the preferred choice in the industry.
The Hung-Kee® PalmOXI330Plus Portable Veterinary Handheld Capnography Device stands out with its ergonomic shape and user-friendly design, making it effortless to operate. This portable device ensures precise EtCO2 and SpO2 measurements even in challenging conditions, allowing healthcare professionals to confidently meet the demands of various clinical settings.
Application:
The Hung-Kee® PalmOXI330Plus-Vet Portable Veterinary Handheld Capnography Device quickly and reliably delivers capnography and pulse oximetry wherever spot-checking is needed...including veterinary clincis and livestock farms.
Company Profile:
Hung-kee (China) Electronic Technology Co.,Ltd mainly focus on R&D, manufacturing and marketing of human and veterinary caring products.
Since year 2003, Thanks for its strong R&D team with more than 20-year working experience in medical industry, we have successfully developed the world’s most cost-effective and good quality medical products. As targeting becoming the most competitive medical supplier in the world, Hung-Kee's portfolio of coveted medical goods – human caring medical products and veterinary caring products -- propelled it past most competitors of its kind in China to become the world's most valuable technology company. Hung-Kee has built up two separated R&D teams focus on software ( 8 members, led by Mr.Kwok with 30 years software development experience) and hardware ( 5 members, led by Mr.Sheng with 19 years hardware development experience) development. By 2021, the company has 10 practical technology patents and 5 appearance patents, and at least 2 new patents will be obtained every year.
At the moment, we have developed 6 products lines including:
| Item | Description |
| Multi-parameter patient monitor | portable patient monitor, modular patient monitor, cardiac patient monitor, neonate patient monitor, ICU cardiac monitor, 8 inch / 12.1 inch / 15 inch monitor |
| Veterinary multi-parameter Monitor |
8 inch/ 12.1 inch/ 15 inch, standard and semi-modular veterinary monitor; handheld SPO2 & EtCO2 monitor
|
| Vital sign monitors | Desktop vital signs monitor, OLED Fingertip pulse oximeter, Handheld pulse oximeter, Handheld EtCO2 & SPO2 monitor, Cardio-Output Monitor, Depth of Anesthesia Monitor or Cerebral State Index, Intracranial pressure monitor, rSO2 or Cerebral Oximetry or NIRS |
| Gas detector | Mainstream EtCO2 sensor, sidestream CO2 module, Anesthesia main/side stream Multi-Gas modules |
| Emergency Devices | Automatic tourniquet system (A.T.S.) |
| Telemedicine | Remote Medical Caring Cloud Platform with bedside monitoring terminal |
More new items will come…….
Hung-Kee's target is to be a professional medical devices supplier in fields of OEM, ODM and SKD services, and to be your loyal and reliable partner in a long run basis.
More new items will come in near future with fully Hung-Kee owned IP, and more added value will be produced to our esteemed partners around the world.
Hung-Kee's staffs are proud of its 19 years development, every steps presents Hung-Kee's determination to be the world’s No.1 cost-effective high quality medical products supplier.
