Product Details:
|
| Product Name: | Multi Parameter Patient Monitors | Model Number: | PoloVision T15 |
|---|---|---|---|
| Usage: | Adult , Pediatric, Neonate | Application: | Homecare, Clinic, General Ward, ICU, CCU, OR/OT, Neonatal Department |
| Advantage: | Powerful Functions, High Accuracy, Stable And Reliable | Measurement: | Monitoring ECG, SPO2, NIBP, Temp, Resp., PR/HR |
| Connectivity: | HIS, HL7 Compatible, USB Dataoutput, Center Monitoring System | Options: | 2IBP, EtCO2, C.O., AG, IoC, 12 Leads ECG |
| Size: | 15 Inch TFT LCD Screen | Net Weight: | 5.0KGs |
| Gross Weight: | 6.8 KGs |

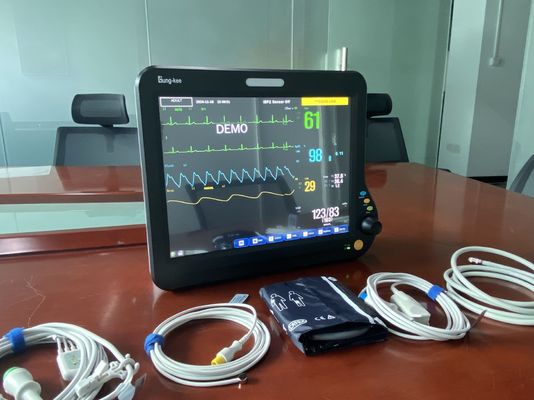

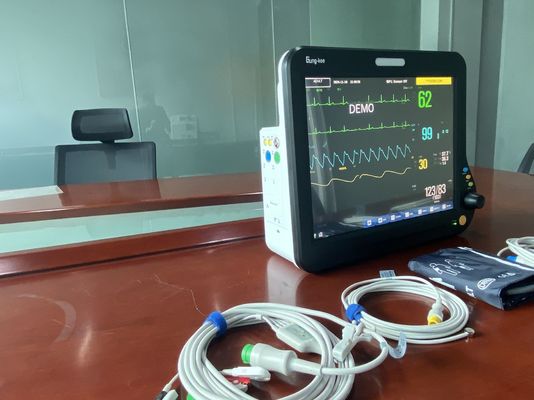

15 inch TFT LCD high-end multi parameter patient monitors used in OR/OT, ICU, CCU, neonatal department
PoloVison T15 Multi Parameter Patient Monitors Highlights:
| Item | Description |
| 1 | Works for adults, kids and babies; great for doctor's offices, OR/OT, ICU, CCU, NICU, clinics, and more |
| 2 | 15 inch, standard or semi-modular patient monitors are available, diverse options to meet the personalized needs of clinical applications |
| 3 | Audible and visual alarm, you can adjust the alarm limit as you like |
| 4 | Print out data, waveform, trend table, and trend graph |
| 5 | User-friendly human-machine dialogue interface, with pop-up menu, dialogue box, knob, and more |
| 6 | Innovative technology for electrosurgical interface; whether cutting or burning, ECG waveform and heart rate are not affected |
| 7 | Store trend data for up to 350 hours, 2000 NIBP groups, USB data output function |
| 8 | Low power consumption design, with standby mode, rechargeable high-energy built-in battery |
| 9 | Shows Oxy CRG and 7-lead ECG waveform at the same time, large font mode, 5 customizable display formats |
| 10 | Goertzel algorithm ensures fast and accurate NIBP measurement, making venipuncture easy |
| 11 | ST segment analysis, bed to bed view, pacemaker, drug calculation, 34 types of arrhythmia analysis |
| 12 | Network: the Monitor support layer 3 communications and automatic DHCP IP address allocation for both wired and wireless networks |
| 13 | Be compatible with HIS and HL7 compliant |
| 14 | Standard configurations: 5/3 leads ECG, SPO2, NIBP, Temp, HR/PR |
| 15 | Drug calculation, hemodynamic calculation and patient and Modified Early warning Clinical Score (MEWS) |
| 16 | Options: 2-Ch IBP, EtCO2 ( mainstream/ sidestream), 12leads ECG, Cardio-output, IoC, AG, Suntech BP, Masimo SPO2, defibrillation synchronization, Center monitoring system, nurse calling, touch, VGA, printer, bedrail clamp, wall mounting bracket, trolley |
PoloVision T15 Multi Parameter Patient Monitors Technical Specificatons:
| 1.Patient Monitor Type | 3.10 Pacing pulse suppression | ||
| Standard electric shock proof | Class I electric shock proof equipment | When the pacing analysis switch is on, it can suppress pacing pulse within the following condition and will not affect the calculation of heart rate: | |
| EMC | Class A | extent | ±2 mV ～ ±700mV |
| Standard electric shock proof level | CF level for ECG(RESP); type BF for SpO2,NIBP; TEMP | width | 0.1ms ～ 2ms |
| Liquid-Proof level | common seal apparatus, does not have the function to prevent liquid entering | Rise time | 10µs ～ 100µs |
| Working method | Continuous | 3.11 Recovery time of base line | After Defibrillation< 3 second |
| 2.Patient Monitor Specification | 3.12 Signal’s range | ±8 mV (peak value ) | |
| 2.1 Working conditions | 3.13 Calibration signal | 1mV (peak value ),accuracy ±5% | |
| TEMP range | 3.14 ST measurement | ||
| working | 0 ～ 40℃ | Range | *-2.5mV ～ +2.5mV |
| transportation and storage | *-20 ～ 60℃ | Measurement accuracy | within -0.8 mV～+0.8mV, the tolerance is ±0.02mVor ±10% |
| Humidity | Without this range, there is no definition | ||
| working | ≤85 % | 4 RESP Specification | |
| transportation and storage | ≤93% | 4.1 Measurement | RA-LL Impedance |
| Altitude Range | 4.2 Detection range of respiratory impedance | 0.3～3Ω | |
| working | *-500 － 4,600m(-1,600 － 15,000feet) | 4.3 Base resistance range | 200～4000Ω |
| transportation and storage | *-500 － 13,100m(-1,600 － 43,000feet) | 4.4 Bandwidth | 0.1～2.5Hz |
| Electric specification | 100～250 VAC, 50/60 Hz, Maximum 70VA | 4.5 RESP Rate Range | |
| Fuss: T3.15A of displayer 15” | adult | 0～120 BrPM | |
| 2.2 Displaying Info | Pediatric and neonate | 0～150 BrPM | |
| Maximum 6 waveforms | Resolution | 1 BrPM | |
| One alarm light (yellow/red) | accuracy | ±2 BrPM | |
| One working indictor(green) | 4.6 Suffocation alarm | 10～40 seconds | |
| One battery charging indictor(yellow) | 5 SpO2 | ||
| Three corresponding sound alarming mode | 5.1 SPO2 | ||
| 2.3 Battery | range | 0～100% | |
| 14.8V/4400mAhLi-ion rechargeable battery | Resolution | 1% | |
| Under normal working condition, battery works for 100 minutes | Accuracy | 70～100%:±2 DIGIT | |
| It can works for 5 minutes after the first time power alarm | 0%～69%: Not defined | ||
| Maximum 8 hours charging time | 5.2 pulse rate | ||
| 2.4 Recorder | measurement range | 20～300bpm | |
| Paper’s width | 48mm | Resolution | 1bpm |
| Printing speed | 25 mm/S | accuracy | ±3bpm |
| Scanning waveform | 2 channels | 6 TEMP’s specification | |
| Recording type | 8 seconds real time recording | 6.1 TEMP transducers applied | YSI series, CYF series |
| 2.5 Recall | 6.2 Channel’s quantity | 2 channels | |
| Trend recall | 6.3 Measurement | ||
| Short trend | 1 hour, resolution: 1 second or 5 second | range | 0～50℃ |
| Long trend | 72hours ,resolution 1 minute,5minute or 10minute | Resolution | 0.1℃ |
| NIBP measurement recall | 400 pcs NIBP measured value’s recall | Accuracy | ±0.1℃, not include a sensor error |
| 3.ECG Specification | 7 NIBP specification | ||
| 3.1 Lead configuration | 7.1 Measurement | Pulse wave oscillation | |
| Standard 3 lead or 5 lead cable | 7.2 Working mode | manual/auto | |
| 3 lead | RA,LA,LL,lead method:I,II,III | 7.3 Interval of auto measurement | 1,2,3,4,5,10,15,30,60,90,120,180,240,480 minutes |
| 5-lead | RA,LA,LL,RL,V,lead method:I,II,III,aVR,aVL,aVF,V | 7.4 Measurement time of Continuous measurement mode | 5 minutes |
| 3.2 Gain | X0.25,X0.5,X1,X2,auto | 7.5 Pulse rate range | 30 ～ 250 bpm |
| 3.3 Heart Rate | 7.6 Measuring range and accuracy | ||
| Range | Range | ||
| Adult | 15 ～ 300bpm (beat/min) | ADULT | |
| Neonate/pediatric | 15 ～ 350 bpm(beat/min) | SYS | 40～270mmHg |
| Accuracy | ±1% or ±1bpm,choose the bigger one | DIA | 10～215mmHg |
| Resolution | 1 bpm(beat/min) | MEAN | 20～235mmHg |
| 3.4 Sensitivity | > 200 µV (peak-peak date ) | PEDIATRIC | |
| 3.5 Impedance | > 5 (Megohm) | SYS | 40～200mmHg |
| 3.6 Bandwidth | DIA | 10～150mmHg | |
| Diagnostic mode | 0.05～130Hz | MEAN | 20～165mmHg |
| Monitoring mode | 0.5～40Hz | NEONATE | |
| Operation mode | 1～20Hz | SYS | 35～135mmHg |
| 3.7 Common-mode rejection ratio | DIA | 10～100mmHg | |
| Diagnostic mode | > 90 dB | MEAN | 20～110mmHg |
| Monitoring mode | > 100 dB | Static Pressure Range | 0～300mmHg |
| Operation mode | > 100 dB | Static Pressure accuracy | ±3mmHg |
| 3.8 Electrode polarization voltage range | * ±300mV | blood pressure accuracy | |
| 3.9 Pacemaker pulse detection | Maximum average error | ±5mmHg | |
| It can test the following pace-maker pulse : | Maximum standard deviation | ±8mmHg | |
| Extent : | ±2 mV ～ ±700mV | 7.7 over-pressure protection | |
| width | 0.1ms ～ 2ms | adult mode | 300 mmHg±10 mmHg |
| Rise time | 10µs～100µs | pediatric mode | 240 mmHg±10 mmHg |
| neonate mode | 150 mmHg±10 mmHg | ||
Multi Parameter Patient Monitor Description:
The Polovision T15 is a state-of-the-art, compact, and portable multi-parameter patient monitor specifically designed to meet the monitoring needs of cardiac patients. It offers a comprehensive range of standard measurements including ECG, NIBP, SPO2, temperature, and PR/HR, ensuring essential monitoring requirements are met. In addition, the monitor provides optional features such as 2-Ch IBP, EtCO2 (mainstream/sidestream), 12-leads ECG, Cardio-output, IoC, AG, Suntech BP, Masimo SPO2, defibrillation synchronization, nurse calling, touch screen, VGA output, printer connectivity, bedrail clamp, wall mounting bracket, trolley, and CMS integration to cater to advanced monitoring needs.
Caregivers will appreciate the convenience of quick keys that allow easy access to frequently used functions like menu navigation, trend review, alarm settings, and useful modes. The monitor features large fonts and mini-trends, ensuring clear visibility of vital information. It also boasts powerful data storage capabilities, with the ability to store up to 350 hours of full-disclosure data and 2000 NIBP measurement groups. The "Fan-free design" not only ensures a quiet environment but also prevents dust collection, reducing the risk of airborne contamination.
The alarm light on the monitor is designed to be visible from 180 degrees, providing caregivers with enhanced visibility of critical alerts. Ergonomic buttons enable quick access to common functions such as alarm silence, menu navigation, and initiating NIBP measurements. To aid in diagnostic support, the monitor includes an integral 2-trace thermal recorder that provides waveform and data reports.
Equipped with a long-lasting Li-ion battery, the Polovision T15 can provide up to 2 hours of continuous monitoring, ensuring uninterrupted patient care even in mobile or temporary settings.
The Polovision T15 sets a new standard in compact and portable multi-parameter patient monitoring, offering advanced features, user-friendly design, and reliable performance to meet the specific needs of cardiac patients and their caregivers.
Key Features:
1. Patient Care in One Touch: The PoloVision T15 monitor offers a simple and intuitive touch screen display (optional) that provides instant access to all functions, enabling quicker and more convenient patient monitoring.
2. Quick and Easy Monitoring: The compact and lightweight design of the PoloVision T15 allows for easy portability. Optional accessories like trolleys, wall mounting brackets, and bedrail mounts offer convenient in-hospital transport.
3. User-Friendly Interface: The PoloVision T15 features a user-friendly interface that is intuitive and easy to navigate. Dynamic mini-trends provide up to 350 hours of useful information on the patient's status, while the large font display ensures clear visibility of vital signs, even from a distance.
4. Powerful Applications: The centralized alarm system allows for quick review and modification of alarm settings. The logical review of alarms, events, trends, and full-disclosure data aids in accurate and efficient assessment of a patient's health. LAN capability enables communication with the Via CMS01 Central Monitoring System, facilitating easy monitoring.
Multi Parameter Patient Monitors Applications:
Based on different requirements on configurations, with basic parameters this 15 inch multi-parameter portable patient monitor could be used in ICU, CCU, OR/OT, neonatal department, general ward in hospitals, clinics, medical examination centers, rehabilitation centers, nursing homes and other places.
