Product Details:
|
| Other Name: | Portable Multi Parameter Patient Monitors | Model Number: | PoloVision T15 |
|---|---|---|---|
| Patient Types: | Adult , Pediatric, Neonate | Applications: | Homecare, Clinic, General Ward, ICU, CCU, OR/OT, Neonatal Department |
| Advantages: | Powerful Functions, High Accuracy, Stable And Reliable | Functions: | Monitoring ECG, SPO2, NIBP, Temp, Resp., PR/HR |
| Connectivity: | HIS, HL7 Compatible, USB Dataoutput, Center Monitoring System | Options: | 2IBP, EtCO2, C.O., AG, IoC, 12 Leads ECG |
| Size: | 15 Inch TFT LCD Screen | Net Weight: | 5.0KGs |
| Gross Weight: | 6.8 KGs |

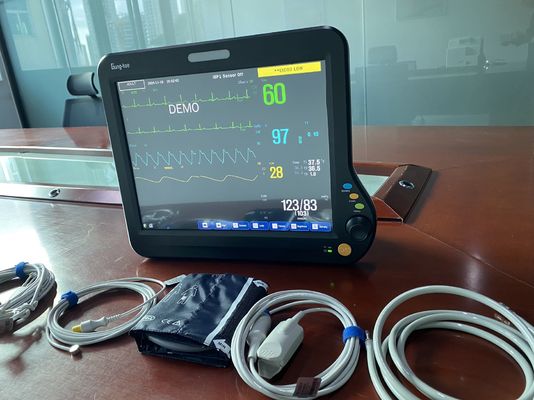

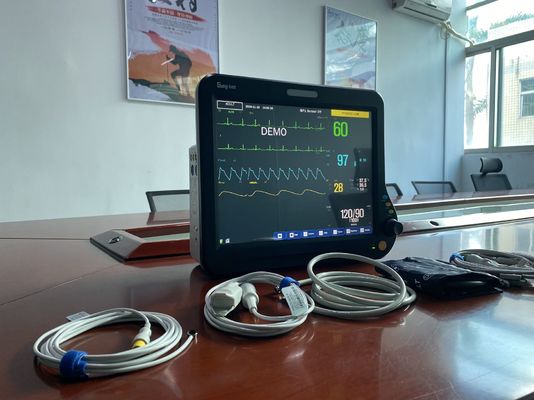

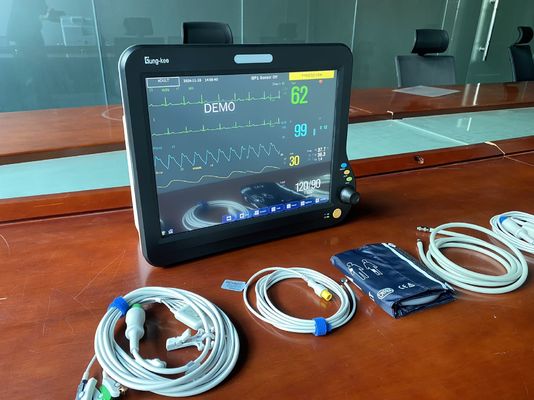

15 inch portable multi parameter patient monitors with HL7 compatible, USB dataouput, VGA, nurse calling and vital sings monitoring functions
PoloVison T15 Portable Multi Parameter Patient Monitors Features:
1. Versatile and portable, the Polovision T15 is a compact multiparameter patient monitor suitable for adults, children, and infants. It caters to the monitoring needs of various healthcare settings, including GP surgeries, operating theaters, intensive care units (ICU), cardiac care units (CCU), neonatal intensive care units (NICU), clinics, and more.
2. The Polovision T15 comes in a 15-inch size and offers options for standard and semi-modular patient monitors. This flexibility allows healthcare professionals to customize the device to meet their specific clinical applications.
3. The patient monitor is equipped with adjustable audible and visual alarms, allowing individuals to personalize alarm limits according to their preferences and requirements.
4. With the Polovision T15, comprehensive documentation is made easy. It can print out data, waveforms, trend tables, and trend graphs, ensuring vital information is recorded and readily available for review.
5. The user-friendly interface of the Polovision T15 enhances ease of use, featuring convenient features like pop-up menus, dialogue boxes, and knobs for intuitive operation.
6. Innovative technology integrated into the patient monitor ensures that electrosurgical procedures do not interfere with the accuracy of ECG waveforms and heart rate measurements.
7. The Polovision T15 allows for long-term storage of trend data, with a capacity of up to 350 hours. It also provides storage for 2000 NIBP groups and includes USB data output functionality.
8. Designed with energy efficiency in mind, the Polovision T15 has low power consumption and a standby mode. It is powered by a rechargeable high-energy built-in battery, offering convenience and reliability.
9. The patient monitor simultaneously displays Oxy CRG and 7-lead ECG waveforms, with a large font mode and customizable display formats, ensuring clear and tailored data presentation.
10. Utilizing the Goertzel algorithm, the Polovision T15 delivers fast and accurate non-invasive blood pressure (NIBP) measurements, simplifying the process of obtaining blood pressure readings.
11. Advanced features of the Polovision T15 include ST segment analysis, bed-to-bed view, pacemaker functionality, drug calculation capabilities, and analysis for 34 types of arrhythmias, providing comprehensive clinical support.
12. The patient monitor supports network connectivity, including layer 3 communications and automatic DHCP IP address allocation for both wired and wireless networks, facilitating seamless integration into existing healthcare systems.
13. The Polovision T15 is compatible with Hospital Information Systems (HIS) and adheres to HL7 compliance standards, ensuring smooth data exchange and compatibility with existing hospital infrastructure.
14. Standard configurations of the Polovision T15 include essential parameters such as 5/3 lead ECG, SPO2, NIBP, temperature, and HR/PR, providing a comprehensive set of monitoring capabilities.
15. In addition to the standard features, the Polovision T15 offers additional functionalities such as drug calculation, hemodynamic calculation, and assessment of the Modified Early Warning Clinical Score (MEWS), enhancing the clinical utility of the device.
16. Optional features of the Polovision T12 include 2-channel invasive blood pressure (IBP), EtCO2 monitoring (mainstream/sidestream), 12-lead ECG, cardiac output measurement, index of cerebrum (IoC), anesthetic gas (AG) monitoring, Suntech BP, Masimo SPO2, defibrillation synchronization, central monitoring system integration, nurse calling functionality, touch screen, VGA output, printer, bedrail clamp, wall mounting bracket, and trolley. These optional features cater to advanced monitoring needs and specific clinical requirements.
PoloVision T15 Portable Multi Parameter Patient Monitors Technical Specifications:
| 1.Patient Monitor Type | 3.10 Pacing pulse suppression | ||
| Standard electric shock proof | Class I electric shock proof equipment | When the pacing analysis switch is on, it can suppress pacing pulse within the following condition and will not affect the calculation of heart rate: | |
| EMC | Class A | extent | ±2 mV ～ ±700mV |
| Standard electric shock proof level | CF level for ECG(RESP); type BF for SpO2,NIBP; TEMP | width | 0.1ms ～ 2ms |
| Liquid-Proof level | common seal apparatus, does not have the function to prevent liquid entering | Rise time | 10µs ～ 100µs |
| Working method | Continuous | 3.11 Recovery time of base line | After Defibrillation< 3 second |
| 2.Patient Monitor Specification | 3.12 Signal’s range | ±8 mV (peak value ) | |
| 2.1 Working conditions | 3.13 Calibration signal | 1mV (peak value ),accuracy ±5% | |
| TEMP range | 3.14 ST measurement | ||
| working | 0 ～ 40℃ | Range | *-2.5mV ～ +2.5mV |
| transportation and storage | *-20 ～ 60℃ | Measurement accuracy | within -0.8 mV～+0.8mV, the tolerance is ±0.02mVor ±10% |
| Humidity | Without this range, there is no definition | ||
| working | ≤85 % | 4 RESP Specification | |
| transportation and storage | ≤93% | 4.1 Measurement | RA-LL Impedance |
| Altitude Range | 4.2 Detection range of respiratory impedance | 0.3～3Ω | |
| working | *-500 － 4,600m(-1,600 － 15,000feet) | 4.3 Base resistance range | 200～4000Ω |
| transportation and storage | *-500 － 13,100m(-1,600 － 43,000feet) | 4.4 Bandwidth | 0.1～2.5Hz |
| Electric specification | 100～250 VAC, 50/60 Hz, Maximum 70VA | 4.5 RESP Rate Range | |
| Fuss: T3.15A of displayer 15” | adult | 0～120 BrPM | |
| 2.2 Displaying Info | Pediatric and neonate | 0～150 BrPM | |
| Maximum 6 waveforms | Resolution | 1 BrPM | |
| One alarm light (yellow/red) | accuracy | ±2 BrPM | |
| One working indictor(green) | 4.6 Suffocation alarm | 10～40 seconds | |
| One battery charging indictor(yellow) | 5 SpO2 | ||
| Three corresponding sound alarming mode | 5.1 SPO2 | ||
| 2.3 Battery | range | 0～100% | |
| 14.8V/4400mAhLi-ion rechargeable battery | Resolution | 1% | |
| Under normal working condition, battery works for 100 minutes | Accuracy | 70～100%:±2 DIGIT | |
| It can works for 5 minutes after the first time power alarm | 0%～69%: Not defined | ||
| Maximum 8 hours charging time | 5.2 pulse rate | ||
| 2.4 Recorder | measurement range | 20～300bpm | |
| Paper’s width | 48mm | Resolution | 1bpm |
| Printing speed | 25 mm/S | accuracy | ±3bpm |
| Scanning waveform | 2 channels | 6 TEMP’s specification | |
| Recording type | 8 seconds real time recording | 6.1 TEMP transducers applied | YSI series, CYF series |
| 2.5 Recall | 6.2 Channel’s quantity | 2 channels | |
| Trend recall | 6.3 Measurement | ||
| Short trend | 1 hour, resolution: 1 second or 5 second | range | 0～50℃ |
| Long trend | 72hours ,resolution 1 minute,5minute or 10minute | Resolution | 0.1℃ |
| NIBP measurement recall | 400 pcs NIBP measured value’s recall | Accuracy | ±0.1℃, not include a sensor error |
| 3.ECG Specification | 7 NIBP specification | ||
| 3.1 Lead configuration | 7.1 Measurement | Pulse wave oscillation | |
| Standard 3 lead or 5 lead cable | 7.2 Working mode | manual/auto | |
| 3 lead | RA,LA,LL,lead method:I,II,III | 7.3 Interval of auto measurement | 1,2,3,4,5,10,15,30,60,90,120,180,240,480 minutes |
| 5-lead | RA,LA,LL,RL,V,lead method:I,II,III,aVR,aVL,aVF,V | 7.4 Measurement time of Continuous measurement mode | 5 minutes |
| 3.2 Gain | X0.25,X0.5,X1,X2,auto | 7.5 Pulse rate range | 30 ～ 250 bpm |
| 3.3 Heart Rate | 7.6 Measuring range and accuracy | ||
| Range | Range | ||
| Adult | 15 ～ 300bpm (beat/min) | ADULT | |
| Neonate/pediatric | 15 ～ 350 bpm(beat/min) | SYS | 40～270mmHg |
| Accuracy | ±1% or ±1bpm,choose the bigger one | DIA | 10～215mmHg |
| Resolution | 1 bpm(beat/min) | MEAN | 20～235mmHg |
| 3.4 Sensitivity | > 200 µV (peak-peak date ) | PEDIATRIC | |
| 3.5 Impedance | > 5 (Megohm) | SYS | 40～200mmHg |
| 3.6 Bandwidth | DIA | 10～150mmHg | |
| Diagnostic mode | 0.05～130Hz | MEAN | 20～165mmHg |
| Monitoring mode | 0.5～40Hz | NEONATE | |
| Operation mode | 1～20Hz | SYS | 35～135mmHg |
| 3.7 Common-mode rejection ratio | DIA | 10～100mmHg | |
| Diagnostic mode | > 90 dB | MEAN | 20～110mmHg |
| Monitoring mode | > 100 dB | Static Pressure Range | 0～300mmHg |
| Operation mode | > 100 dB | Static Pressure accuracy | ±3mmHg |
| 3.8 Electrode polarization voltage range | * ±300mV | blood pressure accuracy | |
| 3.9 Pacemaker pulse detection | Maximum average error | ±5mmHg | |
| It can test the following pace-maker pulse : | Maximum standard deviation | ±8mmHg | |
| Extent : | ±2 mV ～ ±700mV | 7.7 over-pressure protection | |
| width | 0.1ms ～ 2ms | adult mode | 300 mmHg±10 mmHg |
| Rise time | 10µs～100µs | pediatric mode | 240 mmHg±10 mmHg |
| neonate mode | 150 mmHg±10 mmHg | ||
Portable Cardiac Patient Monitor Description:
The Polovision T15 is a compact and portable multiparameter patient monitor specifically designed for cardiac patients. It provides essential measurements such as ECG, NIBP, SPO2, temperature, and PR/HR to fulfill basic monitoring requirements. Additionally, it offers optional features including 2-Ch IBP, EtCO2 (mainstream/sidestream), 12-lead ECG, Cardio-output, IoC, AG, Suntech BP, Masimo SPO2, defibrillation synchronization, nurse calling, touch screen, VGA output, printer, bedrail clamp, wall mounting bracket, trolley, and CMS to meet advanced monitoring needs.
With its quick keys, caregivers can easily access frequently used functions such as menu navigation, trend review, alarm settings, and useful modes. The monitor features large fonts and mini-trends for clear visibility and offers powerful data storage capabilities. It can store up to 350 hours of full-disclosure data and 2000 NIBP measurement groups. The "Fan-free design" ensures a quiet environment, prevents dust collection, and reduces the risk of airborne contamination.
The alarm light on the monitor is visible from 180 degrees, and the ergonomic buttons allow caregivers to quickly access common functions such as alarm silence, menu navigation, and starting NIBP measurements. The integral 2-trace thermal recorder provides waveform and data reports for diagnostic support. The Li-ion battery enables up to 2 hours of continuous monitoring.
Key Features:
| Items | Descriptions |
| 1 | One-Touch Patient Care: The PoloVision T15 monitor simplifies patient monitoring with its user-friendly touch screen display (optional), providing instant access to all functions and ensuring efficient and convenient monitoring. |
| 2 | Quick and Easy Monitoring: The PoloVision T15 is designed to be compact and lightweight, allowing for easy portability. Optional accessories such as trolleys, wall mounting brackets, and bedrail mounts offer convenient transport within the hospital setting. |
| 3 | Intuitive User Interface: With its user-friendly interface, the PoloVision T12 ensures ease of navigation. Dynamic mini-trends provide up to 350 hours of valuable patient information, while the large font display ensures clear visibility of vital signs, even from a distance. |
| 4 | Powerful Applications: The centralized alarm system allows for quick review and customization of alarm settings. The comprehensive review of alarms, events, trends, and full-disclosure data aids in accurate and efficient patient assessment. LAN capability enables seamless communication with the Via CMS01 Central Monitoring System, facilitating easy monitoring. |
Applications:
This versatile 15-inch portable multi-parameter patient monitor is suitable for a wide range of healthcare settings. These settings encompass ICU, CCU, operating rooms/theatres, neonatal departments, general hospital wards, clinics, medical examination centers, rehabilitation centers, nursing homes, and similar healthcare facilities. The monitor's configuration can be customized to meet the specific needs of each setting.
