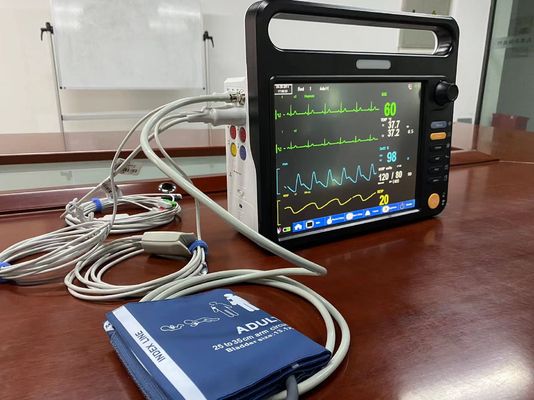

ICU Patient Vital Signs Monitor With 12.1 Inch Screen 6 Standard Parameters

ICU Patient Vital Signs Monitor With 12.1 Inch Screen 6 Standard Parameters
ICU Patient Vital Signs Monitor With 12.1 Inch Screen 6 Standard Parameters

Large Image :  ICU Patient Vital Signs Monitor With 12.1 Inch Screen 6 Standard Parameters

Product Details:
Place of Origin: P.R.China
Brand Name: Hung-Kee
Certification: IEC
Model Number: HighAcuity T12
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Carton Size: 405.0 x 375.00 x 310.0mm (1 pcs/CTN), 0.05CBM G.W.: 5.50Kgs, N.W.: 4.00Kgs
Delivery Time: 5 to 30 days
Payment Terms: T/T
Supply Ability: 2000 units per month

ICU Patient Vital Signs Monitor With 12.1 Inch Screen 6 Standard Parameters

Description
Standard: 3/5 Leads ECG, NIBP, SPO2, 2Temp, PR/HR Dimension: 300.0 X 170.00 X 305.00mm
Gross Weight: 5.500 KGs Optional 1: 2IBP, AG, EtCO2, Masimo SPo2, Printer, 2IBP
Optional 2: Center Monitoring System, Suntech NIBP, Touch Language: English, Russia, French, Polish, Spanish, Portuguese
Highlight:

ICU Patient Vital Signs Monitor

,

12.1 Inch Patient Vital Signs Monitor

,

6Parameters patient vital monitor

cardiac patient monitor Portable patient monitor sidestream CO2 module ICU cardiac monitor neonate patient monitor



12.1” Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring cardiac monitor HighAcuity T12





Cardiac Patient Monitor Quick Details:



1. 12.1 inch TFT LCD screen, 6 standard parameters

2. 32-levels sound volume adjustment

3. 10-levels brightness adjustment

4. Maximum 168 hours graphic and tabular trends of all parameters;

5. ST Segment/Arrhythmia Analysis, Tabular Trending/Graphical Trending, Drug Calculations, OXY CRG

6. Maximum 20 hours continual working time (optional)

7. Touch screen (optional)

8. Masimo SPO2 module (optional)

9. EtCO2 module (optional)

10. 2IPB module (optional)

11. CO module (optional)

12. Suntech BP module (optional)



Hung-Kee Patient monitor Brochure 2022.01.pdf





Cardiac Patient Monitor Technical details:



Table EtCO2 Specifications

Parameter Specification
Work mode Work, Standby
CO2 range 0 mmHg - 99 mmHg (0 kPa - 13.2 kPa)
Unit mmHg or kPa
CO2accuracy

0 mmHg- 40 mmHg (0 kPa- 5.33 kPa): ±2 mmHg(±0.3 kPa)

41 mmHg- 76 mmHg (5.47 kPa- 10.1 kPa): ±5 mmHg(±0.7 kPa)

77 mmHg- 99 mmHg (10.3 kPa- 13.2 kPa): ±10 mmHg(±1.3 kPa)

Waveform speed 6.25 mm/s, 12.5 mm/s
Alarm delay <10s






( for more detailed technical data please refer to above PDF brochure)



Cardiac Patient Monitor Description:



The HighAcuity T12 offers an optional plug-and-play module structure for more advanced monitoring functions such as EtCO2, aiding clinicians to identify signs of patient deterioration due to respiratory distress, and other options like 2-ch IBP, C.O., Suntech BP and Masimo SPO2 modules. Integrated in each HighAcuity T12 patient monitor, 3 and 5- lead ECG, SpO2, NIBP, respiration, and temperature, offering a robust parameter platform to meet the needs of the ambulatory surgical care environment.



1.New high-precision cardiac patient monitor

2.12.1" color TFT display, up to 7 waveforms
3.Arrhythmia analysis, ST calculation, Pace analysis
4.Various interfaces: A single guide, standard, large font, all leads
5.Anti-ESU, anti- defibrillator
6.Patient info input management function
7.Multi-lead ECG waveforms display in phase
8.1-7 level audio/visual alarming
9.Large volume of tabular and graphic trends information storage and easy to recall




Cardiac Patient Monitor Standard Accessories:



5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord



Cardiac Patient Monitor Optional Accessories:



Aluminum trolley, wall mount stand



FAQ for Cardiac Patient Monitor:



1.Q: How long is the warranty time?
A: 24 Months


2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.



3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.


4.Q: Do you work on OEM and SKD project?

A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.


5.Q:Can the monitors display wave-forms and numerical data?

A: Yes, can display wave-forms and numerical data.



6. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.



7.Q:How many waveforms can be displayed on the screen?
A: The screen can display up to a maximum of 7 wave-forms.



8. Q: How to proceed an order for portable patient monitor or other medical equipment?

A: 1st let us know your requirements or application.

2nd We quote according to your requirements or our suggestions.

3rd customer arrange payment for formal order.

4th We arrange the production.



9.Q:Are the batteries a cost option?
A: No, the battery is included in the basic price of the system.



10.Q:Are You A Manufacturer Or Trading Company?

A: We Are The Top 10 Manufacturer of ICU Equipment in China Since 2008.
