Product Details:
|
| Application: | Adult, Child , Neonate | Type: | Patient Monitor |
|---|---|---|---|
| Product Name: | Heart Monitor Machine | Color: | Black |
| Size: | 12.1 Inch | ||
| Highlight: | 6Parameters Cardiac Patient Monitor,Cardiac Patient Monitor 12.1Inch,Cardiac touchscreen patient monitor |
||
Cardiac patient monitor ICU cardiac monitor modular patient monitor portabl patient monitor cardiac patient monitor
12.1” Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring cardiac monitor HighAcuity T12
Cardiac Patient Monitor Quick Details:
1. 12.1 inch TFT LCD screen, 6 standard parameters
2. 32-levels sound volume adjustment
3. 10-levels brightness adjustment
4. Maximum 168 hours graphic and tabular trends of all parameters;
5. ST Segment/Arrhythmia Analysis, Tabular Trending/Graphical Trending, Drug Calculations, OXY CRG
6. Maximum 20 hours continual working time (optional)
7. Touch screen (optional)
8. Masimo SPO2 module (optional)
9. EtCO2 module (optional)
10. 2IPB module (optional)
Hung-Kee Patient monitor Brochure 2022.01.pdf
Cardiac Patient Monitor Technical details:
Table EtCO2 Specifications
| Parameter | Specification |
| Work mode | Work, Standby |
| CO2 range | 0 mmHg - 99 mmHg (0 kPa - 13.2 kPa) |
| Unit | mmHg or kPa |
| CO2accuracy |
0 mmHg- 40 mmHg (0 kPa- 5.33 kPa): ±2 mmHg(±0.3 kPa) 41 mmHg- 76 mmHg (5.47 kPa- 10.1 kPa): ±5 mmHg(±0.7 kPa) 77 mmHg- 99 mmHg (10.3 kPa- 13.2 kPa): ±10 mmHg(±1.3 kPa) |
( for more detailed technical data please refer to above PDF brochure)
Cardiac Patient Monitor Description:
Integrated in each HighAcuity T12 patient monitor, 3 and 5- lead ECG, SpO2, NIBP, respiration, and temperature, offering a robust parameter platform to meet the needs of the ambulatory surgical care environment.
1.New high-precision cardiac patient monitor
2.12.1" color TFT display, up to 7 waveforms
3.Arrhythmia analysis, ST calculation, Pace analysis
4.Various interfaces: A single guide, standard, large font, all leads
5.Anti-ESU, anti- defibrillator
6.Patient info input management function
7.Multi-lead ECG waveforms display in phase

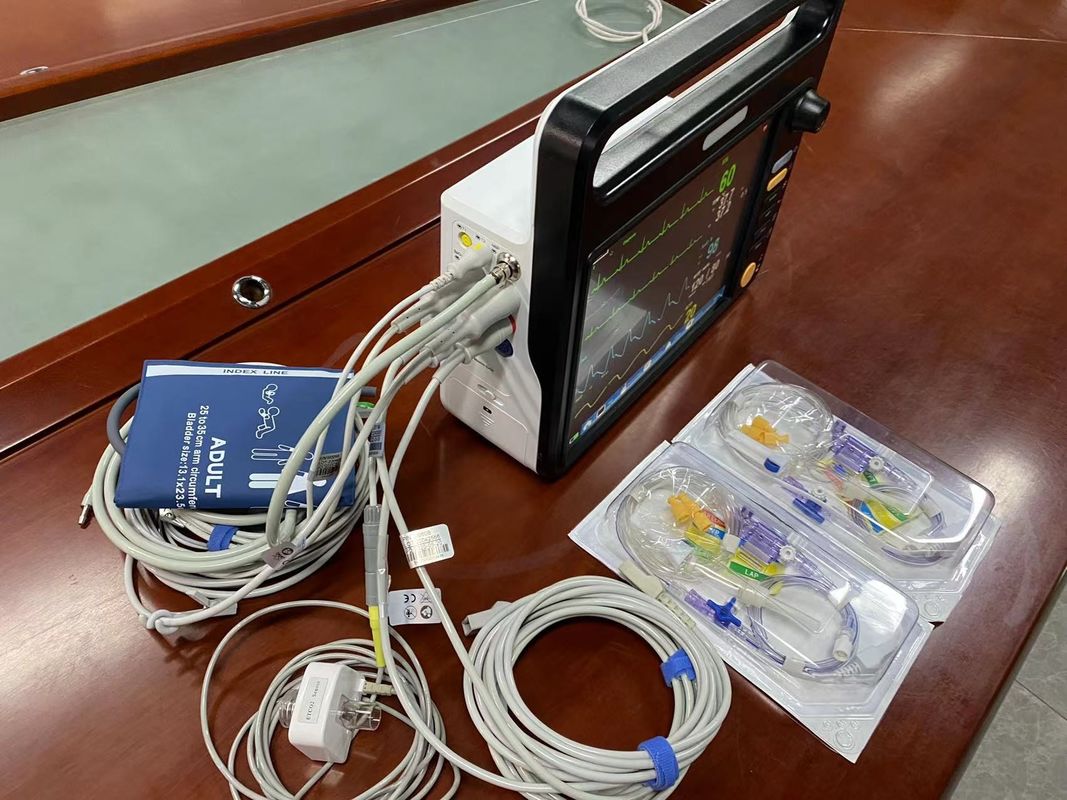

Cardiac Patient Monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
Cardiac Patient Monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for Cardiac Patient Monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
4.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
5.Q:Can the monitors display wave-forms and numerical data?
A: Yes, can display wave-forms and numerical data.
6. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
7.Q:How many waveforms can be displayed on the screen?
A: The screen can display up to a maximum of 7 wave-forms.
8. Q: How to proceed an order for portable patient monitor or other medical equipment?
A: 1st let us know your requirements or application.
2nd We quote according to your requirements or our suggestions.
3rd customer arrange payment for formal order.
4th We arrange the production.
9.Q:Are the batteries a cost option?
A: No, the battery is included in the basic price of the system.
