Product Details:
|
| Standard: | ECG, NIBP, SPO2, 2Temp, Resp., PR/HR | Option 1: | Masimo SPo2, C.O., 2IBP, Suntech BP, EtCO2 |
|---|---|---|---|
| Option 2: | Printer, Center Monitoring System (CMS), Touch | Language: | English, Russia, French, Spanish, Portuguese, Turkey |
| Function: | Monitor, Diagnostic, Operation | Application: | Adult, Pediatric, Neonate, OR |
| Warranty: | 2 Years | Trade Terms: | CIF & Exworks |
| Payment Terms: | TT, Western Union | Screen: | Colorful TFT LCD 12.1 Inch |
| MOQ: | 1 Unit | OEM/ODM/SKD: | Acceptable |
| Highlight: | Multilingual Automated Vital Signs Machine,Automated Vital Signs Machine Portable,Pediatric automatic vitals machine |
||
Neonate patient monitor Portable patient monitor ICU cardiac monitor modular patient monitor multi parameter monitor

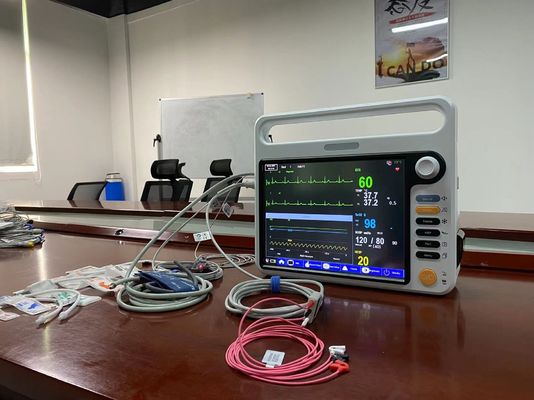

12.1" portable high acuity neonate Multi-parameter Patient Monitor neonatal monitoring cardiac monitor HighAcuity N12
Neonate Patient Monitor Quick Details:
1. 12.1 inch TFT LCD screen,portable neonatal monitor, 6 standard parameters
2. 32-levels sound volume adjustment
3. 10-levels brightness adjustment
Hung-Kee Patient monitor Brochure 2022.01.pdf
Neonate Patient Monitor Technical details:
Table EtCO2 Specification
| Transducer Type | Sidestream CO2 Sensor |
| Sampling Rate | 50 mL/minute ± 10 mL/minute |
| Principle of Operation | Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts in optics |
| Initialization Time | Capnogram displayed in less than 5 seconds at ambient temperature (e.g., 25°C); full specifications within 1 minute |
|
CO2 Measurement Range |
Selectable at 0 ~ 150 mm Hg 0 ~ 19.7% 0 ~ 20 kPa (at 760 mm Hg) Barometric Pressure supplied automatically by onboard chip |
| CO2 Resolution |
0.1mmHg, at 0 to 49 mm Hg 0.2 mmHg, at 50 to 150 mm Hg |
|
CO2 Accuracy
|
±2 mm Hg at 0 ~ 40 mm Hg ±5% of reading at 41 ~ 150 mm Hg ± 8% of reading at above 80 BPM |
| Scavenging Port | Yes |
| Data Output |
CO2 gas concentration (mm Hg), End-tidal CO2, Inspired CO2, Respiratory Rate, Gas and barometric pressure |
( for more detailed technical data please refer to above PDF brochure)
Neonate Patient Monitor Description:
The HighAcuity N12 neonate patient monitor is part of Hung-Kee’s premier patient monitoring solution designed to enhance patient care and support timely and accurate clinical assessment across Emergency, Critical Care, and Operating Room environments in child or neonatal hospitals.

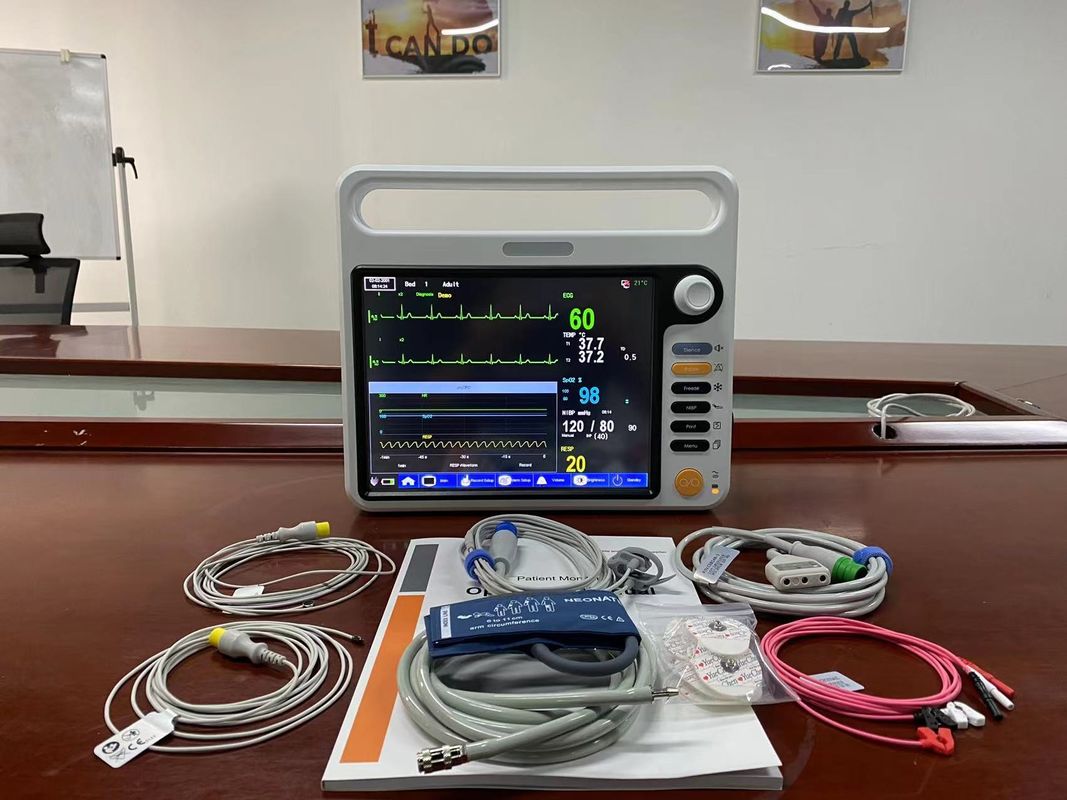

Neonate Patient Monitor Standard Accessories:
3-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
Neonate Patient Monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for neonate patient monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
4.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
5.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
6. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
7. Q: How to proceed an order for portable patient monitor or other medical equipment?
A: 1st let us know your requirements or application.
2nd We quote according to your requirements or our suggestions.
3rd customer arrange payment for formal order.
4th We arrange the production.
8.Q:Are You A Manufacturer Or Trading Company?
A: We Are The Top 10 Manufacturer of ICU Equipment in China Since 2008.
9.Q:Do You Need Foreign Agent?
A: Surely Yes, We Warmly Welcome Foreign Clients To Be our Agent.
