Product Details:
|
| Basic Parameter: | ECG, SPO2, NIBP, Temp, Multi-Gas | Application: | Operation Room |
|---|---|---|---|
| Model Number: | AM15 | Screen Size: | 15 TFT LCD Screen |
| Option: | 2ch-IBP, C.O., Suntech BP, Massimo SPO2 | Anesthesia Monitor Optional Accessories: | Aluminum Trolley, Wall Mount Stand |
| Product Name: | Multi Parameter Patient Monitor | ||
| Highlight: | Massimo SPO2 Anesthesia Patient Monitor,Suntech BP Anesthesia Patient Monitor,IEC Multi Parameter Patient Monitor |
||

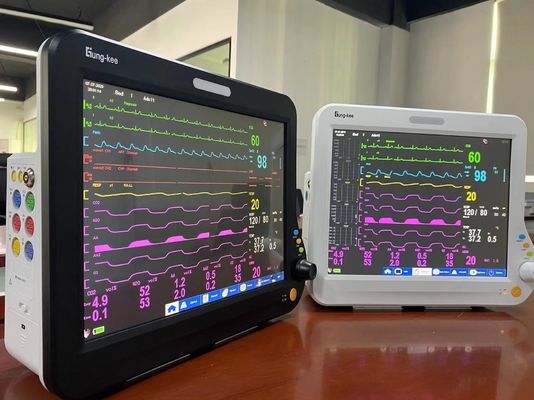

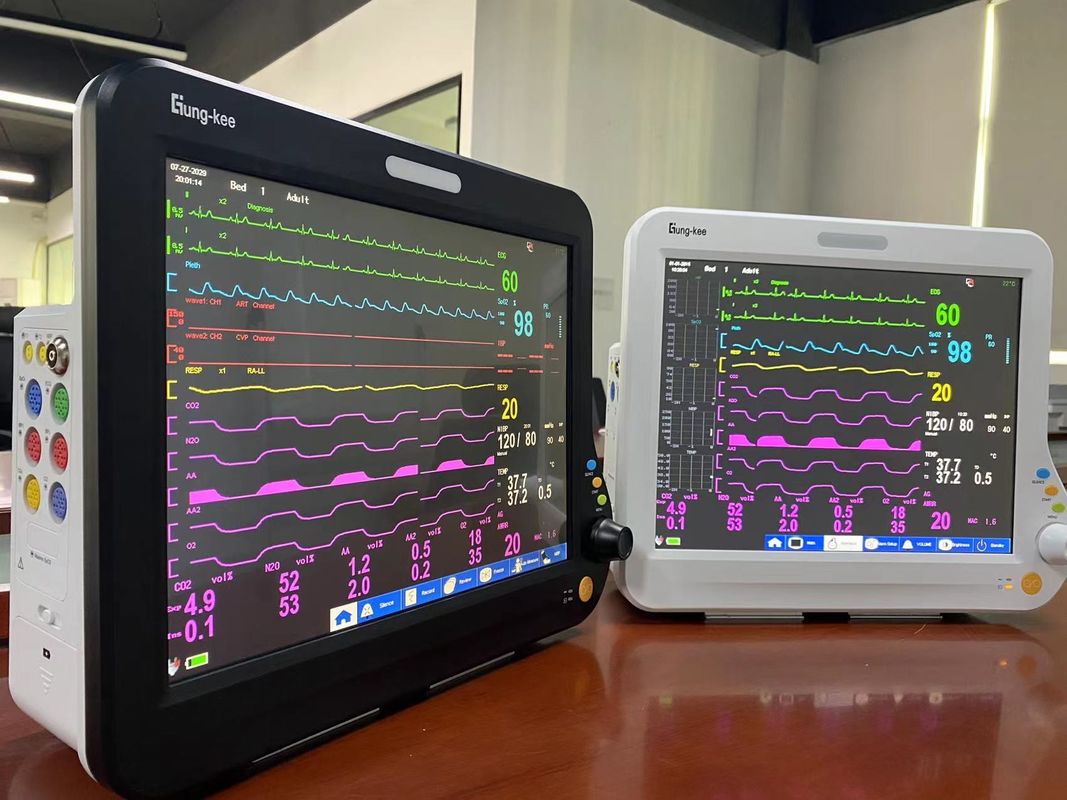

15" Anesthesia monitor Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring bedside cardiac monitor HighAcuity AM15
Anesthesia monitor Quick Details:
This anesthesia Monitor is used for monitoring, recording, and alarming of multiple physiological parameters of adults, pediatrics and neonates. You can view measurement trend graphs and alarming events to help you identify changes in the patient's physiological condition.
People receiving anesthesia must be carefully watched, because the medicines used for anesthesia affect the central nervous system, cardiovascular system, and respiratory system (airway and lungs). Anesthesia suppresses many of the body's normal automatic functions. So it may significantly affect your breathing, heartbeat, blood pressure, and other body functions. Parameters commonly used for monitoring during anesthesia include: non-invasive blood pressure, oxygen saturation, electrocardiograph and temperature.
1. 15 inch TFT LCD screen, 6 standard parameters
2. 32-levels sound volume adjustment
3. Maximum 168 hours graphic and tabular trends of all parameters
4. ST Segment/Arrhythmia Analysis, Tabular Trending/Graphical Trending, Drug Calculations, OXY CRG
Sidestream Anesthesia Gas Module Technical details:
| Temperature | -5~50℃ |
| Relative humidity | 10-90%(Non-condensing) |
| Atmospheric pressure | 55-115kpa |
| Power consumption | 150ma |
| Port and protocol | RS-232/ Standard E-8-1,38.4 kBaud,10 ms data interval (KM) or Customized according to customers' requirements |
| Co2 Measuring Range | 0~150mmHg |
| Accuracy | 0~40mmHg, inaccuracy≤± 2mmHg； 41~70mmHg, inaccuracy≤±5% of Reading； 70~100mmHg, inaccuracy≤± 8% of Reading； 101~150mmHg, inaccuracy≤±10% of Reading； |
| N₂O | |
| Measuring range | 0~100% |
| Inaccuracy | ±(2vol%+ 2% of Reading) |
| HAL, ENF, ISO | |
| Measuring range | 0-12% |
| Inaccuracy: | For 0~8%, ±(0,2 vol% + 5% of Reading) |
| For 8~12% | Unspecified |
| SEV | |
| Measuring range | 0~15% |
| Inaccuracy: | For 0~10%,±(0,2 vol%+5% of reading) |
| For 10~15% | unspecified |
| DES | |
| Measuring range | 0~25%； |
| Inaccuracy: |
For 0~18%,±(0,2 vol%+5% of reading); For 18~25%, unspecified. |
| Respiration Rate Range | 2~150 t/min |
| Inaccuracy | the bigger value of ±1% or 1t/min |
Anesthesia monitor Description:
The HighAcuity AM15 anesthesia monitor portable patient monitor is part of Hung-Kee’s premier patient monitoring solution designed to enhance patient care and support timely and accurate clinical assessment across Emergency, Critical Care, and Operating Room environments. The HighAcuity AM15 offers an option a plug-and-play module structure for more advanced monitoring functions such as EtCO2, aiding clinicians to identify signs of patient deterioration due to respiratory distress. This cardiac patient monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate.
Our Anesthetic Gas Detector/Module (SAG-05) can simultaneously measure the concentration waveform and data of CO2, N2O,anesthetic gas, as well as respiratory rate. The types of anesthetic gases measured include halothane, enflurane, isoflurane, sevoflurane and desflurane. The user can manually select the type of anesthetic gas.
1. Thinner and lighter in design, convenient and portable for users
2. Real-time S-T segment analysis, pacemaker detection
Anesthesia monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
Anesthesia monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for anesthesia monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
4.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
5.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
6. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
7. Q: How to proceed an order for portable patient monitor or other medical equipment?
A: 1st let us know your requirements or application.
2nd We quote according to your requirements or our suggestions.
3rd customer arrange payment for formal order.
4th We arrange the production.
