Product Details:
|
| Basic Parameter: | ECG, SPO2, NIBP, Temp, Multi-Gas | Applications: | Operation Room |
|---|---|---|---|
| Model Number: | AM15 | Screen Size: | 15 TFT LCD Screen |
| Optional Functions: | 2ch-IBP, C.O., Suntech BP, Massimo SPO2 | Atmospheric Pressure: | 55-115kpa |
| Anesthesia Monitor Optional Accessories: | Aluminum Trolley, Wall Mount Stand | Product Name: | Multi Parameter Patient Monitor |
| Highlight: | SPO2 Anesthesia Patient Monitor,ECG ICU Cardiac Monitor,Multi Parameter Modular Patient Monitor |
||

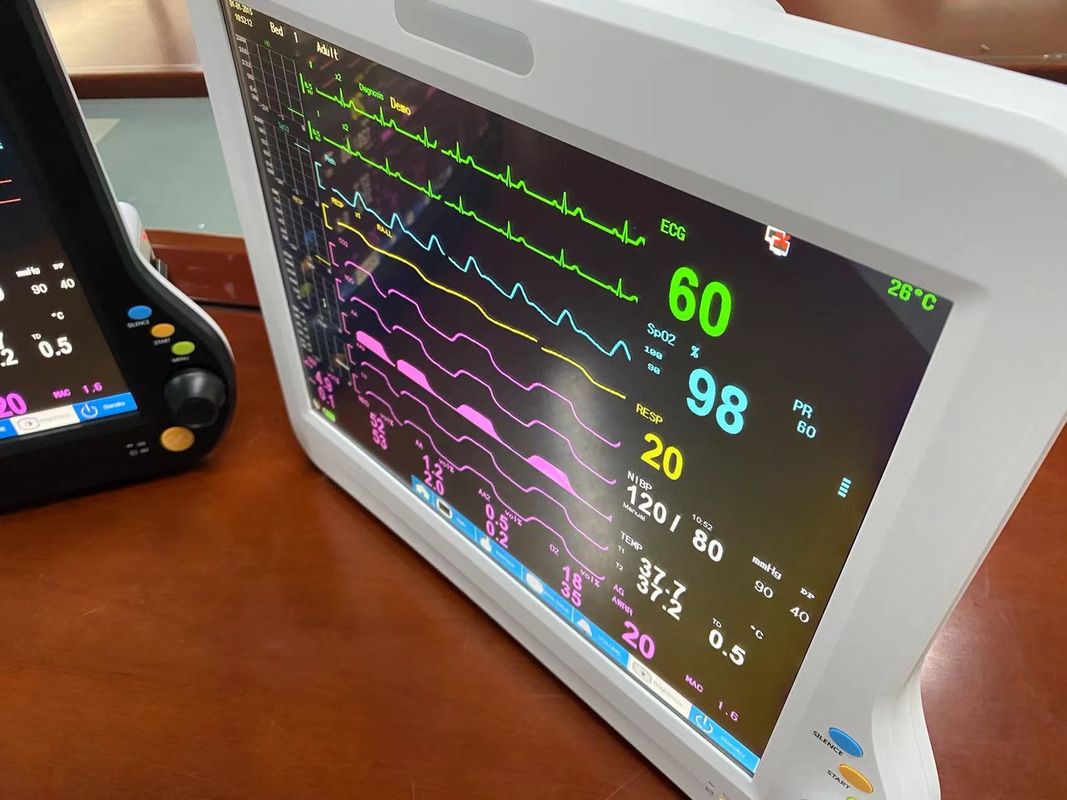

15" Anestheisa monitor Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring bedside cardiac monitor HighAcuity AM15
Anestheisa monitor Quick Details:
This anesthesia Monitor is used for monitoring, recording, and alarming of multiple physiological parameters of adults, pediatrics and neonates. You can view measurement trend graphs and alarming events to help you identify changes in the patient's physiological condition. The monitor can monitor ECG, RESP, TEMP, NIBP, SpO2 and PR.
Sidestream Anesthesia Gas Module Technical details:
| Temperature | -5~50℃ |
| Relative humidity | 10-90%(Non-condensing) |
| Atmospheric pressure | 55-115kpa |
| Power consumption | 150ma |
| Port and protocol | RS-232/ Standard E-8-1,38.4 kBaud,10 ms data interval (KM) or Customized according to customers' requirements |
| Co2 Measuring Range | 0~150mmHg |
| Accuracy | 0~40mmHg, inaccuracy≤± 2mmHg； 41~70mmHg, inaccuracy≤±5% of Reading； 70~100mmHg, inaccuracy≤± 8% of Reading； 101~150mmHg, inaccuracy≤±10% of Reading； |
| N₂O | |
| Measuring range | 0~100% |
| Inaccuracy | ±(2vol%+ 2% of Reading) |
| HAL, ENF, ISO | |
| Measuring range | 0-12% |
| Inaccuracy: | For 0~8%, ±(0,2 vol% + 5% of Reading) |
| For 8~12% | Unspecified |
| SEV | |
| Measuring range | 0~15% |
| Inaccuracy: | For 0~10%,±(0,2 vol%+5% of reading) |
| For 10~15% | unspecified |
| DES | |
| Measuring range | 0~25%； |
| Inaccuracy: |
For 0~18%,±(0,2 vol%+5% of reading); For 18~25%, unspecified. |
| Respiration Rate Range | 2~150 t/min |
| Inaccuracy | the bigger value of ±1% or 1t/min |
Anesthesia monitor Description:
The HighAcuity AM15 anesthesia monitor portable patient monitor is part of Hung-Kee’s premier patient monitoring solution designed to enhance patient care and support timely and accurate clinical assessment across Emergency, Critical Care, and Operating Room environments.
Anesthesia monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
Anesthesia monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for Anesthesia monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
4.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
5.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
6.Q:Why Should We Buy From You Rather than from other suppliers?
A: Producing Stable Quality And Affordable Products Is Our Purpose! Hung-Kee has been producing medical devices for more than 14 years, we have rich experience in production and maintenance.
7.Q: Are you trading company or manufacturer?
A: We are factory which has over 14 years' manufacturing experience.
