Product Details:
|
| Basic Functions: | ECG, SPO2, NIBP, Temp, Multi-Gas | Application: | Operation Theater |
|---|---|---|---|
| Model Number: | AM15 | Screen Dimension: | 15 TFT LCD Screen |
| Option Parameter: | 2ch-IBP, C.O., Suntech BP Module, Massimo SPO2 Module | Atmospheric Pressure: | 55-115kpa |
| Anesthesia Monitor Optional Accessories: | Aluminum Trolley, Wall Mount Stand | Product Name: | Multi Parameter Patient Monitor |
| Highlight: | Neonate ICU Cardiac Monitor,NIBP Multi Parameter Patient Monitor,LCD Screen Anesthesia Patient Monitor |
||
15" Anesthesia monitor Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring bedside cardiac monitor HighAcuity AM15
Anesthesia monitor Quick Details:
This anesthesia Monitor is used for monitoring, recording, and alarming of multiple physiological parameters of adults, pediatrics and neonates. You can view measurement trend graphs and alarming events to help you identify changes in the patient's physiological condition.
1. 15 inch TFT LCD screen, 6 standard parameters
2. 32-levels sound volume adjustment
3. real time display the waveform of ECG, or SPO2, Meanwhile, display the digital data of HR/PR, TEMP, RESP, SP02, NIBP
4. Three monitoring mode: Monitor, Operation, Diagnosis
5. Blood pressure measurement has three modes: Manual, Cycle, and Fast measurement

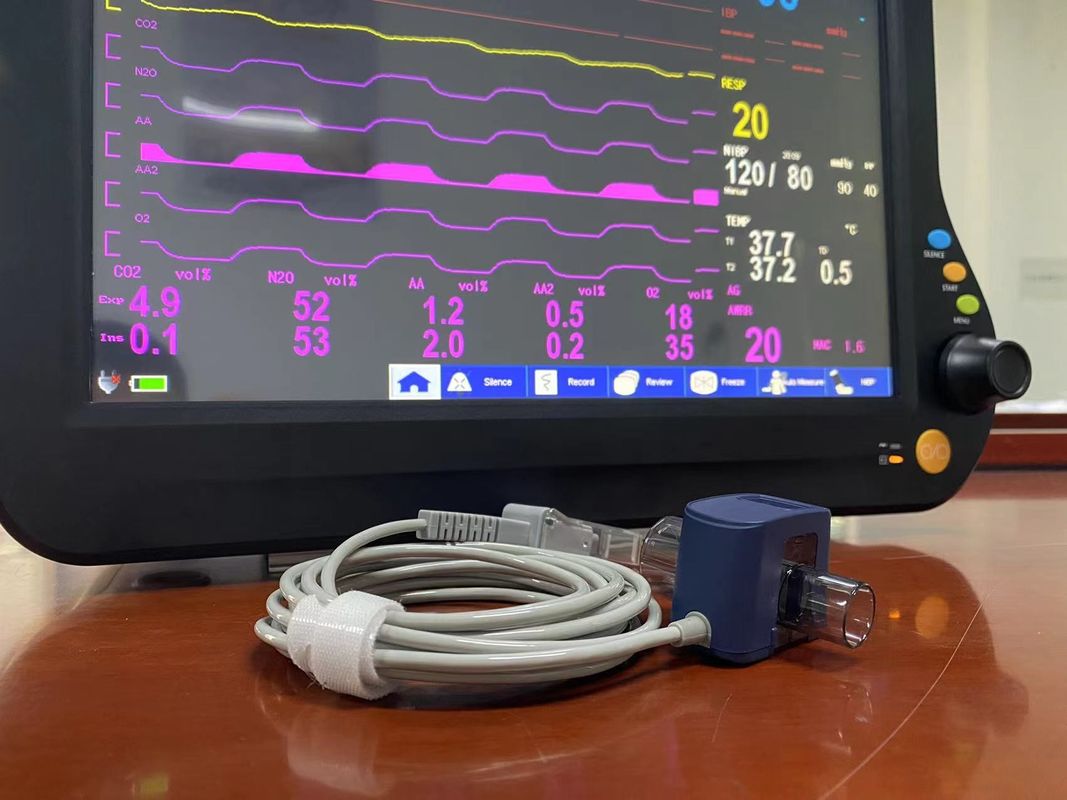

Sidestream Anesthesia Gas Module Technical details:
| Temperature | -5~50℃ |
| Relative humidity | 10-90%(Non-condensing) |
| Atmospheric pressure | 55-115kpa |
| Power consumption | 150ma |
| Port and protocol | RS-232/ Standard E-8-1,38.4 kBaud,10 ms data interval (KM) or Customized according to customers' requirements |
| Co2 Measuring Range | 0~150mmHg |
| Accuracy | 0~40mmHg, inaccuracy≤± 2mmHg； 41~70mmHg, inaccuracy≤±5% of Reading； 70~100mmHg, inaccuracy≤± 8% of Reading； 101~150mmHg, inaccuracy≤±10% of Reading； |
| N₂O | |
| Measuring range | 0~100% |
| Inaccuracy | ±(2vol%+ 2% of Reading) |
| HAL, ENF, ISO | |
| Measuring range | 0-12% |
| Inaccuracy: | For 0~8%, ±(0,2 vol% + 5% of Reading) |
| For 8~12% | Unspecified |
| SEV | |
| Measuring range | 0~15% |
| Inaccuracy: | For 0~10%,±(0,2 vol%+5% of reading) |
| For 10~15% | unspecified |
| DES | |
| Measuring range | 0~25%； |
| Inaccuracy: |
For 0~18%,±(0,2 vol%+5% of reading); For 18~25%, unspecified. |
| Respiration Rate Range | 2~150 t/min |
| Inaccuracy | the bigger value of ±1% or 1t/min |
Anesthesia monitor Description:
1. Durable
Monitor is made of ABS+PC Fireproof Materials.
2. Ultra-thin design
8.9cm thick, smaller footprint.
3. Low consumption
Adopted by the design of fanless, heat fast.
Anesthesia monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
Anesthesia monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for Anesthesia monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
4.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
5.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
6.Q:Why Should We Buy From You Rather than from other suppliers?
A: Producing Stable Quality And Affordable Products Is Our Purpose! Hung-Kee has been producing medical devices for more than 14 years, we have rich experience in production and maintenance.
7.Q: Are you trading company or manufacturer?
A: We are factory which has over 14 years' manufacturing experience.
8.Q: What's the MOQ?
A: 1 unit.
