Product Details:
|
| Features: | Portable, Compatible, High Accuracy, Stable And Reliable | Keywords: | Neonate Cardiac Patient Monitor |
|---|---|---|---|
| Model Number: | HighAcuity N8 | Usage: | For Monitoring Of Infant, Neonate |
| Color: | White | Functions: | Monitoring Parameters Of SPO2, NIBP, Temp, ECG, EtCO2, Apnea Wake-up |
| Screen Size: | 8.4 Inch TFT LCD | Options: | EtCO2 |
| Original: | P.R.China | OEM/ODM: | Accepted |
| Warranty: | 24 Months | ||
| Highlight: | Neonatal Cardiac Patient Monitor,8.4 Inch Vital Signs Monitors,Neonatal Cardiac Vital Signs Monitors |
||

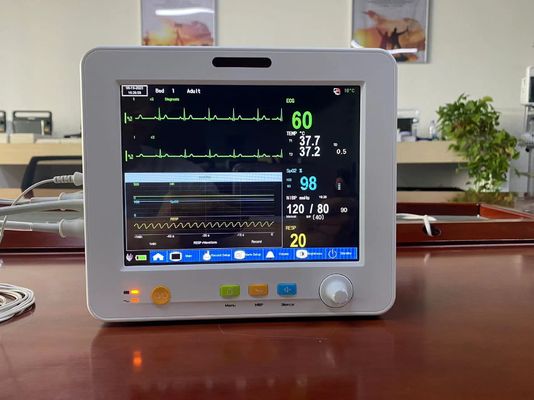

8.4 inch TFT LCD Screen neonate Cardiac patient monitor with ECG, SPO2, NIBP and Temp measurement vital signs monitors apnea wake-up function
Neonate Cardiac Patient Monitor Description:

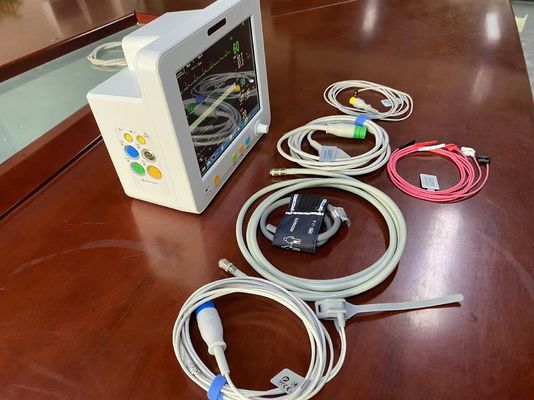

Light weight of 2.6KGs with an integral carry-handle, the light weight HighAcuity N8 is ideal as a portable monitor, standard Measurement capability of ECG, Suntch NIBP, SPO2, Temp, PR/HR for meeting your basic measuring requirement, optional Measurement capability of EtCO2, Masimo SPO2, Apnea wake-up, recorder, touch and CMS to meet your advanced monitoring requirements.
Quick Keys help caregivers to rapidly access frequently used functions such as menu, trend review, alarm settings and useful modes, including large fonts and mini-trends, powerful data storage for up to 48 hours full-disclosure, 72 hours of tabular and graphic trends, 400 NIBP measurement groups and 60 alarm events, “Fan-free design” allows for a quiet care environment. Preventing dust collection and reduces the risk of airborn contamination.
Alarm light is visible from 180 degrees, Ergonomic buttons enable quick access to commonly used functions, such as alarm silence, menu and start NIBP, The integral 2-trace thermal recorder provides waveform and data reports for diagnostic support, Li-ion battery allows for up to 2 hours of continuous monitoring.
1.Patient Care in One Touch
Thourgh its simple and intuitive touch screen display (option), HighAcuity N8 offers instant access to all functions and allows you to monitor your patients in a quicker and more convenient way.
2.Quick and Easy Monitoring
A compace and light weight design make HighAcuity N8 easy to carry while optional trolley, wall mounting bracket and bedrail mounting allow for convenient in-hospital transport.
3. HighAcuity N8 user-friendly interface is intuitive and easy to use
Dynamic mini-trends provide up to 72 hours of useful information on your patient’s status, and large font display offers a clear view of all vital signs and allows you to monitor your patient from a distance
4.Poweful for application
The centralized alarm system enable you to quickly review and modify alarm settings, the logical review of alarms, events, trends and full-disclosure data helps you to quickly and accurately assess a patient’s health situation. With LAN capability, your HighAcuity N8 can communicate with the Vita 1000 Central Monitoring System for easy monitoring.
Applications:
Based on different requirements on configurations, this 8.4 inch multi-parameter portable neonatal patient monitor specially designed for neonate monitoring purpose.
Customer Service:
1.Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2.Your inquiry related to our products or price will be replied in 24hrs.
3.Keep informing our customer production process.
4.Two-year warranty to main unit and one-year warranty to accessories.
5.We will provide online technical support for the whole life.
Technical Specificatons:
| 1.Patient Monitor Type | 3.10 Pacing pulse suppression | ||
| Standard electric shock proof | Class I electric shock proof equipment | When the pacing analysis switch is on, it can suppress pacing pulse within the following condition and will not affect the calculation of heart rate: | |
| EMC | Class A | extent | ±2 mV ～ ±700mV |
| Standard electric shock proof level | CF level for ECG(RESP); type BF for SpO2,NIBP; TEMP | width | 0.1ms ～ 2ms |
| Liquid-Proof level | common seal apparatus, does not have the function to prevent liquid entering | Rise time | 10µs ～ 100µs |
| Working method | Continuous | 3.11 Recovery time of base line | After Defibrillation< 3 second |
| 2.Patient Monitor Specification | 3.12 Signal’s range | ±8 mV (peak value ) | |
| 2.1 Working conditions | 3.13 Calibration signal | 1mV (peak value ),accuracy ±5% | |
| TEMP range | 3.14 ST measurement | ||
| working | 0 ～ 40℃ | Range | *-2.5mV ～ +2.5mV |
| transportation and storage | *-20 ～ 60℃ | Measurement accuracy | within -0.8 mV～+0.8mV, the tolerance is ±0.02mVor ±10% |
| Humidity | Without this range, there is no definition | ||
| working | ≤85 % | 4 RESP Specification | |
| transportation and storage | ≤93% | 4.1 Measurement | RA-LL Impedance |
| Altitude Range | 4.2 Detection range of respiratory impedance | 0.3～3Ω | |
| working | *-500 － 4,600m(-1,600 － 15,000feet) | 4.3 Base resistance range | 200～4000Ω |
| transportation and storage | *-500 － 13,100m(-1,600 － 43,000feet) | 4.4 Bandwidth | 0.1～2.5Hz |
| Electric specification | 100～250 VAC, 50/60 Hz, Maximum 70VA | 4.5 RESP Rate Range | |
| Fuss: T3.15A of displayer 15” | adult | 0～120 BrPM | |
| 2.2 Displaying Info | Pediatric and neonate | 0～150 BrPM | |
| Maximum 6 waveforms | Resolution | 1 BrPM | |
| One alarm light (yellow/red) | accuracy | ±2 BrPM | |
| One working indictor(green) | 4.6 Suffocation alarm | 10～40 seconds | |
| One battery charging indictor(yellow) | 5 SpO2 | ||
| Three corresponding sound alarming mode | 5.1 SPO2 | ||
| 2.3 Battery | range | 0～100% | |
| 14.8V/4400mAhLi-ion rechargeable battery | Resolution | 1% | |
| Under normal working condition, battery works for 100 minutes | Accuracy | 70～100%:±2 DIGIT | |
| It can works for 5 minutes after the first time power alarm | 0%～69%: Not defined | ||
| Maximum 8 hours charging time | 5.2 pulse rate | ||
| 2.4 Recorder | measurement range | 20～300bpm | |
| Paper’s width | 48mm | Resolution | 1bpm |
| Printing speed | 25 mm/S | accuracy | ±3bpm |
| Scanning waveform | 2 channels | 6 TEMP’s specification | |
| Recording type | 8 seconds real time recording | 6.1 TEMP transducers applied | YSI series, CYF series |
| 2.5 Recall | 6.2 Channel’s quantity | 2 channels | |
| Trend recall | 6.3 Measurement | ||
| Short trend | 1 hour, resolution: 1 second or 5 second | range | 0～50℃ |
| Long trend | 72hours ,resolution 1 minute,5minute or 10minute | Resolution | 0.1℃ |
| NIBP measurement recall | 400 pcs NIBP measured value’s recall | Accuracy | ±0.1℃, not include a sensor error |
| 3.ECG Specification | 7 NIBP specification | ||
| 3.1 Lead configuration | 7.1 Measurement | Pulse wave oscillation | |
| Standard 3 lead or 5 lead cable | 7.2 Working mode | manual/auto | |
| 3 lead | RA,LA,LL,lead method:I,II,III | 7.3 Interval of auto measurement | 1,2,3,4,5,10,15,30,60,90,120,180,240,480 minutes |
| 5-lead | RA,LA,LL,RL,V,lead method:I,II,III,aVR,aVL,aVF,V | 7.4 Measurement time of Continuous measurement mode | 5 minutes |
| 3.2 Gain | X0.25,X0.5,X1,X2,auto | 7.5 Pulse rate range | 30 ～ 250 bpm |
| 3.3 Heart Rate | 7.6 Measuring range and accuracy | ||
| Range | Range | ||
| Adult | 15 ～ 300bpm (beat/min) | ADULT | |
| Neonate/pediatric | 15 ～ 350 bpm(beat/min) | SYS | 40～270mmHg |
| Accuracy | ±1% or ±1bpm,choose the bigger one | DIA | 10～215mmHg |
| Resolution | 1 bpm(beat/min) | MEAN | 20～235mmHg |
| 3.4 Sensitivity | > 200 µV (peak-peak date ) | PEDIATRIC | |
| 3.5 Impedance | > 5 (Megohm) | SYS | 40～200mmHg |
| 3.6 Bandwidth | DIA | 10～150mmHg | |
| Diagnostic mode | 0.05～130Hz | MEAN | 20～165mmHg |
| Monitoring mode | 0.5～40Hz | NEONATE | |
| Operation mode | 1～20Hz | SYS | 35～135mmHg |
| 3.7 Common-mode rejection ratio | DIA | 10～100mmHg | |
| Diagnostic mode | > 90 dB | MEAN | 20～110mmHg |
| Monitoring mode | > 100 dB | Static Pressure Range | 0～300mmHg |
| Operation mode | > 100 dB | Static Pressure accuracy | ±3mmHg |
| 3.8 Electrode polarization voltage range | * ±300mV | blood pressure accuracy | |
| 3.9 Pacemaker pulse detection | Maximum average error | ±5mmHg | |
| It can test the following pace-maker pulse : | Maximum standard deviation | ±8mmHg | |
| Extent : | ±2 mV ～ ±700mV | 7.7 over-pressure protection | |
| width | 0.1ms ～ 2ms | adult mode | 300 mmHg±10 mmHg |
| Rise time | 10µs～100µs | pediatric mode | 240 mmHg±10 mmHg |
| neonate mode | 150 mmHg±10 mmHg | ||
