Pediatric Neonate Cardiac Patient Monitor For Diagnostic Monitoring OEM ODM

Pediatric Neonate Cardiac Patient Monitor For Diagnostic Monitoring OEM ODM
Pediatric Neonate Cardiac Patient Monitor For Diagnostic Monitoring OEM ODM

Large Image :  Pediatric Neonate Cardiac Patient Monitor For Diagnostic Monitoring OEM ODM

Product Details:
Place of Origin: P.R.China
Brand Name: Hung-Kee
Certification: IEC
Model Number: HighAcuity T12
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Carton Size: 405.0 x 375.00 x 310.0mm (1 pcs/CTN), 0.05CBM G.W.: 5.50Kgs, N.W.: 4.00Kgs
Delivery Time: 5 to 30 days
Payment Terms: T/T
Supply Ability: 2000 units per month

Pediatric Neonate Cardiac Patient Monitor For Diagnostic Monitoring OEM ODM

Description
Standard: ECG, NIBP, SPO2, 2Temp, PR/HR SKD/OEM/ODM: Acceptable
Dimension: 300.0 X 170.00 X 305.00mm Net Weight: 4.00 KGs
Optionals: 2IBP, EtCO2, Masimo SPo2, Suntech NIBP Function: Monitoring, Diagnostic, Operation
Application: Adult, Pediatric, Neonate
Highlight:

Pediatric Neonate Cardiac Patient Monitor

,

Cardiac Patient Monitor OEM

,

ODM neonate patient monitor

Cardiac patient monitor neonate patient monitor multi parameter patient monitor portable patient monitor



12.1” Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring cardiac monitor HighAcuity T12





Cardiac Patient Monitor Quick Details:



1. Multi-parameter patient monitor 12" TFT high resolution color display, enables maximum data visibility for the most critical parameters;

2. Real-time ST analysis, pacemaker detection, arrhythmia analysis;

3.168 hours list trend recall,400NIBP data storage,

4. 60 alarm event storage,168 hours waveform review;

5. anti high-frequency ESU and defibrillation protection;

6. full alarm features including sound, light, and message;

7. Voltage: 100~240V, 50~60Hz

8. Built-in rechargeable lithium battery, 2 working hours capacity





Hung-Kee Patient monitor Brochure 2022.01.pdf





Cardiac Patient Monitor Technical details:



Table Power Specifications

AC Power Parameter Specification
Mains power input 100V-240V~, 50 Hz/60 Hz,
Power input 50VA
Fuse F2AL 250V
Battery Power Parameter Specification
Capacity

Lithium ion

7.4 V/2200 mAh

Charging time 4 hours (to 90% battery capacity)
Typical operating time

3.5 hours (with ECG, SpO2 measurementand

NIBP measured every 15 minutes)

Charge mode Automatic (with charge protectionfeature) when the monitor isconnected to an AC power source.
Discharge protection When the monitor is powered bybattery, the monitor powers off if thebattery power is almost depleted.






( for more detailed technical data please refer to above PDF brochure)



Cardiac Patient Monitor Description:

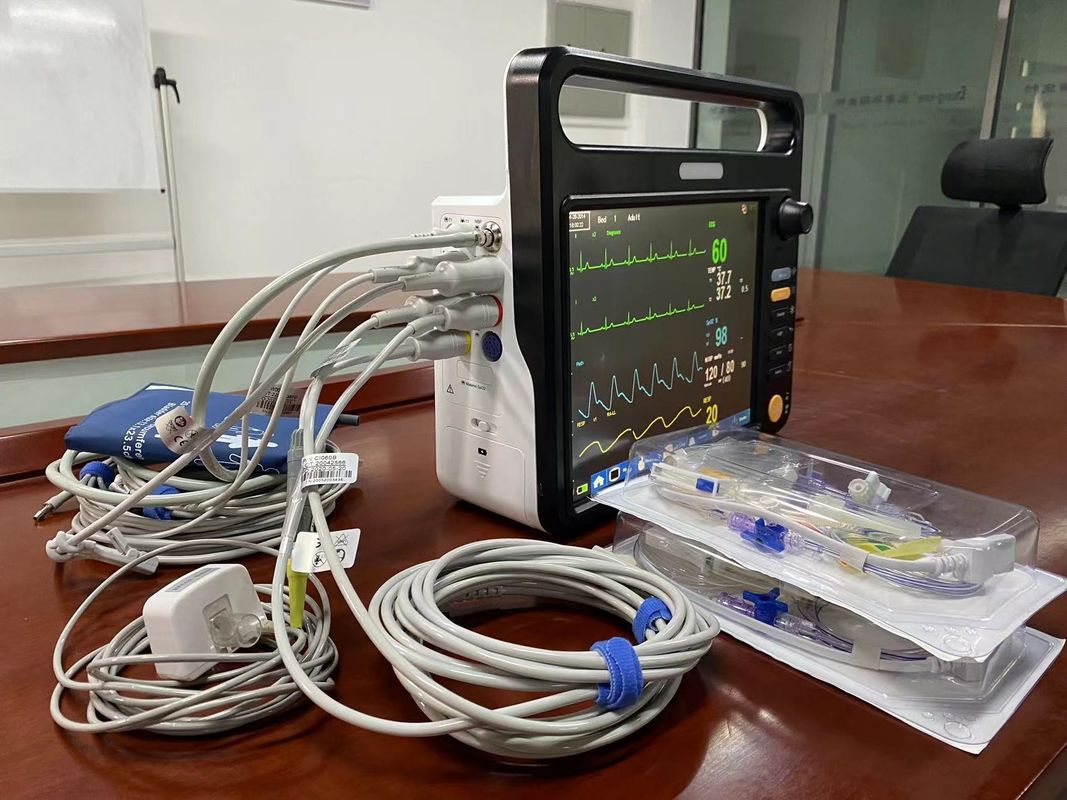

The HighAcuity T12 cardiac patient monitor is part of Hung-Kee’s premier patient monitoring solution designed to enhance patient care and support timely and accurate clinical assessment across Emergency, Critical Care, and Operating Room environments. The HighAcuity T12 offers an optional plug-and-play module structure for more advanced monitoring functions such as EtCO2, aiding clinicians to identify signs of patient deterioration due to respiratory distress, and other options like 2-ch IBP, C.O., Suntech BP and Masimo SPO2 modules.



1. New high-precision cardiac patient monitor

2. 12.1" color TFT display, up to 7 waveforms
3. Various interfaces: A single guide, standard, large font, all leads
4. Anti-ESU, anti- defibrillator

5. Thinner and lighter in design, convenient and portable for users

6. Real-time S-T segment analysis, pacemaker detection
7. Various interfaces: standard screen, trend screen, oxy CRG screen, big front screen.




Cardiac Patient Monitor Standard Accessories:



5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord



Cardiac Patient Monitor Optional Accessories:



Aluminum trolley, wall mount stand



FAQ for Cardiac Patient Monitor:



1.Q: How long is the warranty time?
A: 24 Months


2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.



3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.


4.Q: Do you work on OEM and SKD project?

A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.


5.Q: Where is your company located?

A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)



6.Q: Are you trading company or manufacturer?

A: We are factory which has over 14 years' manufacturing experience.



7.Q: What's the MOQ?

A: 1 unit.



8.Q: How long is your delivery time?

A: 5 - 30 days after order confirmed. Based on the item and quantity.



9.Q: What is your terms of payment?

A: T/T, Western Union or PayPal; Trade terms: CIF



10.Q: Where's your general loading port?

A: Shenzhen or Hongkong port, as your demand.



11.Q: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.



12.Q:For tenders, whether you can provide all necessary documents.

A. Yes. We win a lot of tenders by providing complete documents and helped our customers.



13.Q: How to deal with the faulty?

A: First, our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free within 2 warranty years. Secondly, our after-sales department will periodically follow up customers.



14.Q: How can get the shipping cost?

A: You tell us your destination port or delivery address, we check the Sea Freight or Air Freight or express for you based on your requirement.
