Product Details:
|
| Other Name: | Portable Cardiac Patient Monitors | Model Number: | PoloVision T12 |
|---|---|---|---|
| Apply For: | Monitoring Of Adult, Neonate, Infant And Neonate | Color: | White Or Black |
| Strengths: | Portable, Compatible, High Accuracy, Stable And Reliable | Parameters: | Monitoring Parameters Of SPO2, NIBP, Temp, ECG, EtCO2, Apnea Wake-up |
| Screen Size: | 12.1 Inch TFT LCD | Options: | EtCO2, C.O., 2IBP, Touch, Printer, CMS |
| Original: | P.R.China | OEM/ODM: | Accepted |
| Warranty: | 24 Months |

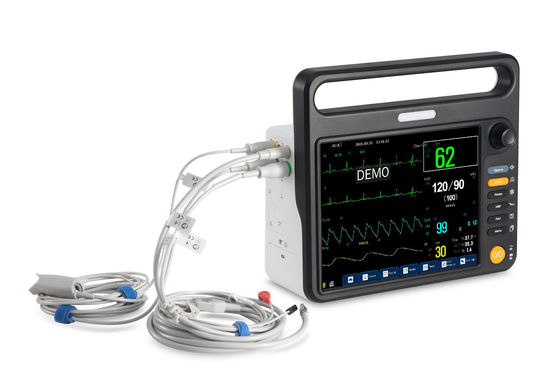

12.1 inch TFT LCD high-end cardiac patient monitors with with comprehensive measurements of ECG, SPO2,NIBP, Temp, Resp.
PoloVison T12 Cardiac Patient Monitors Features:
1.Works for adults, kids and babies; great for doctor's offices, OR/OT, ICU, CCU, NICU, clinics, and more.
2.12.1 inch, standard or semi-modular patient monitors are available, diverse options to meet the personalized needs of clinical applications.
3. Audible and visual alarm, you can adjust the alarm limit as you like.
4. Print out data, waveform, trend table, and trend graph.
5. User-friendly human-machine dialogue interface, with pop-up menu, dialogue box, knob, and more.
6. Innovative technology for electrosurgical interface; whether cutting or burning, ECG waveform and heart rate are not affected.
7. Store trend data for up to 350 hours, 2000 NIBP groups, USB data output function
8. Low power consumption design, with standby mode, rechargeable high-energy built-in battery
9. Shows Oxy CRG and 7-lead ECG waveform at the same time, large font mode, 5 customizable display formats.
10. Goertzel algorithm ensures fast and accurate NIBP measurement, making venipuncture easy.
11.ST segment analysis, bed to bed view, pacemaker, drug calculation, 34 types of arrhythmia analysis.
12. Network: the Monitor support layer 3 communications and automatic DHCP IP address allocation for both wired and wireless networks.
13. Be compatible with HIS and HL7 compliant.
14.Standard configurations: 5/3 leads ECG, SPO2, NIBP, Temp, HR/PR
15.Drug calculation, hemodynamic calculation and patient and Modified Early warning Clinical Score (MEWS)
16.Options: 2-Ch IBP, EtCO2 ( mainstream/ sidestream), 12leads ECG, Cardio-output, IoC, AG, Suntech BP, Masimo SPO2, defibrillation synchronization, Center monitoring system, nurse calling, touch, VGA, printer, bedrail clamp, wall mounting bracket, trolley
Technical Specificatons:
| 1.Patient Monitor Type | 3.10 Pacing pulse suppression | ||
| Standard electric shock proof | Class I electric shock proof equipment | When the pacing analysis switch is on, it can suppress pacing pulse within the following condition and will not affect the calculation of heart rate: | |
| EMC | Class A | extent | ±2 mV ～ ±700mV |
| Standard electric shock proof level | CF level for ECG(RESP); type BF for SpO2,NIBP; TEMP | width | 0.1ms ～ 2ms |
| Liquid-Proof level | common seal apparatus, does not have the function to prevent liquid entering | Rise time | 10µs ～ 100µs |
| Working method | Continuous | 3.11 Recovery time of base line | After Defibrillation< 3 second |
| 2.Patient Monitor Specification | 3.12 Signal’s range | ±8 mV (peak value ) | |
| 2.1 Working conditions | 3.13 Calibration signal | 1mV (peak value ),accuracy ±5% | |
| TEMP range | 3.14 ST measurement | ||
| working | 0 ～ 40℃ | Range | *-2.5mV ～ +2.5mV |
| transportation and storage | *-20 ～ 60℃ | Measurement accuracy | within -0.8 mV～+0.8mV, the tolerance is ±0.02mVor ±10% |
| Humidity | Without this range, there is no definition | ||
| working | ≤85 % | 4 RESP Specification | |
| transportation and storage | ≤93% | 4.1 Measurement | RA-LL Impedance |
| Altitude Range | 4.2 Detection range of respiratory impedance | 0.3～3Ω | |
| working | *-500 － 4,600m(-1,600 － 15,000feet) | 4.3 Base resistance range | 200～4000Ω |
| transportation and storage | *-500 － 13,100m(-1,600 － 43,000feet) | 4.4 Bandwidth | 0.1～2.5Hz |
| Electric specification | 100～250 VAC, 50/60 Hz, Maximum 70VA | 4.5 RESP Rate Range | |
| Fuss: T3.15A of displayer 15” | adult | 0～120 BrPM | |
| 2.2 Displaying Info | Pediatric and neonate | 0～150 BrPM | |
| Maximum 6 waveforms | Resolution | 1 BrPM | |
| One alarm light (yellow/red) | accuracy | ±2 BrPM | |
| One working indictor(green) | 4.6 Suffocation alarm | 10～40 seconds | |
| One battery charging indictor(yellow) | 5 SpO2 | ||
| Three corresponding sound alarming mode | 5.1 SPO2 | ||
| 2.3 Battery | range | 0～100% | |
| 14.8V/4400mAhLi-ion rechargeable battery | Resolution | 1% | |
| Under normal working condition, battery works for 100 minutes | Accuracy | 70～100%:±2 DIGIT | |
| It can works for 5 minutes after the first time power alarm | 0%～69%: Not defined | ||
| Maximum 8 hours charging time | 5.2 pulse rate | ||
| 2.4 Recorder | measurement range | 20～300bpm | |
| Paper’s width | 48mm | Resolution | 1bpm |
| Printing speed | 25 mm/S | accuracy | ±3bpm |
| Scanning waveform | 2 channels | 6 TEMP’s specification | |
| Recording type | 8 seconds real time recording | 6.1 TEMP transducers applied | YSI series, CYF series |
| 2.5 Recall | 6.2 Channel’s quantity | 2 channels | |
| Trend recall | 6.3 Measurement | ||
| Short trend | 1 hour, resolution: 1 second or 5 second | range | 0～50℃ |
| Long trend | 72hours ,resolution 1 minute,5minute or 10minute | Resolution | 0.1℃ |
| NIBP measurement recall | 400 pcs NIBP measured value’s recall | Accuracy | ±0.1℃, not include a sensor error |
| 3.ECG Specification | 7 NIBP specification | ||
| 3.1 Lead configuration | 7.1 Measurement | Pulse wave oscillation | |
| Standard 3 lead or 5 lead cable | 7.2 Working mode | manual/auto | |
| 3 lead | RA,LA,LL,lead method:I,II,III | 7.3 Interval of auto measurement | 1,2,3,4,5,10,15,30,60,90,120,180,240,480 minutes |
| 5-lead | RA,LA,LL,RL,V,lead method:I,II,III,aVR,aVL,aVF,V | 7.4 Measurement time of Continuous measurement mode | 5 minutes |
| 3.2 Gain | X0.25,X0.5,X1,X2,auto | 7.5 Pulse rate range | 30 ～ 250 bpm |
| 3.3 Heart Rate | 7.6 Measuring range and accuracy | ||
| Range | Range | ||
| Adult | 15 ～ 300bpm (beat/min) | ADULT | |
| Neonate/pediatric | 15 ～ 350 bpm(beat/min) | SYS | 40～270mmHg |
| Accuracy | ±1% or ±1bpm,choose the bigger one | DIA | 10～215mmHg |
| Resolution | 1 bpm(beat/min) | MEAN | 20～235mmHg |
| 3.4 Sensitivity | > 200 µV (peak-peak date ) | PEDIATRIC | |
| 3.5 Impedance | > 5 (Megohm) | SYS | 40～200mmHg |
| 3.6 Bandwidth | DIA | 10～150mmHg | |
| Diagnostic mode | 0.05～130Hz | MEAN | 20～165mmHg |
| Monitoring mode | 0.5～40Hz | NEONATE | |
| Operation mode | 1～20Hz | SYS | 35～135mmHg |
| 3.7 Common-mode rejection ratio | DIA | 10～100mmHg | |
| Diagnostic mode | > 90 dB | MEAN | 20～110mmHg |
| Monitoring mode | > 100 dB | Static Pressure Range | 0～300mmHg |
| Operation mode | > 100 dB | Static Pressure accuracy | ±3mmHg |
| 3.8 Electrode polarization voltage range | * ±300mV | blood pressure accuracy | |
| 3.9 Pacemaker pulse detection | Maximum average error | ±5mmHg | |
| It can test the following pace-maker pulse : | Maximum standard deviation | ±8mmHg | |
| Extent : | ±2 mV ～ ±700mV | 7.7 over-pressure protection | |
| width | 0.1ms ～ 2ms | adult mode | 300 mmHg±10 mmHg |
| Rise time | 10µs～100µs | pediatric mode | 240 mmHg±10 mmHg |
| neonate mode | 150 mmHg±10 mmHg | ||
Portable Cardiac Patient Monitor Description:
The Polovision T12 is a compact and portable multiparameter patient monitor designed for cardiac patients. It offers standard measurements of ECG, NIBP, SPO2, temperature, and PR/HR to meet basic monitoring requirements. Optional capabilities include 2-Ch IBP, EtCO2 ( mainstream/ sidestream), 12leads ECG, Cardio-output, IoC, AG, Suntech BP, Masimo SPO2, defibrillation synchronization, nurse calling, touch, VGA, printer, bedrail clamp, wall mounting bracket, trolley, and CMS to cater to advanced monitoring needs.
With its quick keys, caregivers can easily access frequently used functions such as menu navigation, trend review, alarm settings, and useful modes. The monitor features large fonts and mini-trends for clear visibility and offers powerful data storage capabilities. It can store up to 350 hours of full-disclosure data and 2000 NIBP measurement groups. The "Fan-free design" ensures a quiet environment, prevents dust collection, and reduces the risk of airborne contamination.
The alarm light on the monitor is visible from 180 degrees, and the ergonomic buttons allow caregivers to quickly access common functions such as alarm silence, menu navigation, and starting NIBP measurements. The integral 2-trace thermal recorder provides waveform and data reports for diagnostic support. The Li-ion battery enables up to 2 hours of continuous monitoring.
Key Features:
1. Patient Care in One Touch: The PoloVision T12 monitor offers a simple and intuitive touch screen display (optional) that provides instant access to all functions, enabling quicker and more convenient patient monitoring.
2. Quick and Easy Monitoring: The compact and lightweight design of the PoloVision T12 allows for easy portability. Optional accessories like trolleys, wall mounting brackets, and bedrail mounts offer convenient in-hospital transport.
3. User-Friendly Interface: The PoloVision T12 features a user-friendly interface that is intuitive and easy to navigate. Dynamic mini-trends provide up to 350 hours of useful information on the patient's status, while the large font display ensures clear visibility of vital signs, even from a distance.
4. Powerful Applications: The centralized alarm system allows for quick review and modification of alarm settings. The logical review of alarms, events, trends, and full-disclosure data aids in accurate and efficient assessment of a patient's health. LAN capability enables communication with the Via CMS01 Central Monitoring System, facilitating easy monitoring.
Cardiac Patient Monitors Applications:
Based on different requirements on configurations, with basic parameters this 12.1 inch multi-parameter portable patient monitor could be used in ICU, CCU, OR/OT, neonatal department, general ward in hospitals, clinics, medical examination centers, rehabilitation centers, nursing homes and other places.
Company Profile:
Hung-Kee (China) Electronic Technology Co., Ltd, is a prominent company specializing in the research, development, manufacturing, and marketing of innovative medical products for human and veterinary care. With a steadfast commitment to delivering cost-effective, high-quality solutions, Hung-Kee has emerged as a trusted name in the global medical industry.
Since its establishment in 2003, Hung-Kee has harnessed the expertise of a highly skilled R&D team with over 20 years of experience in the medical field. This invaluable knowledge has propelled the company to develop world-class medical products renowned for their exceptional quality and affordability. Hung-Kee's unwavering dedication to becoming the most competitive medical supplier globally has positioned it as the world's most valuable technology company in the industry.
Hung-Kee boasts two specialized R&D teams, one focusing on software development led by Mr. Kwok, a seasoned professional with 30 years of software development experience, and the other dedicated to hardware development led by Mr. Sheng, an expert with 19 years of hardware development experience. This collaboration has resulted in the acquisition of 10 practical technology patents and 5 appearance patents by 2021, with ongoing efforts to secure additional patents each year.
Currently, Hung-Kee offers a comprehensive range of 8 product lines. These include multi-parameter patient monitors, veterinary multi-parameter monitors, vital sign monitors, gas detectors, emergency devices, and telemedicine solutions.
Each product line showcases Hung-Kee's commitment to innovation and addresses the diverse needs of healthcare professionals worldwide.
Hung-Kee aims to be recognized as a trusted supplier of medical devices, providing exceptional OEM, ODM, and SKD services. The company's focus is on establishing long-term partnerships built on reliability and mutual success. With a vision for the future, Hung-Kee continues to develop new products with fully owned intellectual property, creating added value for its esteemed partners globally.
The entire team at Hung-Kee takes great pride in their 19 years of development, a testament to their unwavering determination to be the world's leading provider of cost-effective, high-quality medical solutions.
Factory tour:
R&D:
Quality Certificate:
Customer Service:
1. Prior to finalizing a contract with our customers, we offer comprehensive analysis and professional solutions based on project information provided by the customer. Our goal is to deliver the optimal solution that meets their specific requirements.
2. We are committed to providing prompt responses to any inquiries regarding our products or pricing. Within 24 hours of receiving your inquiry, we will ensure that you receive a detailed and timely response.
3. We value transparency and strive to keep our customers informed about the progress of their production. Throughout the manufacturing process, we will provide regular updates on the status of their order, ensuring that they are well-informed at every step.
4. We stand behind the quality of our products. As such, we offer a two-year warranty for the main unit and a one-year warranty for accessories. This warranty ensures that our customers have peace of mind and can rely on the durability and functionality of our products.
5. Our commitment to customer satisfaction extends beyond the initial purchase. We provide online technical support for the entire lifespan of our products. Our dedicated team of experts is available to assist with any technical queries or issues that may arise, ensuring that our customers receive ongoing support and assistance.
