Product Details:
|
| Other Name: | Portable Cardiac Patient Monitors | Model Number: | PoloVision T12 |
|---|---|---|---|
| Applications: | Homecare, Clinic, General Ward, ICU, CCU, Neonatal Department | Color: | White Or Black |
| Advantages: | Strong Functions, High Accuracy, Stable And Reliable | Functions: | Monitoring Parameters Of SPO2, NIBP, Temp, ECG, EtCO2, Apnea Wake-up |
| Screen Size: | 12.1 Inch TFT LCD | Options: | EtCO2, C.O., 2IBP, Touch, Printer, CMS |
| Original: | P.R.China | OEM/ODM: | Accepted |
| Warranty: | 24 Months |

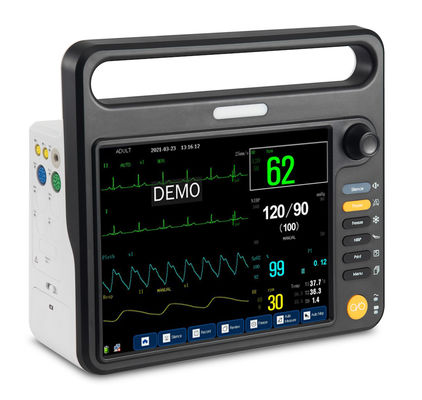

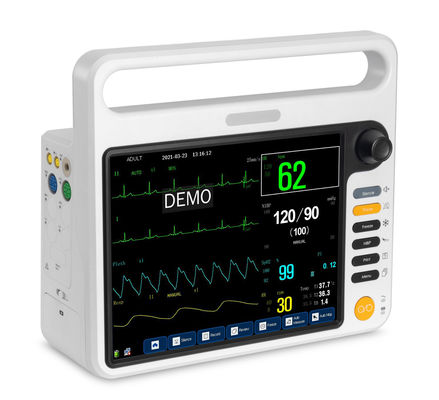

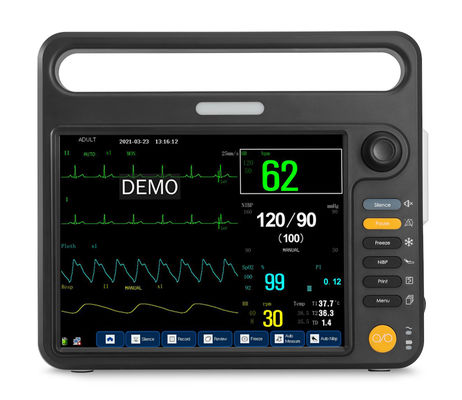

12.1 inch portable cardiac patient monitors with HL7 compatible, USB dataouput functions, vital sings monitoring
PoloVison T12 Portable Cardiac Patient Monitors Features:
Technical Specificatons:
| 1.Patient Monitor Type | 3.10 Pacing pulse suppression | ||
| Standard electric shock proof | Class I electric shock proof equipment | When the pacing analysis switch is on, it can suppress pacing pulse within the following condition and will not affect the calculation of heart rate: | |
| EMC | Class A | extent | ±2 mV ～ ±700mV |
| Standard electric shock proof level | CF level for ECG(RESP); type BF for SpO2,NIBP; TEMP | width | 0.1ms ～ 2ms |
| Liquid-Proof level | common seal apparatus, does not have the function to prevent liquid entering | Rise time | 10µs ～ 100µs |
| Working method | Continuous | 3.11 Recovery time of base line | After Defibrillation< 3 second |
| 2.Patient Monitor Specification | 3.12 Signal’s range | ±8 mV (peak value ) | |
| 2.1 Working conditions | 3.13 Calibration signal | 1mV (peak value ),accuracy ±5% | |
| TEMP range | 3.14 ST measurement | ||
| working | 0 ～ 40℃ | Range | *-2.5mV ～ +2.5mV |
| transportation and storage | *-20 ～ 60℃ | Measurement accuracy | within -0.8 mV～+0.8mV, the tolerance is ±0.02mVor ±10% |
| Humidity | Without this range, there is no definition | ||
| working | ≤85 % | 4 RESP Specification | |
| transportation and storage | ≤93% | 4.1 Measurement | RA-LL Impedance |
| Altitude Range | 4.2 Detection range of respiratory impedance | 0.3～3Ω | |
| working | *-500 － 4,600m(-1,600 － 15,000feet) | 4.3 Base resistance range | 200～4000Ω |
| transportation and storage | *-500 － 13,100m(-1,600 － 43,000feet) | 4.4 Bandwidth | 0.1～2.5Hz |
| Electric specification | 100～250 VAC, 50/60 Hz, Maximum 70VA | 4.5 RESP Rate Range | |
| Fuss: T3.15A of displayer 15” | adult | 0～120 BrPM | |
| 2.2 Displaying Info | Pediatric and neonate | 0～150 BrPM | |
| Maximum 6 waveforms | Resolution | 1 BrPM | |
| One alarm light (yellow/red) | accuracy | ±2 BrPM | |
| One working indictor(green) | 4.6 Suffocation alarm | 10～40 seconds | |
| One battery charging indictor(yellow) | 5 SpO2 | ||
| Three corresponding sound alarming mode | 5.1 SPO2 | ||
| 2.3 Battery | range | 0～100% | |
| 14.8V/4400mAhLi-ion rechargeable battery | Resolution | 1% | |
| Under normal working condition, battery works for 100 minutes | Accuracy | 70～100%:±2 DIGIT | |
| It can works for 5 minutes after the first time power alarm | 0%～69%: Not defined | ||
| Maximum 8 hours charging time | 5.2 pulse rate | ||
| 2.4 Recorder | measurement range | 20～300bpm | |
| Paper’s width | 48mm | Resolution | 1bpm |
| Printing speed | 25 mm/S | accuracy | ±3bpm |
| Scanning waveform | 2 channels | 6 TEMP’s specification | |
| Recording type | 8 seconds real time recording | 6.1 TEMP transducers applied | YSI series, CYF series |
| 2.5 Recall | 6.2 Channel’s quantity | 2 channels | |
| Trend recall | 6.3 Measurement | ||
| Short trend | 1 hour, resolution: 1 second or 5 second | range | 0～50℃ |
| Long trend | 72hours ,resolution 1 minute,5minute or 10minute | Resolution | 0.1℃ |
| NIBP measurement recall | 400 pcs NIBP measured value’s recall | Accuracy | ±0.1℃, not include a sensor error |
| 3.ECG Specification | 7 NIBP specification | ||
| 3.1 Lead configuration | 7.1 Measurement | Pulse wave oscillation | |
| Standard 3 lead or 5 lead cable | 7.2 Working mode | manual/auto | |
| 3 lead | RA,LA,LL,lead method:I,II,III | 7.3 Interval of auto measurement | 1,2,3,4,5,10,15,30,60,90,120,180,240,480 minutes |
| 5-lead | RA,LA,LL,RL,V,lead method:I,II,III,aVR,aVL,aVF,V | 7.4 Measurement time of Continuous measurement mode | 5 minutes |
| 3.2 Gain | X0.25,X0.5,X1,X2,auto | 7.5 Pulse rate range | 30 ～ 250 bpm |
| 3.3 Heart Rate | 7.6 Measuring range and accuracy | ||
| Range | Range | ||
| Adult | 15 ～ 300bpm (beat/min) | ADULT | |
| Neonate/pediatric | 15 ～ 350 bpm(beat/min) | SYS | 40～270mmHg |
| Accuracy | ±1% or ±1bpm,choose the bigger one | DIA | 10～215mmHg |
| Resolution | 1 bpm(beat/min) | MEAN | 20～235mmHg |
| 3.4 Sensitivity | > 200 µV (peak-peak date ) | PEDIATRIC | |
| 3.5 Impedance | > 5 (Megohm) | SYS | 40～200mmHg |
| 3.6 Bandwidth | DIA | 10～150mmHg | |
| Diagnostic mode | 0.05～130Hz | MEAN | 20～165mmHg |
| Monitoring mode | 0.5～40Hz | NEONATE | |
| Operation mode | 1～20Hz | SYS | 35～135mmHg |
| 3.7 Common-mode rejection ratio | DIA | 10～100mmHg | |
| Diagnostic mode | > 90 dB | MEAN | 20～110mmHg |
| Monitoring mode | > 100 dB | Static Pressure Range | 0～300mmHg |
| Operation mode | > 100 dB | Static Pressure accuracy | ±3mmHg |
| 3.8 Electrode polarization voltage range | * ±300mV | blood pressure accuracy | |
| 3.9 Pacemaker pulse detection | Maximum average error | ±5mmHg | |
| It can test the following pace-maker pulse : | Maximum standard deviation | ±8mmHg | |
| Extent : | ±2 mV ～ ±700mV | 7.7 over-pressure protection | |
| width | 0.1ms ～ 2ms | adult mode | 300 mmHg±10 mmHg |
| Rise time | 10µs～100µs | pediatric mode | 240 mmHg±10 mmHg |
| neonate mode | 150 mmHg±10 mmHg | ||
Portable Cardiac Patient Monitor Description:
The Polovision T12 is a compact and portable multiparameter patient monitor specifically designed for cardiac patients. It provides essential measurements such as ECG, NIBP, SPO2, temperature, and PR/HR to fulfill basic monitoring requirements. Additionally, it offers optional features including 2-Ch IBP, EtCO2 (mainstream/sidestream), 12-lead ECG, Cardio-output, IoC, AG, Suntech BP, Masimo SPO2, defibrillation synchronization, nurse calling, touch screen, VGA output, printer, bedrail clamp, wall mounting bracket, trolley, and CMS to meet advanced monitoring needs.
With its quick keys, caregivers can easily access frequently used functions such as menu navigation, trend review, alarm settings, and useful modes. The monitor features large fonts and mini-trends for clear visibility and offers powerful data storage capabilities. It can store up to 350 hours of full-disclosure data and 2000 NIBP measurement groups. The "Fan-free design" ensures a quiet environment, prevents dust collection, and reduces the risk of airborne contamination.
The alarm light on the monitor is visible from 180 degrees, and the ergonomic buttons allow caregivers to quickly access common functions such as alarm silence, menu navigation, and starting NIBP measurements. The integral 2-trace thermal recorder provides waveform and data reports for diagnostic support. The Li-ion battery enables up to 2 hours of continuous monitoring.
Key Features:
1. One-Touch Patient Care: The PoloVision T12 monitor simplifies patient monitoring with its user-friendly touch screen display (optional), providing instant access to all functions and ensuring efficient and convenient monitoring.
2. Quick and Easy Monitoring: The PoloVision T12 is designed to be compact and lightweight, allowing for easy portability. Optional accessories such as trolleys, wall mounting brackets, and bedrail mounts offer convenient transport within the hospital setting.
3. Intuitive User Interface: With its user-friendly interface, the PoloVision T12 ensures ease of navigation. Dynamic mini-trends provide up to 350 hours of valuable patient information, while the large font display ensures clear visibility of vital signs, even from a distance.
4. Powerful Applications: The centralized alarm system allows for quick review and customization of alarm settings. The comprehensive review of alarms, events, trends, and full-disclosure data aids in accurate and efficient patient assessment. LAN capability enables seamless communication with the Via CMS01 Central Monitoring System, facilitating easy monitoring.
Applications:
This 12.1-inch portable multi-parameter patient monitor is versatile and can be used in a variety of healthcare settings. These settings include ICU, CCU, operating rooms/theatres, neonatal departments, general hospital wards, clinics, medical examination centers, rehabilitation centers, nursing homes, and similar healthcare facilities. The monitor's configuration can be tailored to meet the specific requirements of each setting.
Company Profile:
Hung-Kee (China) Electronic Technology Co., Ltd, is a prominent company specializing in the research, development, manufacturing, and marketing of innovative medical products for human and veterinary care. With a steadfast commitment to delivering cost-effective, high-quality solutions, Hung-Kee has emerged as a trusted name in the global medical industry.
Since its establishment in 2003, Hung-Kee has harnessed the expertise of a highly skilled R&D team with over 20 years of experience in the medical field. This invaluable knowledge has propelled the company to develop world-class medical products renowned for their exceptional quality and affordability. Hung-Kee's unwavering dedication to becoming the most competitive medical supplier globally has positioned it as the world's most valuable technology company in the industry.
Hung-Kee boasts two specialized R&D teams, one focusing on software development led by Mr. Kwok, a seasoned professional with 30 years of software development experience, and the other dedicated to hardware development led by Mr. Sheng, an expert with 19 years of hardware development experience. This collaboration has resulted in the acquisition of 10 practical technology patents and 5 appearance patents by 2021, with ongoing efforts to secure additional patents each year.
Currently, Hung-Kee offers a comprehensive range of 8 product lines. These include multi-parameter patient monitors, veterinary multi-parameter monitors, vital sign monitors, gas detectors, emergency devices, and telemedicine solutions.
Each product line showcases Hung-Kee's commitment to innovation and addresses the diverse needs of healthcare professionals worldwide.
Hung-Kee aims to be recognized as a trusted supplier of medical devices, providing exceptional OEM, ODM, and SKD services. The company's focus is on establishing long-term partnerships built on reliability and mutual success. With a vision for the future, Hung-Kee continues to develop new products with fully owned intellectual property, creating added value for its esteemed partners globally.
The entire team at Hung-Kee takes great pride in their 19 years of development, a testament to their unwavering determination to be the world's leading provider of cost-effective, high-quality medical solutions.
Factory tour:
R&D:
Quality Certificate:
Customer Service:
1.Prior to finalising a contract with our customers, we offer a thorough analysis and professional solutions based on the project information provided by the customer. Our aim is to deliver the optimal solution that meets their specific requirements.
2.We are dedicated to providing timely responses to any inquiries regarding our products or pricing. Within 24 hours of receiving your inquiry, we will ensure that you receive a detailed and prompt response.
3.Transparency is highly valued, and we strive to keep our customers informed about the progress of their production. Throughout the manufacturing process, we will provide regular updates on the status of their order, ensuring that they are well-informed at every stage.
4.We have full confidence in the quality of our products. Therefore, we offer a two-year warranty for the main unit and a one-year warranty for accessories. This warranty guarantees that our customers can have peace of mind and rely on the durability and functionality of our products.
5.Our commitment to customer satisfaction goes beyond the initial purchase. We provide online technical support for the entire lifespan of our products. Our dedicated team of experts is available to assist with any technical queries or issues that may arise, ensuring that our customers receive ongoing support and assistance.
